Vane-key Brass Padlock (Square-shape)
Square-shape solid brass padlock with vane-key design for reliable security
Product Photo

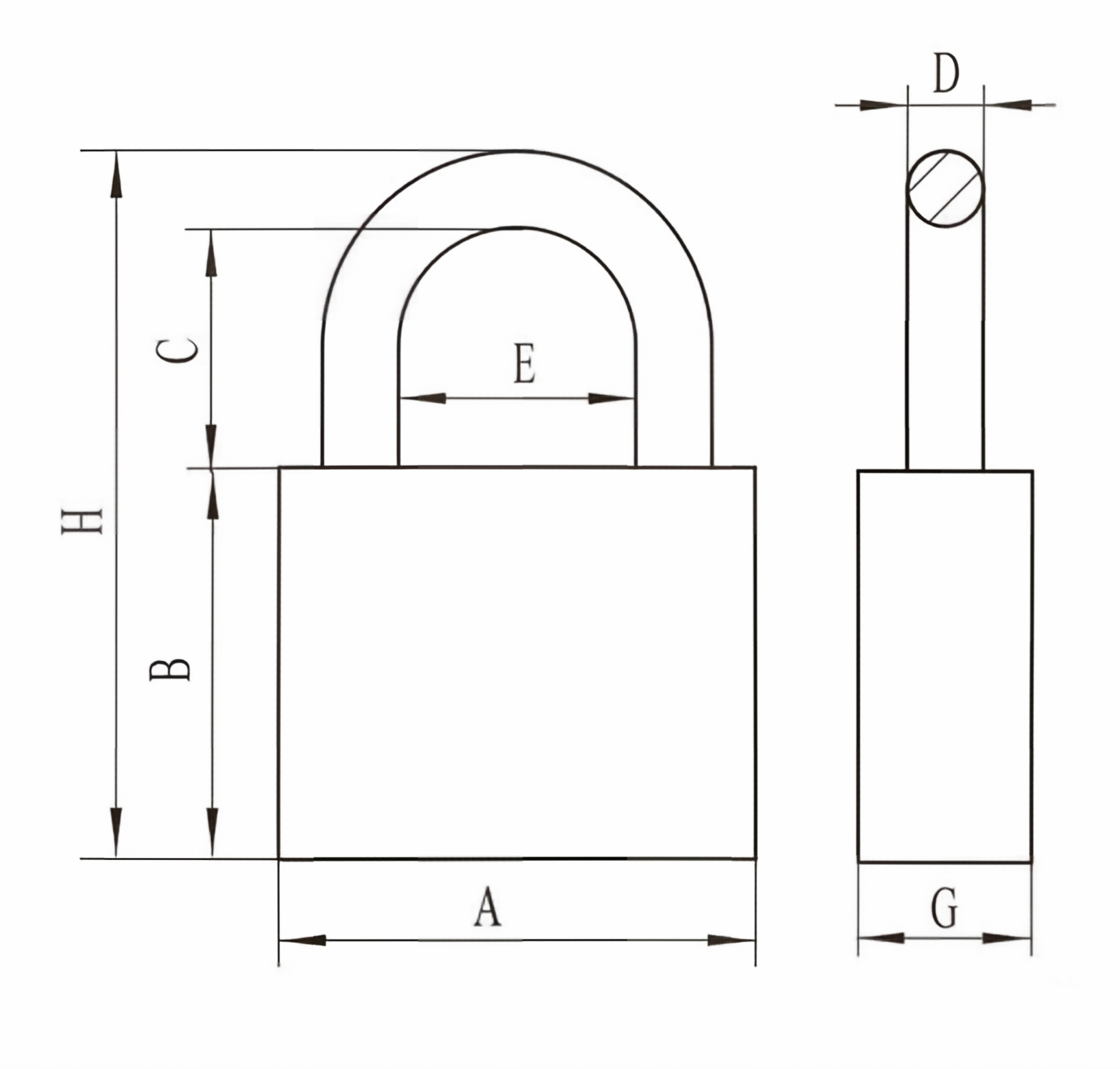

Technical Dimension Diagram

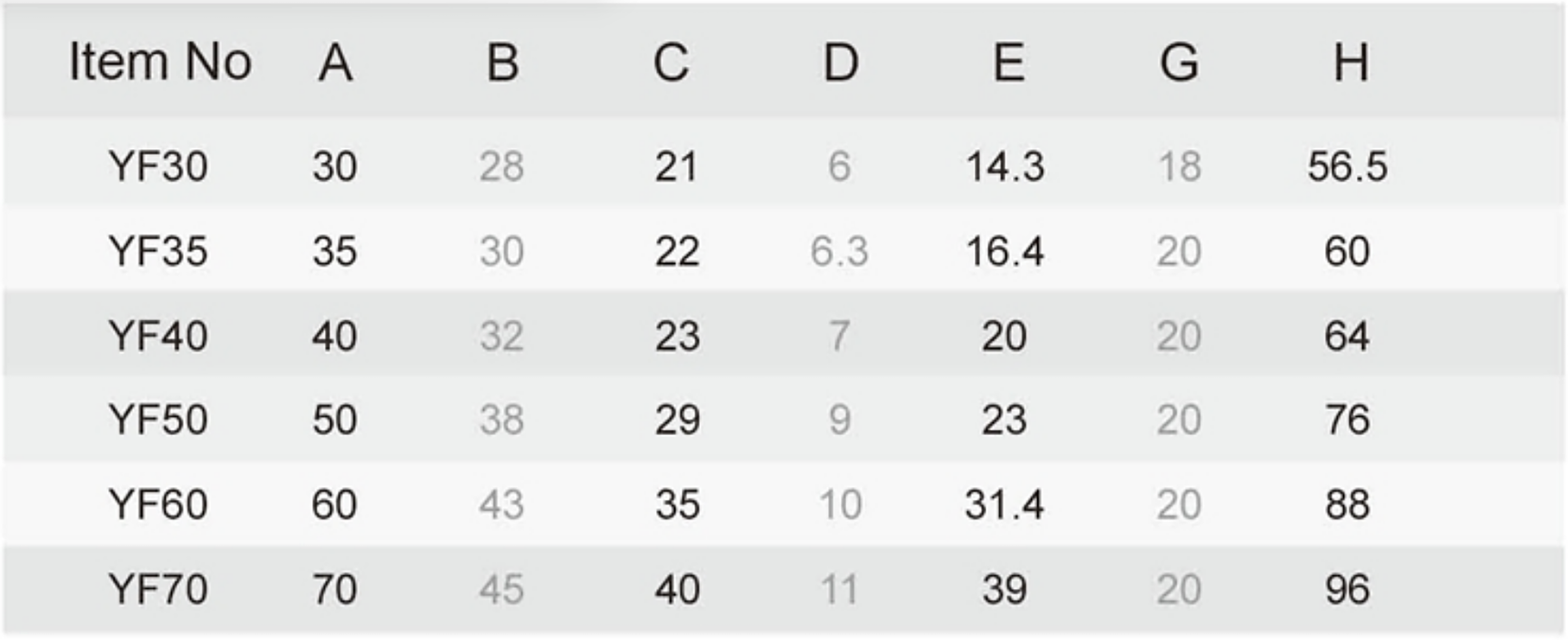

Specification Table - YF Series

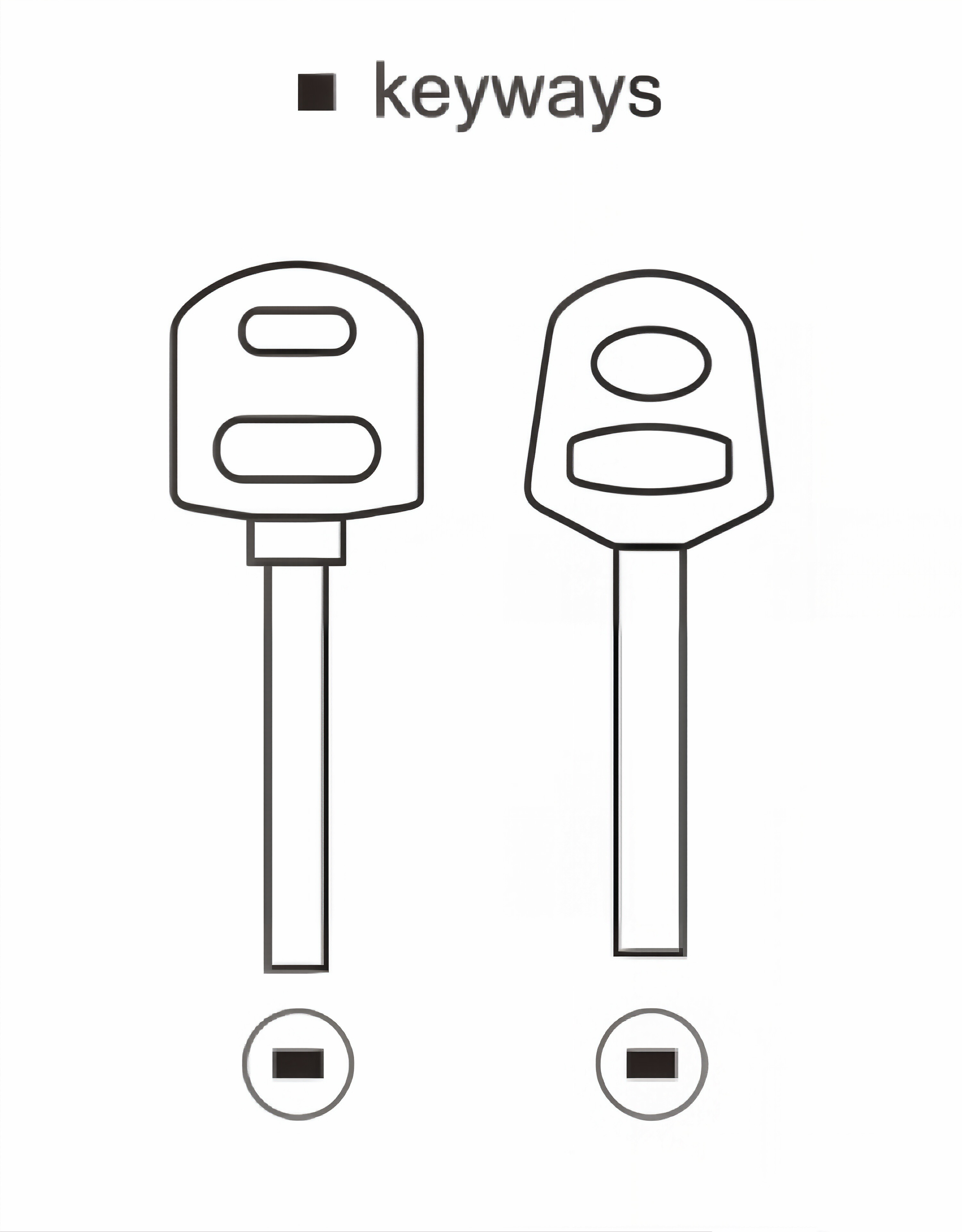

Key Ways Configuration
Product Overview
Square-shape solid brass padlock with vane-key design, solid brass bodies & cylinders, steel ball locking mechanism, all discs are brass, 3 pcs brass Vane keys.
Technical Specifications
| Item No | A | B | C | D | E | G | H | W(g) |
|---|---|---|---|---|---|---|---|---|
| YF30 | 30 | 28 | 21 | 6 | 14.3 | 18 | 56.5 | 95 |
| YF35 | 35 | 30 | 22 | 6.3 | 16.4 | 20 | 60 | 125 |
| YF40 | 40 | 32 | 23 | 7 | 20 | 20 | 64 | 165 |
| YF50 | 50 | 38 | 29 | 9 | 23 | 20 | 76 | 245 |
| YF60 | 60 | 43 | 35 | 10 | 31.4 | 20 | 88 | 385 |
| YF70 | 70 | 45 | 40 | 11 | 39 | 20 | 96 | 520 |
* All dimensions are in millimeters (mm). Weight is in grams (g).
