Stainless-steel Padlocks
Premium stainless steel padlock with mirror polish finish for marine and industrial applications
Product Photo

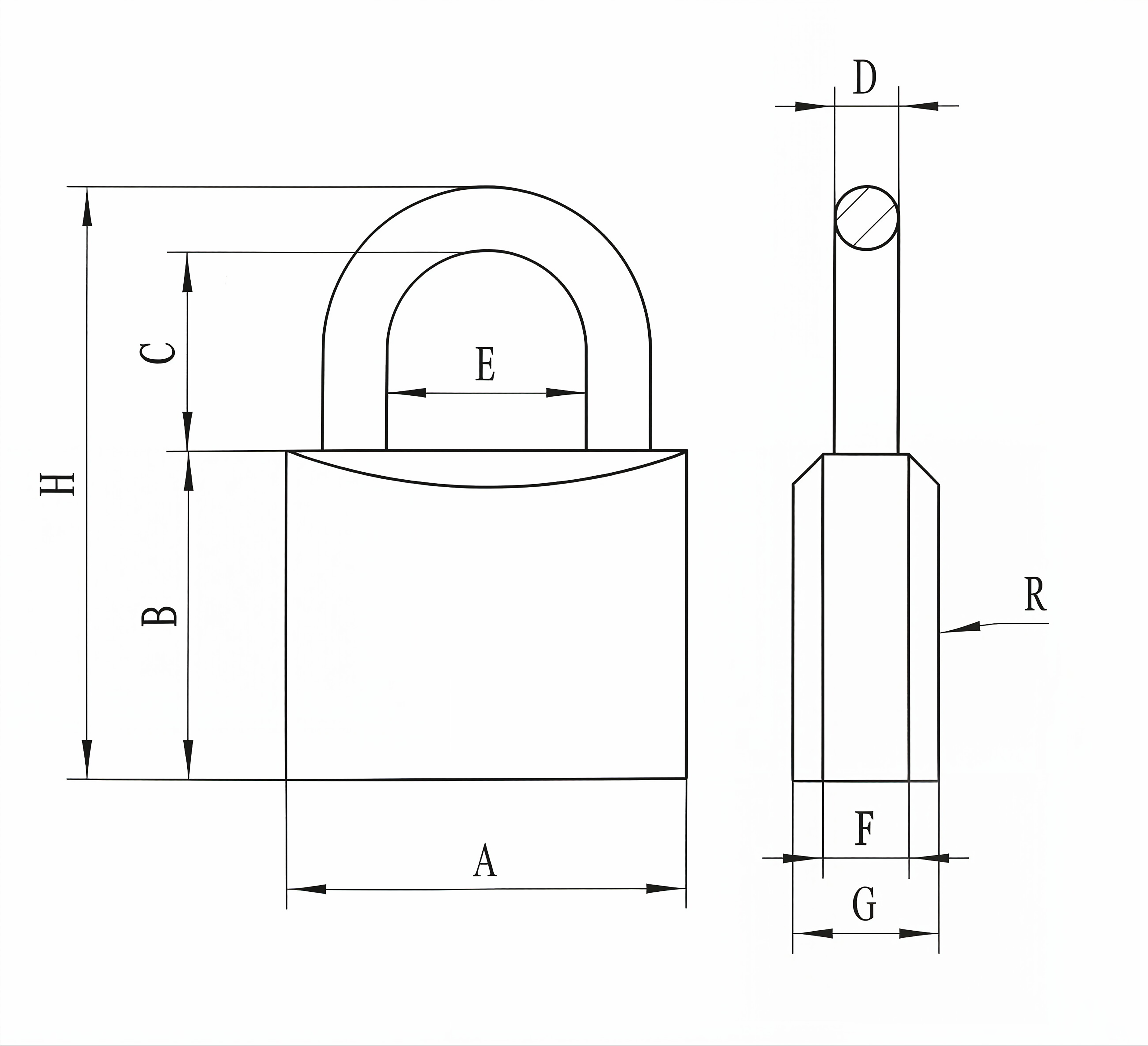

Technical Dimension Diagram

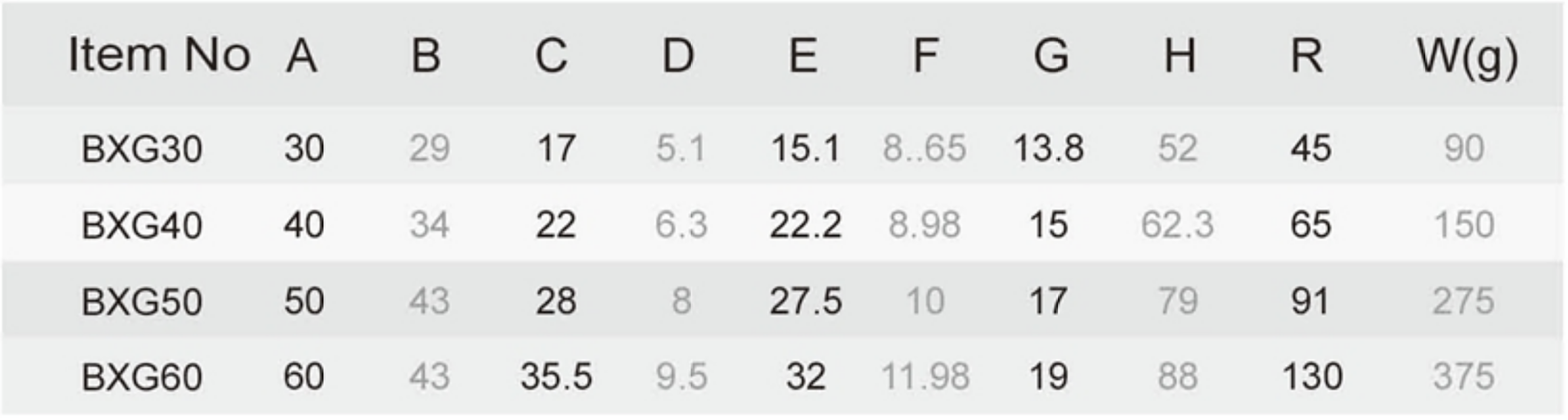

Specification Table - BXG Series

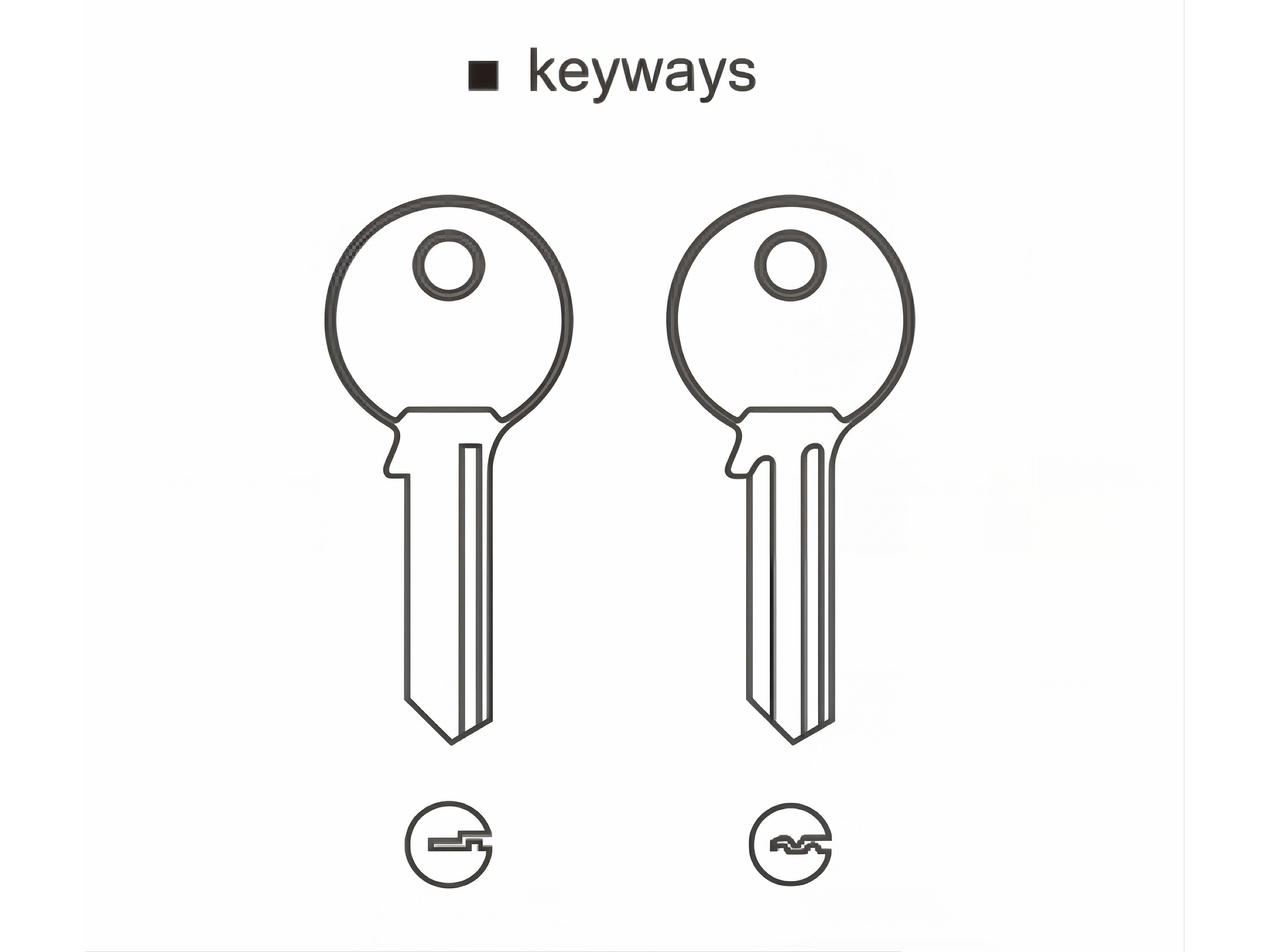

Key Ways Configuration
Product Overview
Premium stainless steel padlock with mirror polish finish, solid brass bodies & cylinders, stainless steel shackles, salt-spray testing (96 hours), double-locking bolts for marine applications.
Technical Specifications
| Item No | A | B | C | D | E | F | G | H | W(g) | R |
|---|---|---|---|---|---|---|---|---|---|---|
| BXG30 | 30 | 29 | 17 | 5.1 | 15.1 | 8.65 | 13.8 | 52 | 90 | 45 |
| BXG40 | 40 | 34 | 22 | 6.3 | 22.2 | 8.98 | 15 | 62.3 | 150 | 65 |
| BXG50 | 50 | 43 | 28 | 8 | 27.5 | 10 | 17 | 79 | 275 | 91 |
| BXG60 | 60 | 43 | 35.5 | 9.5 | 32 | 11.98 | 19 | 88 | 375 | 130 |
* All dimensions are in millimeters (mm). Weight is in grams (g).
