Rectangular Brass Padlock with Armored-steel Jacket
Rectangular padlock with armored-steel jacket

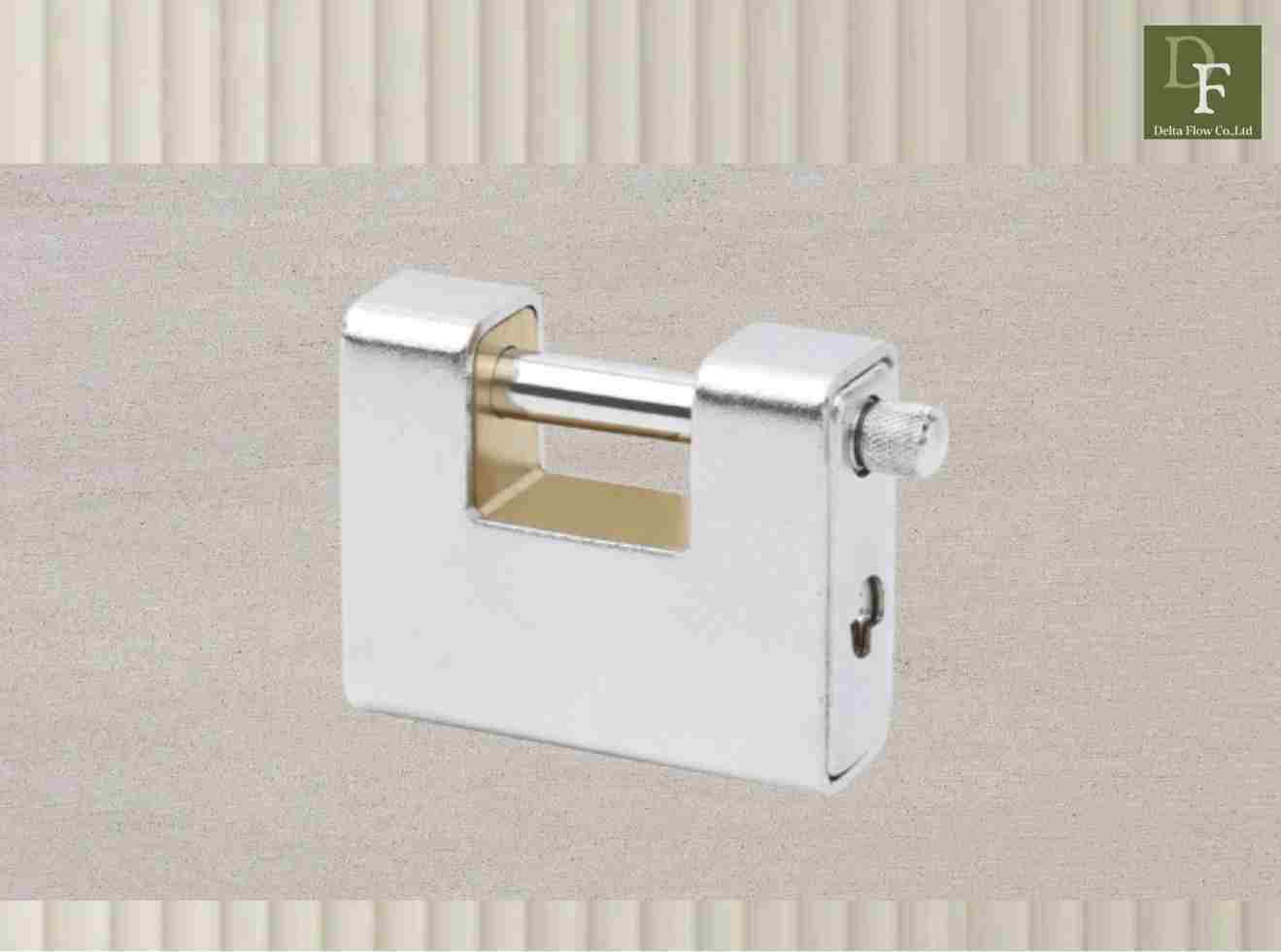

Product Photo

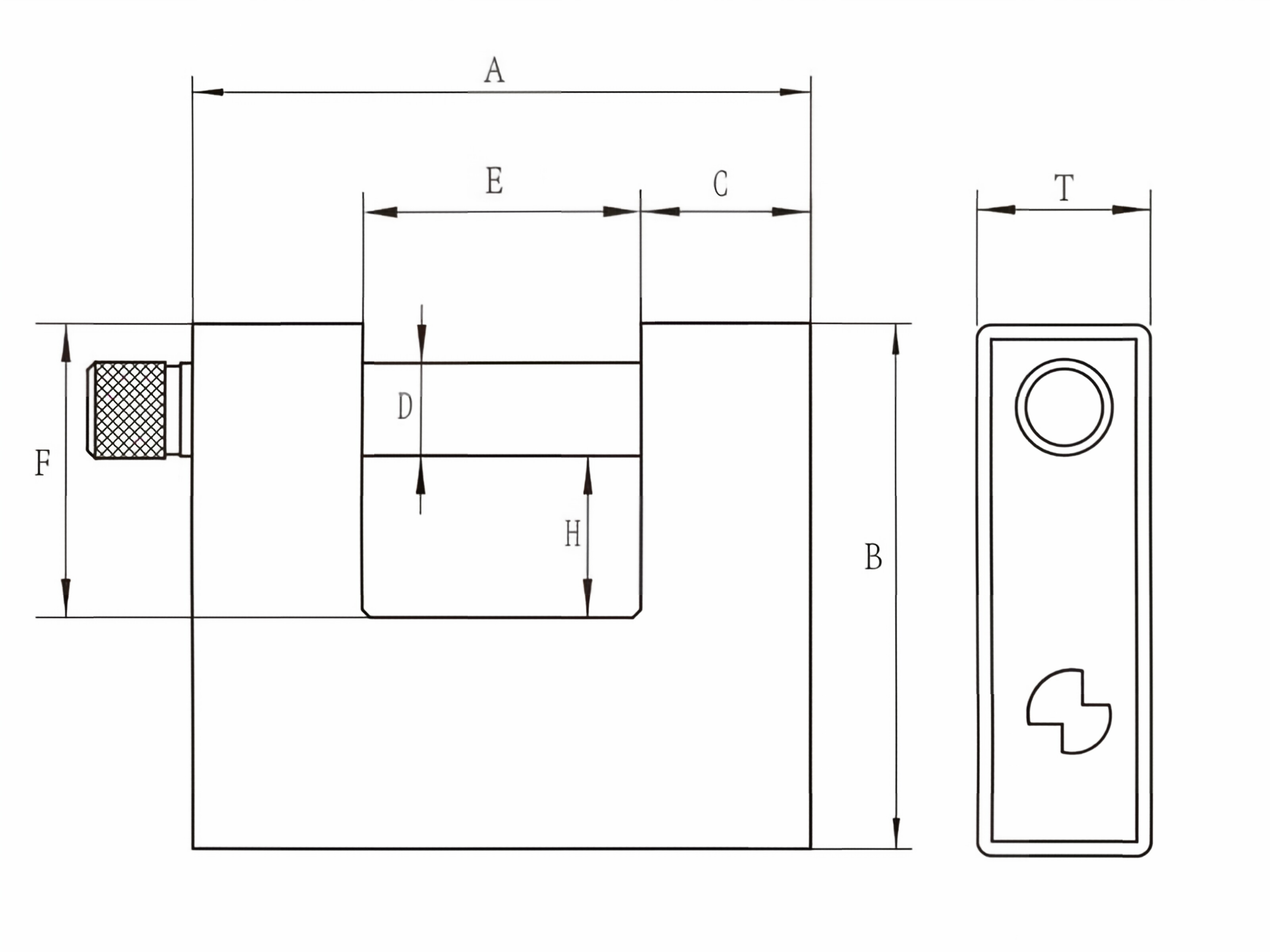

Technical Dimension Diagram

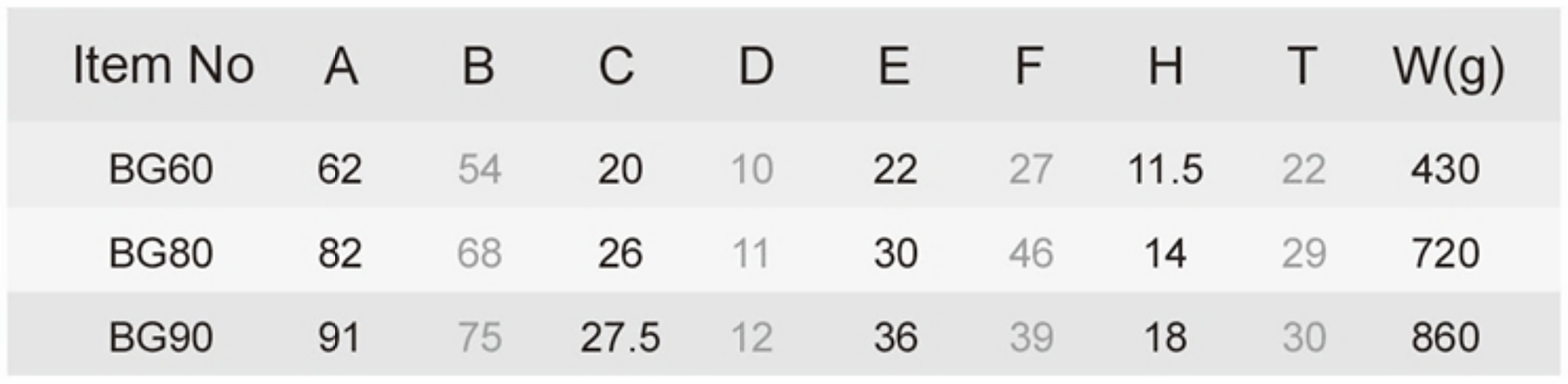

Specification Table - BG Series

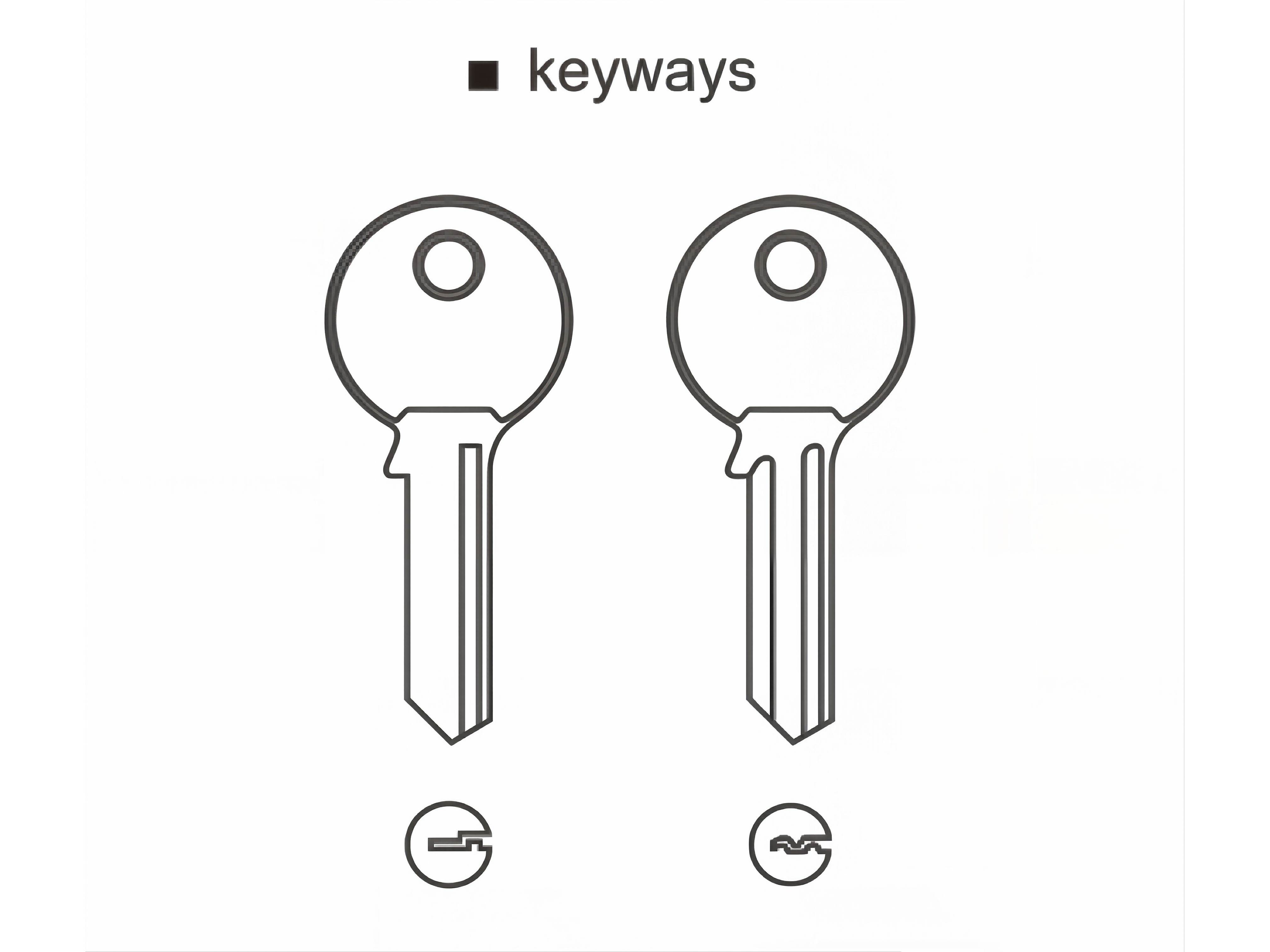

Key Ways Configuration
Product Overview
Rectangular padlock with armored-steel jacket, solid brass bodies & cylinders, extra long-time shackle-electroplating, brass internal pins, all angles chamfered.
Technical Specifications
| Item No | A | B | C | D | E | F | T | H | W(g) |
|---|---|---|---|---|---|---|---|---|---|
| BG60 | 62 | 54 | 20 | 10 | 22 | 27 | 22 | 11.5 | 430 |
| BG80 | 82 | 68 | 26 | 11 | 30 | 46 | 29 | 14 | 720 |
| BG90 | 91 | 75 | 27.5 | 12 | 36 | 39 | 30 | 18 | 860 |
* All dimensions are in millimeters (mm). Weight is in grams (g).
