Rectangular Brass Padlock with Armored-steel Jacket
Premium solid brass padlock with weather-resistant finish

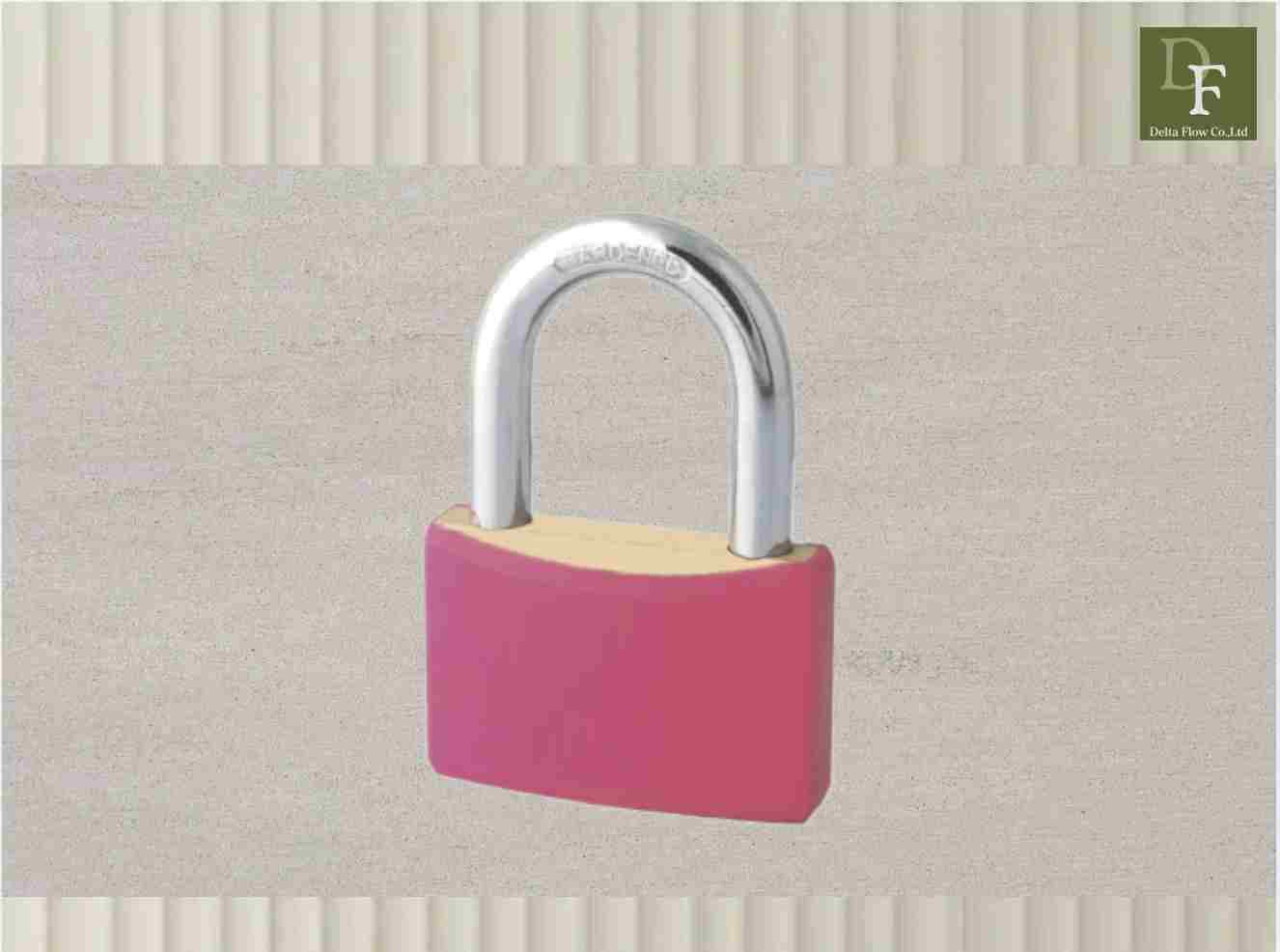

Product Photo

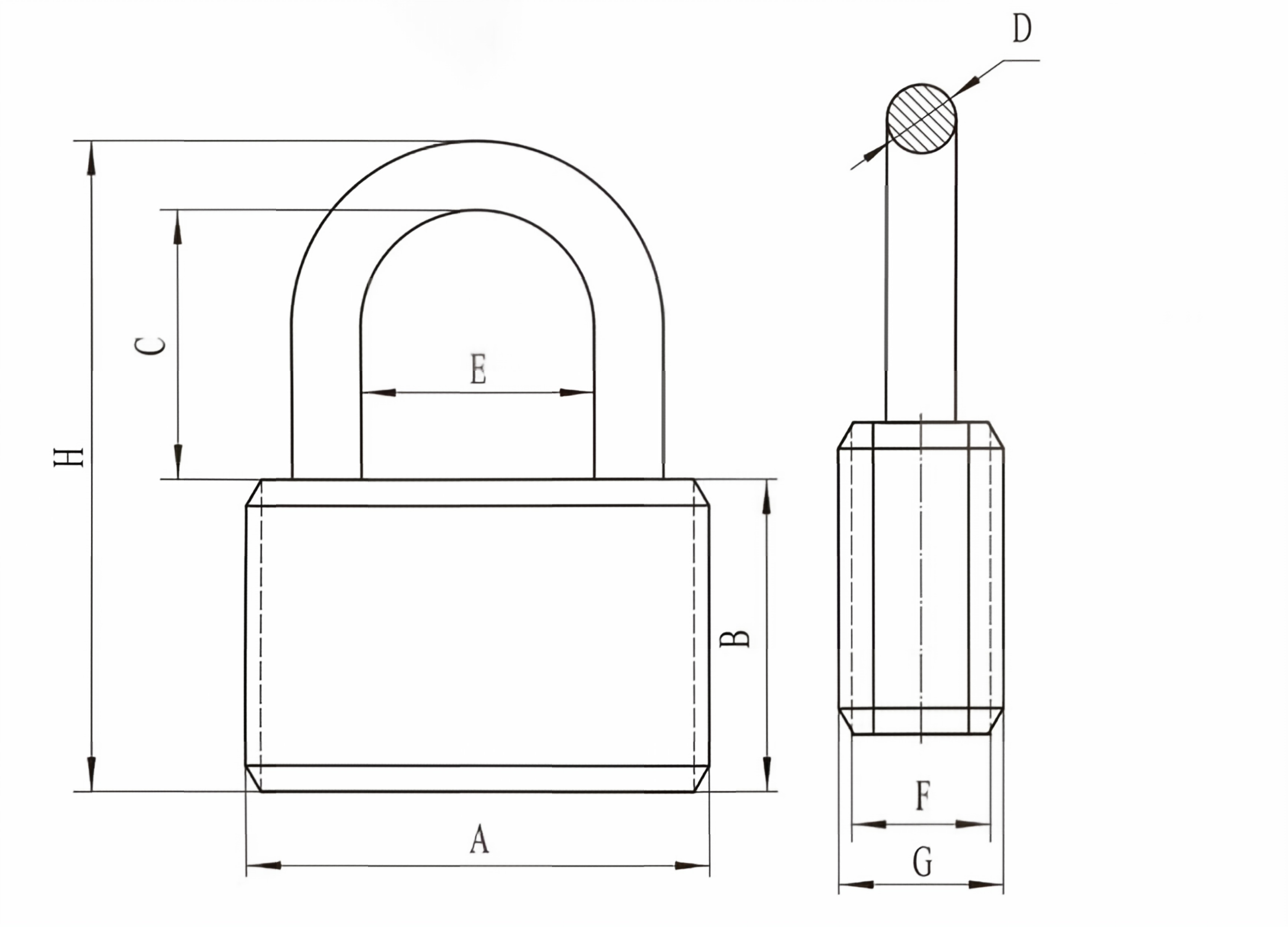

Technical Dimension Diagram

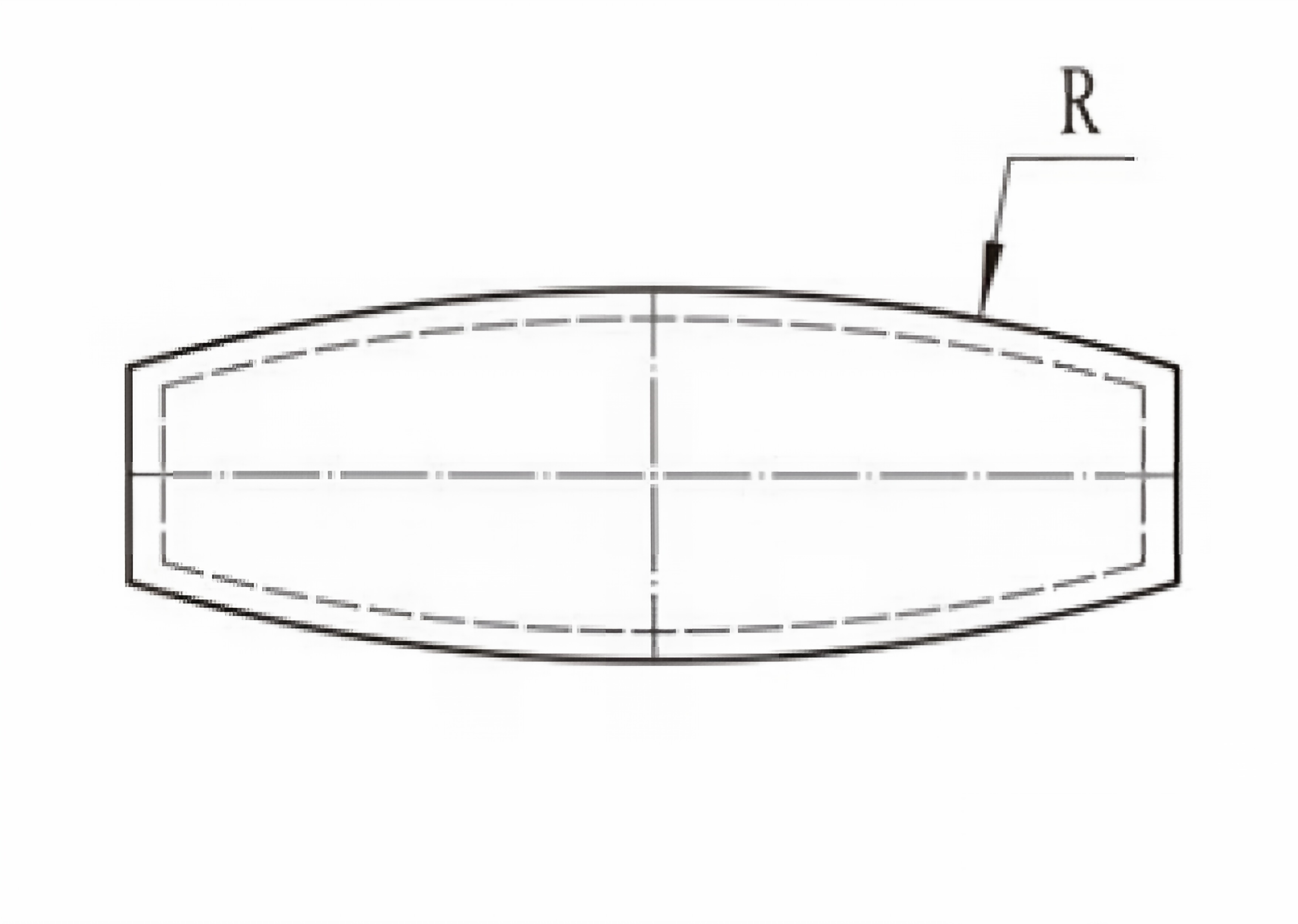

Body Cross Section

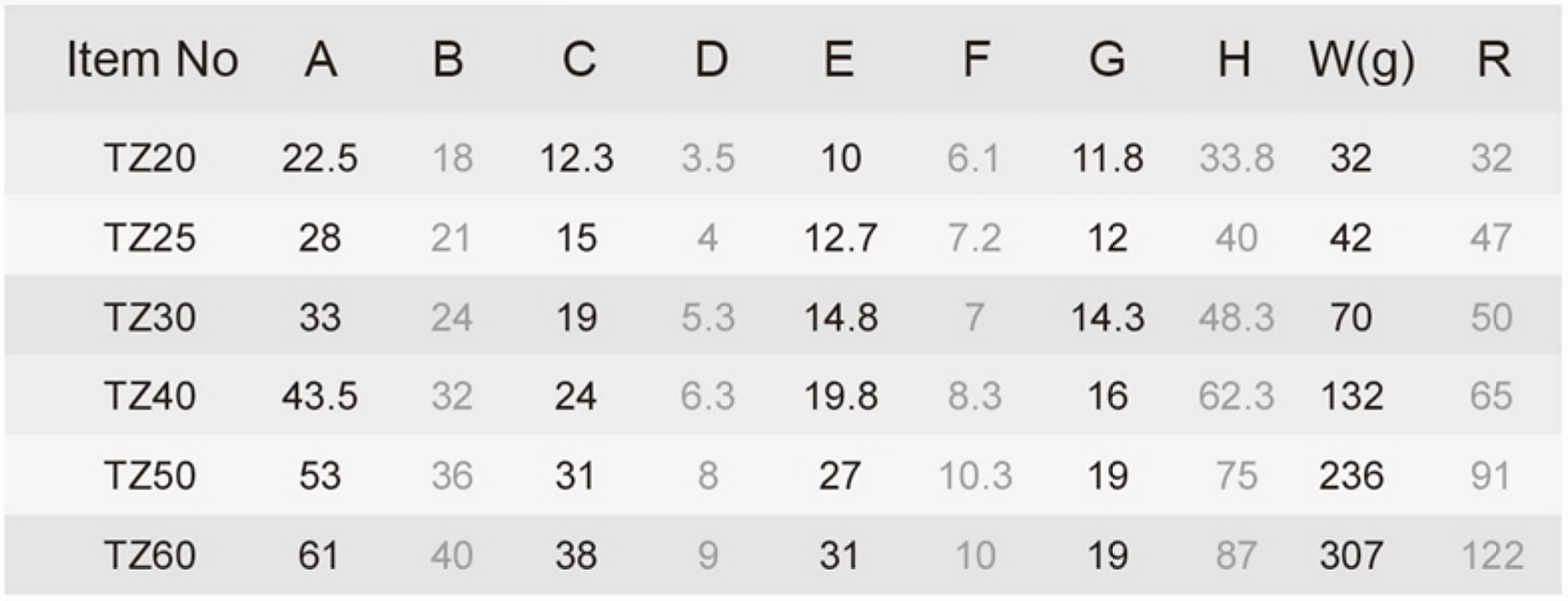

Specification Table - TZ Series

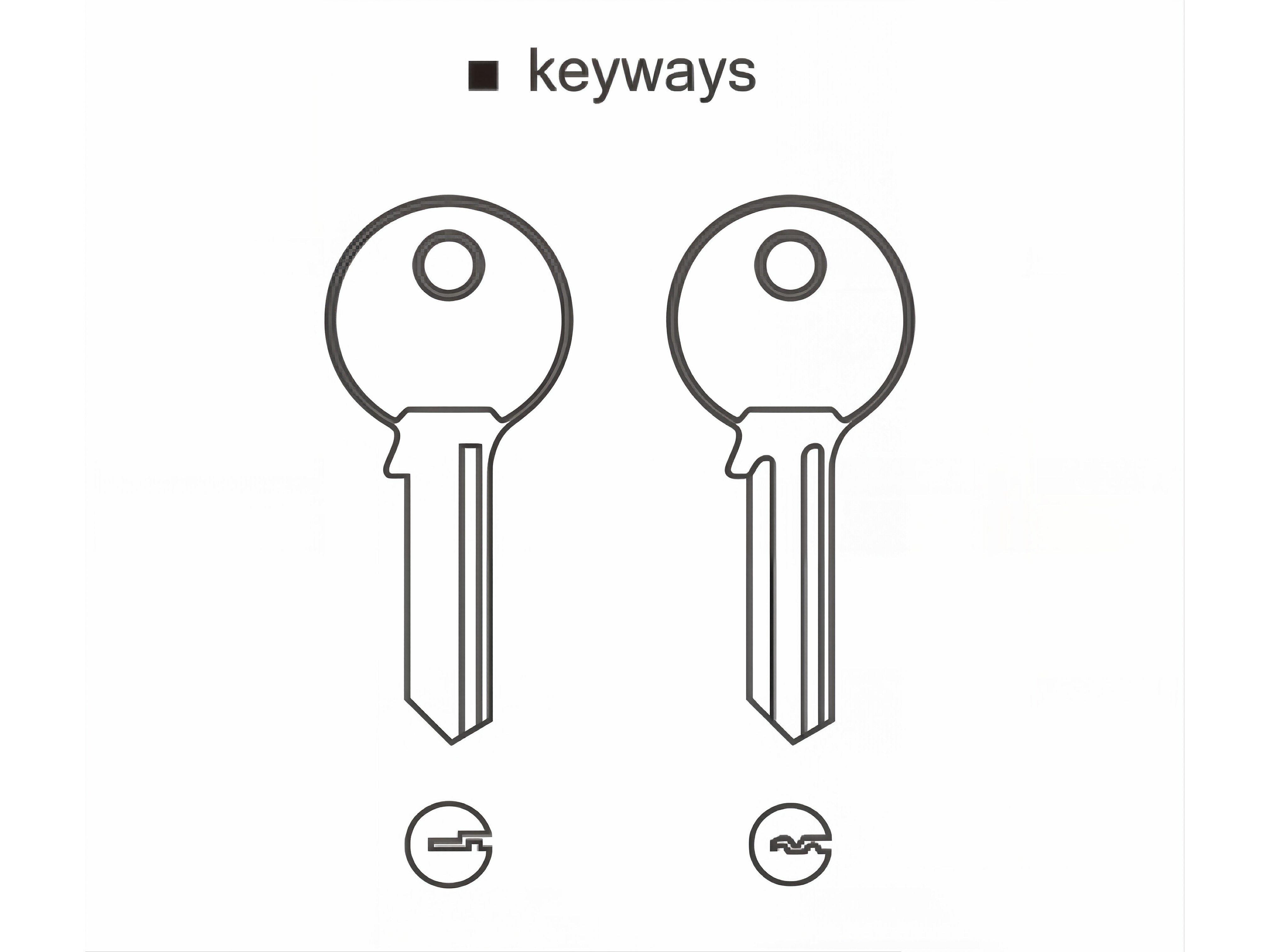

Key Ways Configuration
Color Options - 7 Colors Available
Product Overview
Premium padlock with solid brass body and cylinder, featuring hardened shackle with all angles chamfered for smooth operation and weatherproof construction for outdoor durability
- Solid Brass Body
- Solid Brass Cylinder
- Hardened Shackle
- All angles of lock-body are chamfered
- Weatherproof
Technical Specifications
| Item No | A | B | C | D | E | F | G | H | Pins | W(g) | R |
|---|---|---|---|---|---|---|---|---|---|---|---|
| TZ20 | 22.5 | 18 | 12.3 | 3.5 | 10 | 6.1 | 11.8 | 33.8 | 3 | 32 | 32 |
| TZ25 | 28 | 21 | 15 | 4 | 12.7 | 7.2 | 12 | 40 | 3 | 42 | 47 |
| TZ30 | 33 | 24 | 19 | 5.3 | 14.8 | 7 | 14.3 | 48.3 | 4 | 70 | 50 |
| TZ40 | 43.5 | 32 | 24 | 6.3 | 19.8 | 8.3 | 16 | 62.3 | 5 | 132 | 65 |
| TZ50 | 53 | 36 | 31 | 8 | 27 | 10.3 | 19 | 75 | 5 | 236 | 91 |
| TZ60 | 61 | 40 | 38 | 9 | 31 | 10 | 19 | 87 | 5 | 307 | 122 |
* All dimensions are in millimeters (mm). Weight is in grams (g).
