Medium-size Brass Padlock with Long Shackle
Medium-size brass padlock with extended shackle for versatile applications

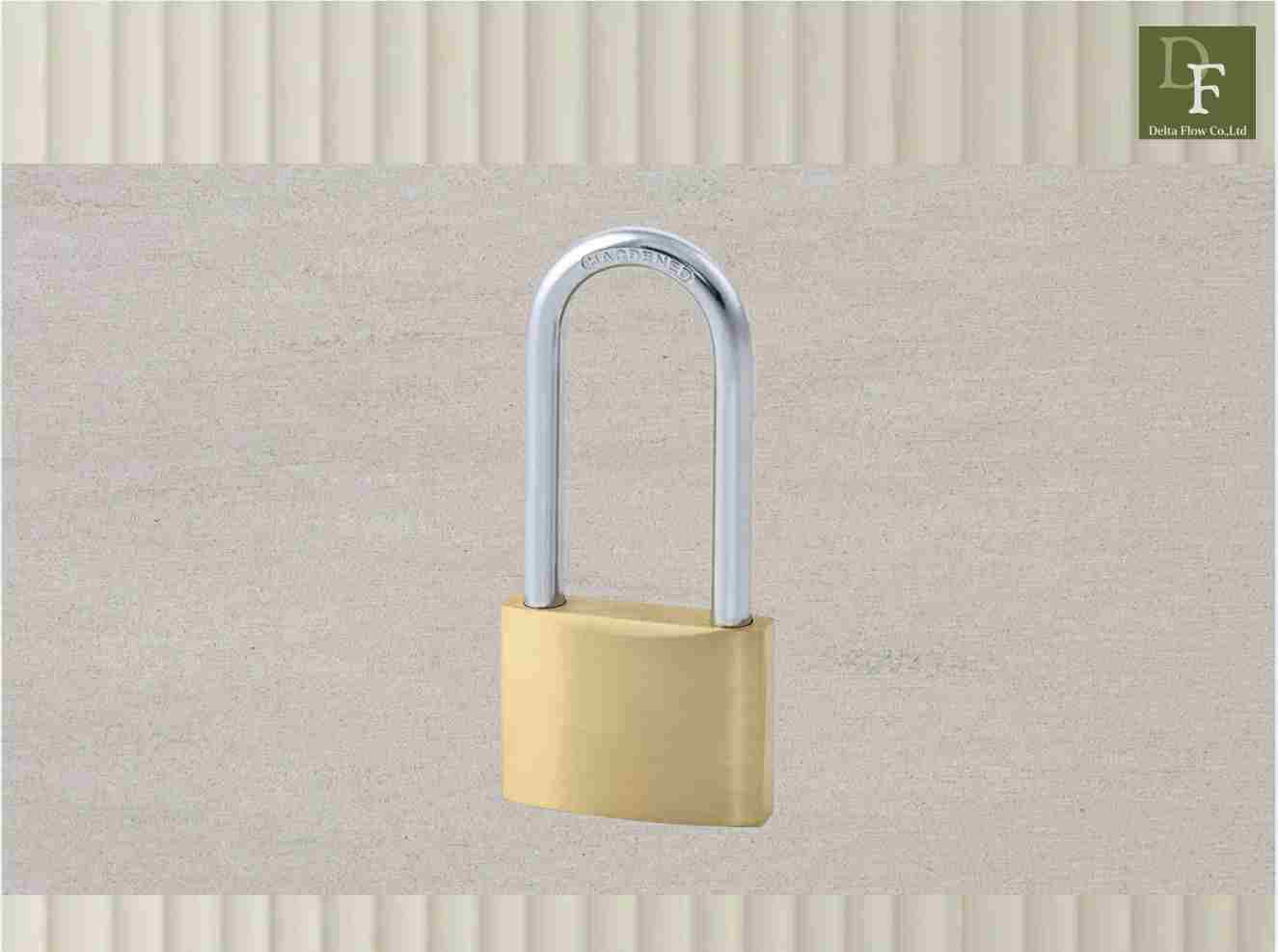

Product Photo

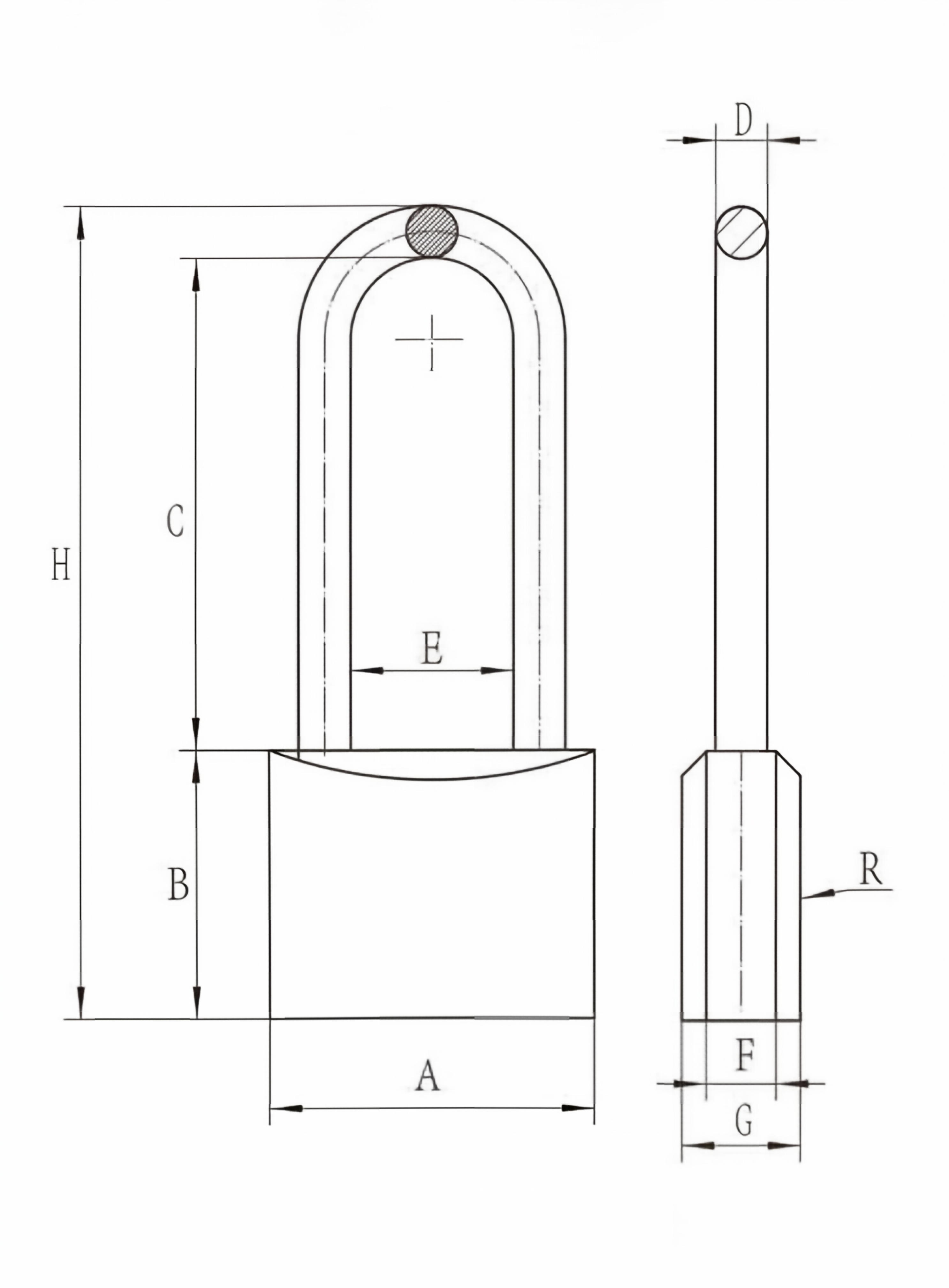

Technical Dimension Diagram

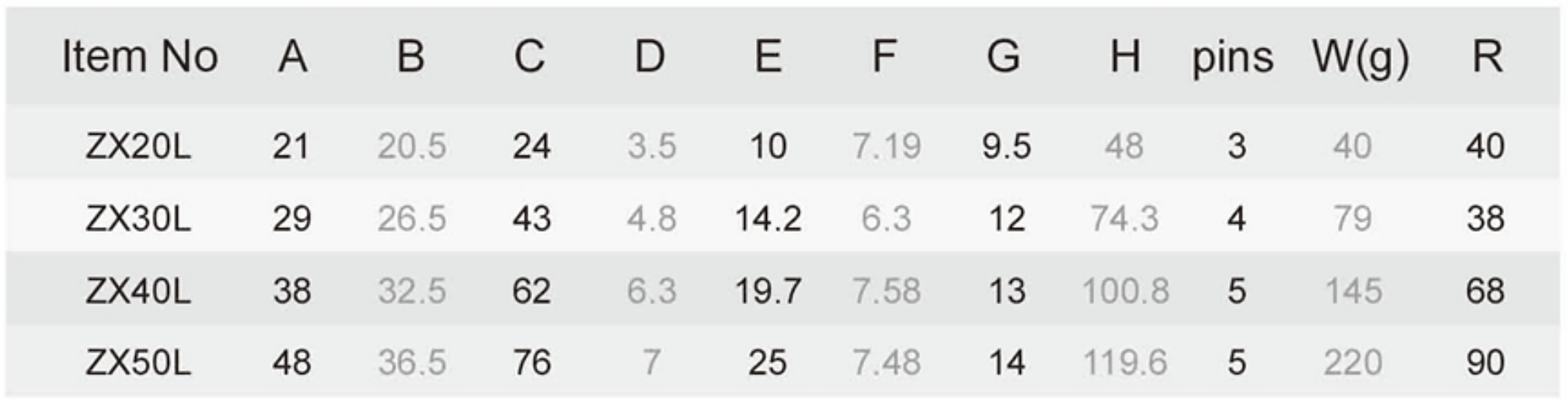

Specification Table - ZX-L Series

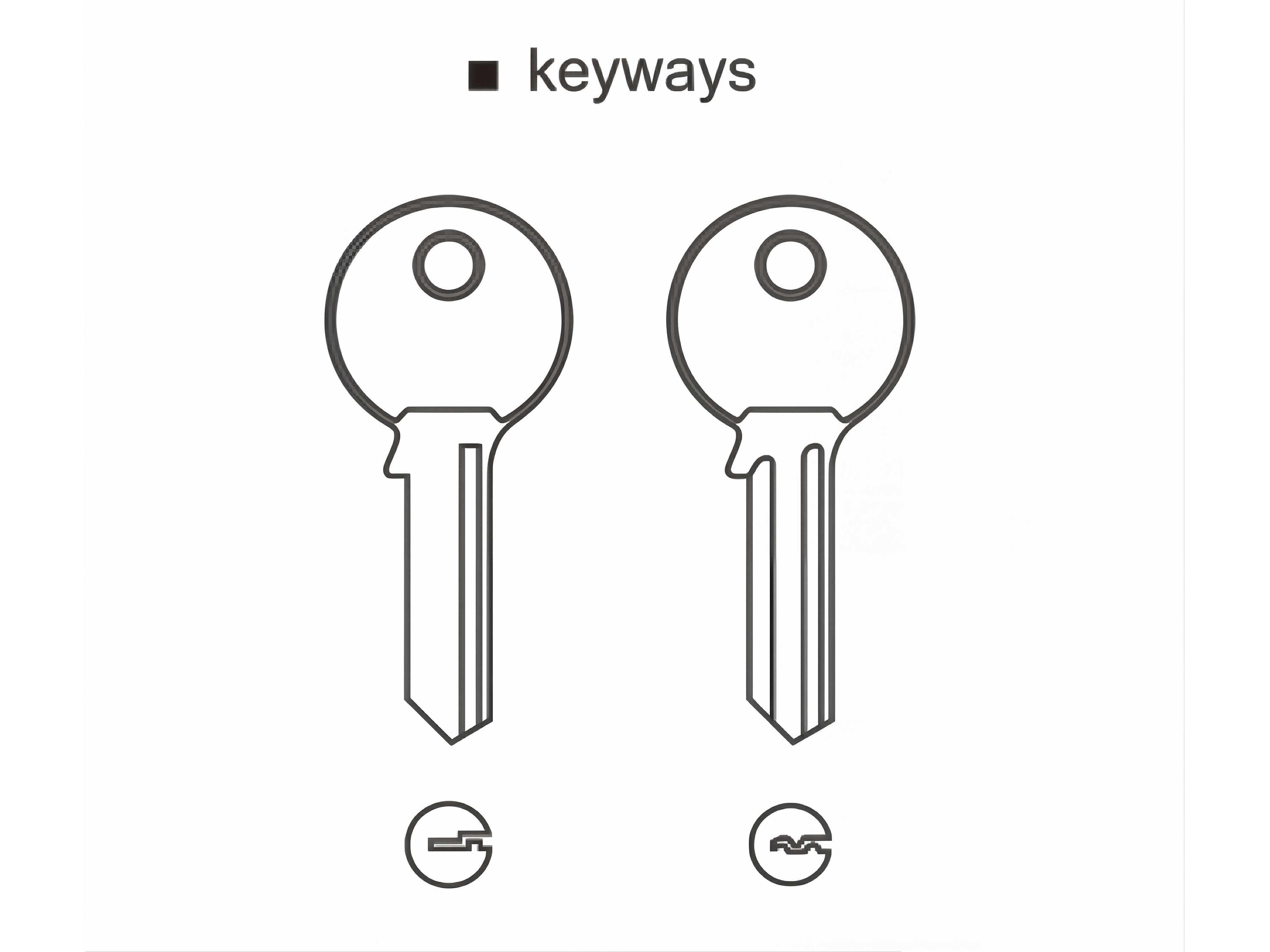

Key Ways Configuration
Product Overview
Medium-size brass padlock with extended shackle for enhanced reach and versatility. Ideal for applications requiring deeper engagement while maintaining compact body design.
- Extended Shackle Length
- Versatile Application
- Compact Body Design
- Enhanced Reach
- Durable Construction
Technical Specifications
| Item No | A | B | C | D | E | F | G | H | Pins | W(g) | R |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ZX20L | 21 | 20.5 | 24 | 3.5 | 10 | 7.19 | 9.5 | 48 | 3 | 40 | 40 |
| ZX30L | 29 | 26.5 | 43 | 4.8 | 14.2 | 6.3 | 12 | 74.3 | 4 | 79 | 38 |
| ZX40L | 38 | 32.5 | 62 | 6.3 | 19.7 | 7.58 | 13 | 100.8 | 5 | 145 | 68 |
| ZX50L | 48 | 36.5 | 76 | 7 | 25 | 7.48 | 14 | 119.6 | 5 | 220 | 90 |
* All dimensions are in millimeters (mm). Weight is in grams (g).
