Rectangular Brass Padlock with Armored-steel Jacket
Premium solid brass padlock with weather-resistant finish

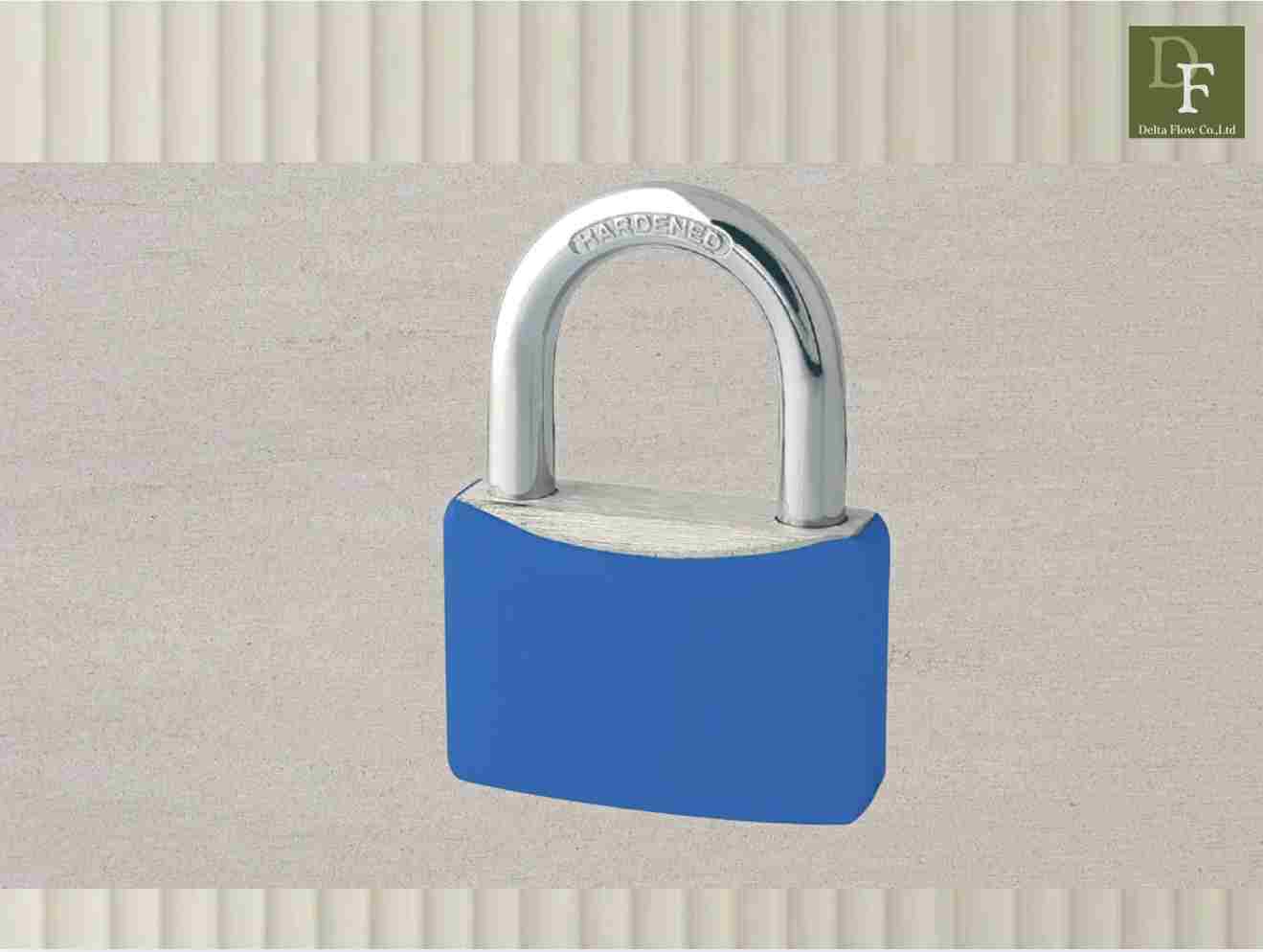

Product Photo

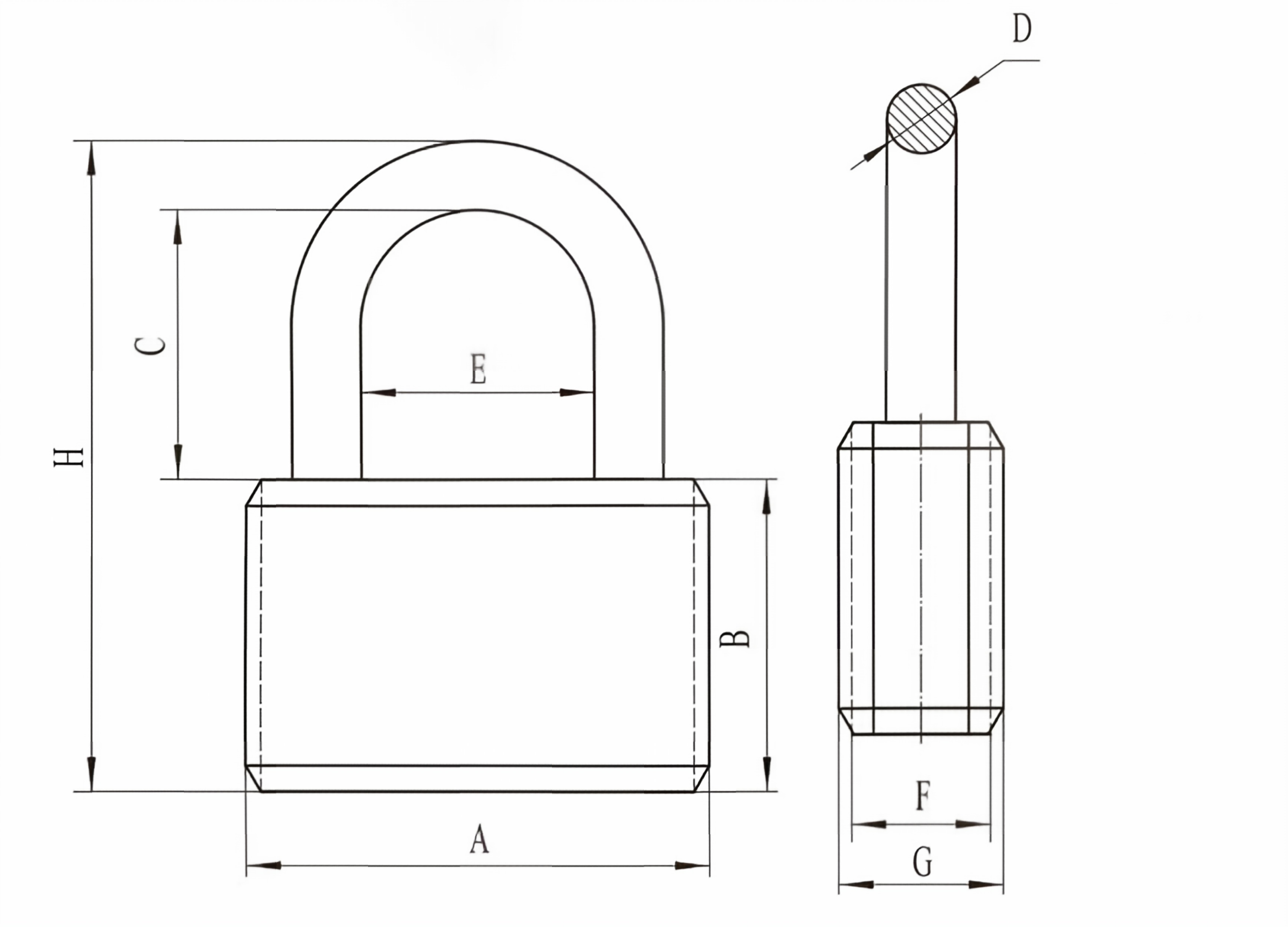

Technical Dimension Diagram

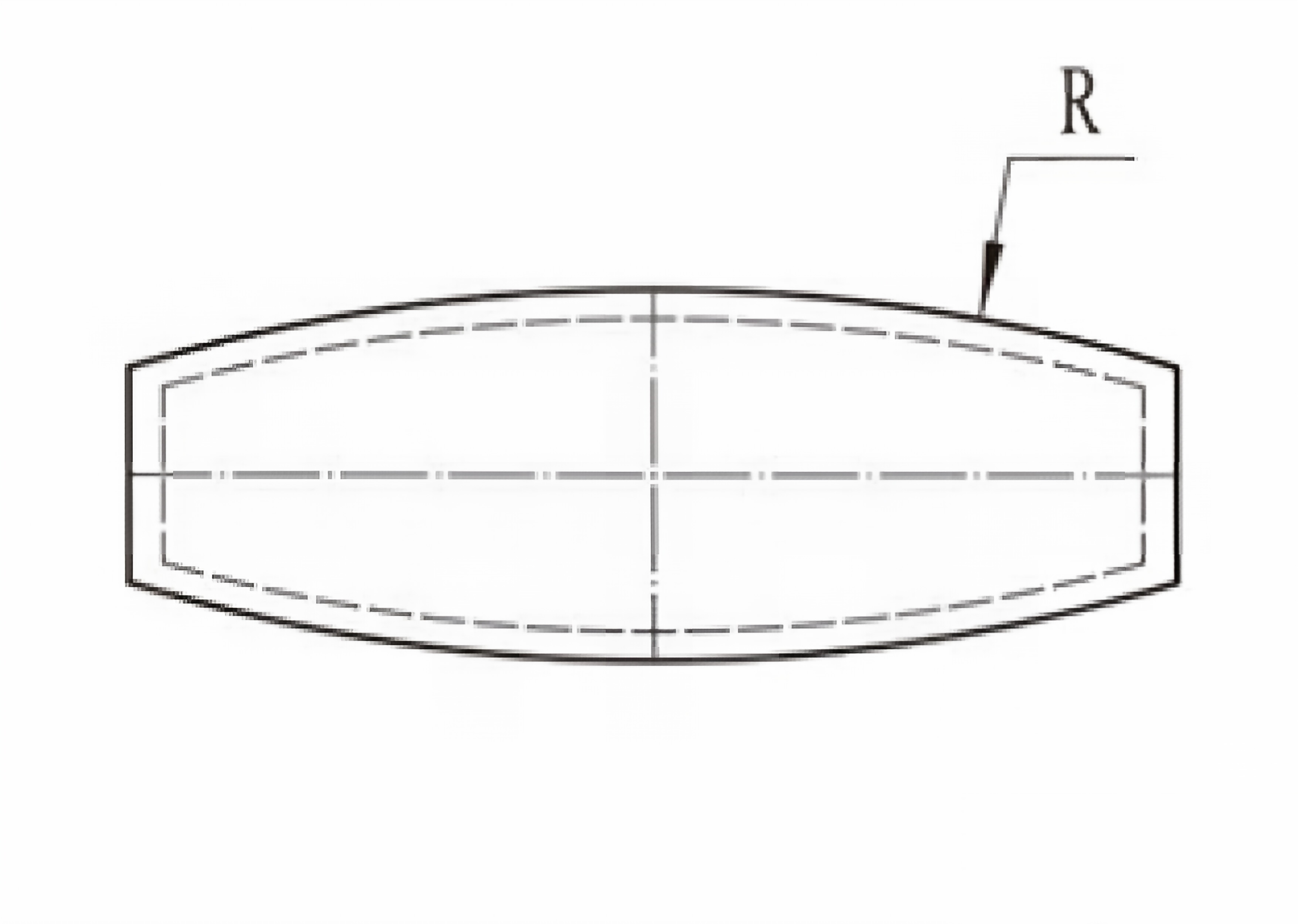

Body Cross Section

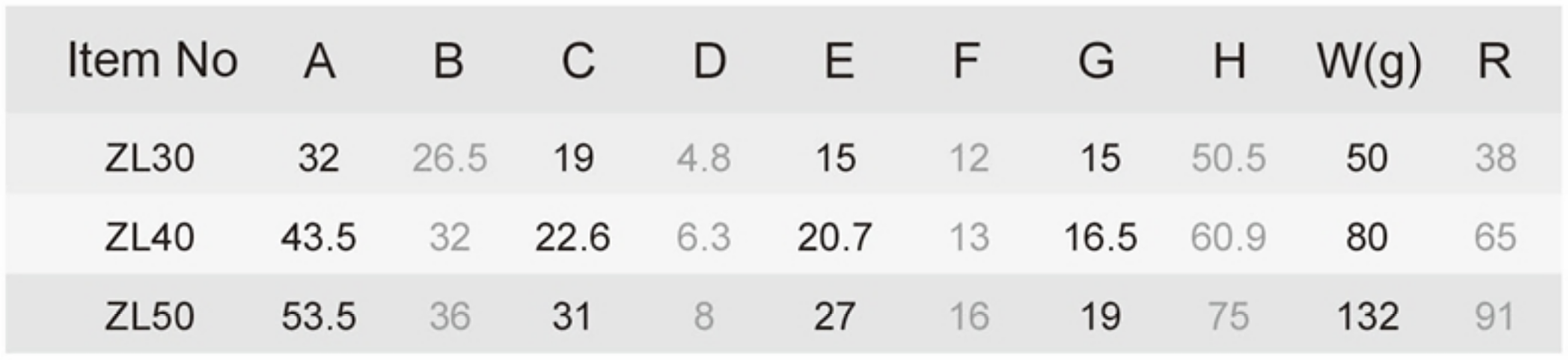

Specification Table - ZL Series

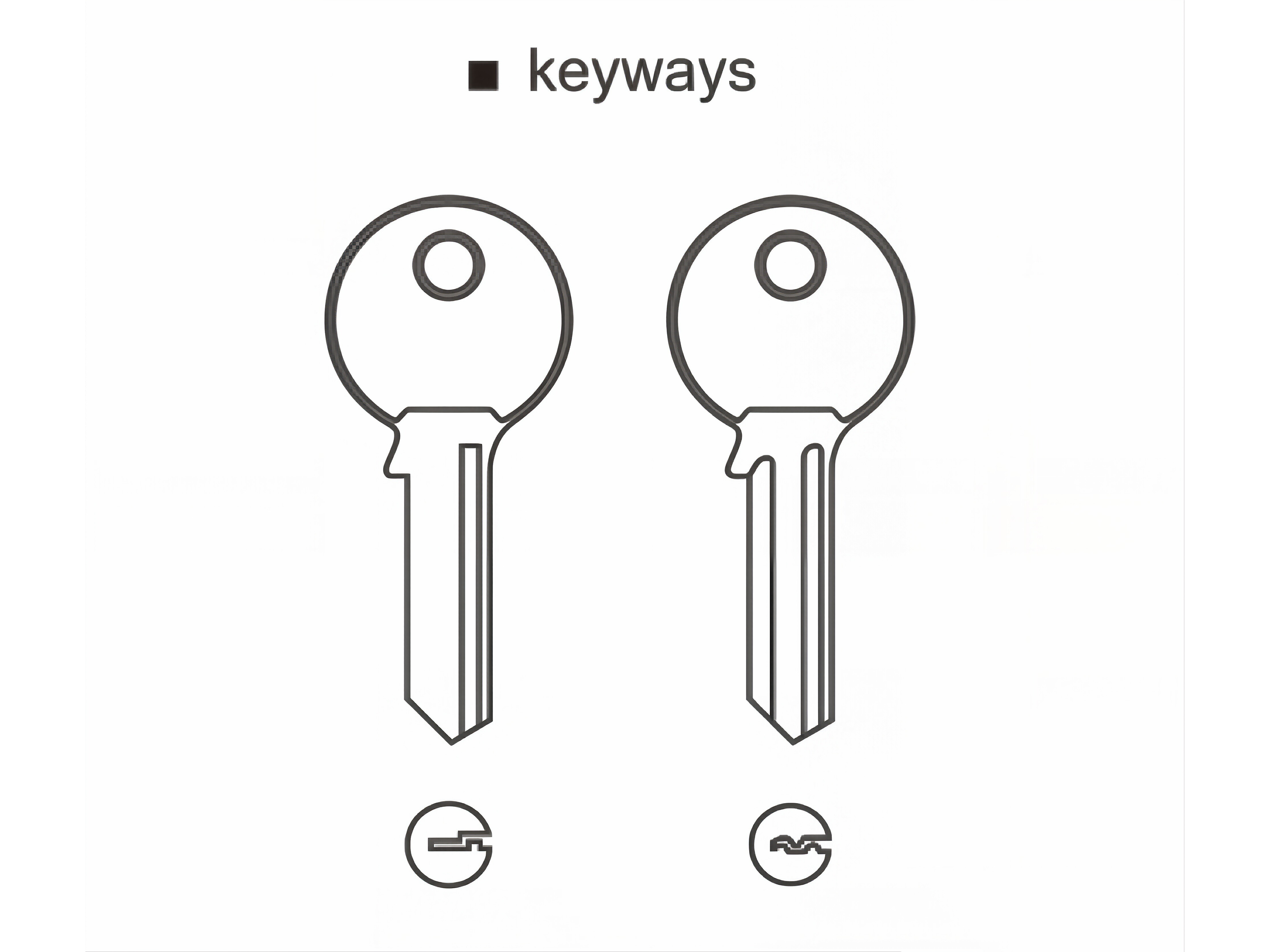

Key Ways Configuration
Color Options - 7 Colors Available
Product Overview
Premium padlock with solid brass body and cylinder, featuring hardened shackle with all angles chamfered for smooth operation and weatherproof construction for outdoor durability
- Solid Brass Body
- Solid Brass Cylinder
- Hardened Shackle
- All angles of lock-body are chamfered
- Weatherproof
Technical Specifications
| Item No | A | B | C | D | E | F | G | H | Pins | W(g) | R |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ZL30 | 32 | 26.5 | 19 | 4.8 | 15 | 12 | 15 | 50.5 | 0 | 50 | 38 |
| ZL40 | 43.5 | 32 | 22.6 | 6.3 | 20.7 | 13 | 16.5 | 60.9 | 0 | 80 | 65 |
| ZL50 | 53.5 | 36 | 31 | 8 | 27 | 16 | 19 | 75 | 0 | 132 | 91 |
* All dimensions are in millimeters (mm). Weight is in grams (g).
