Marine Laminated Steel Padlock
Professional navy blue padlock for maritime industry
Product Photo

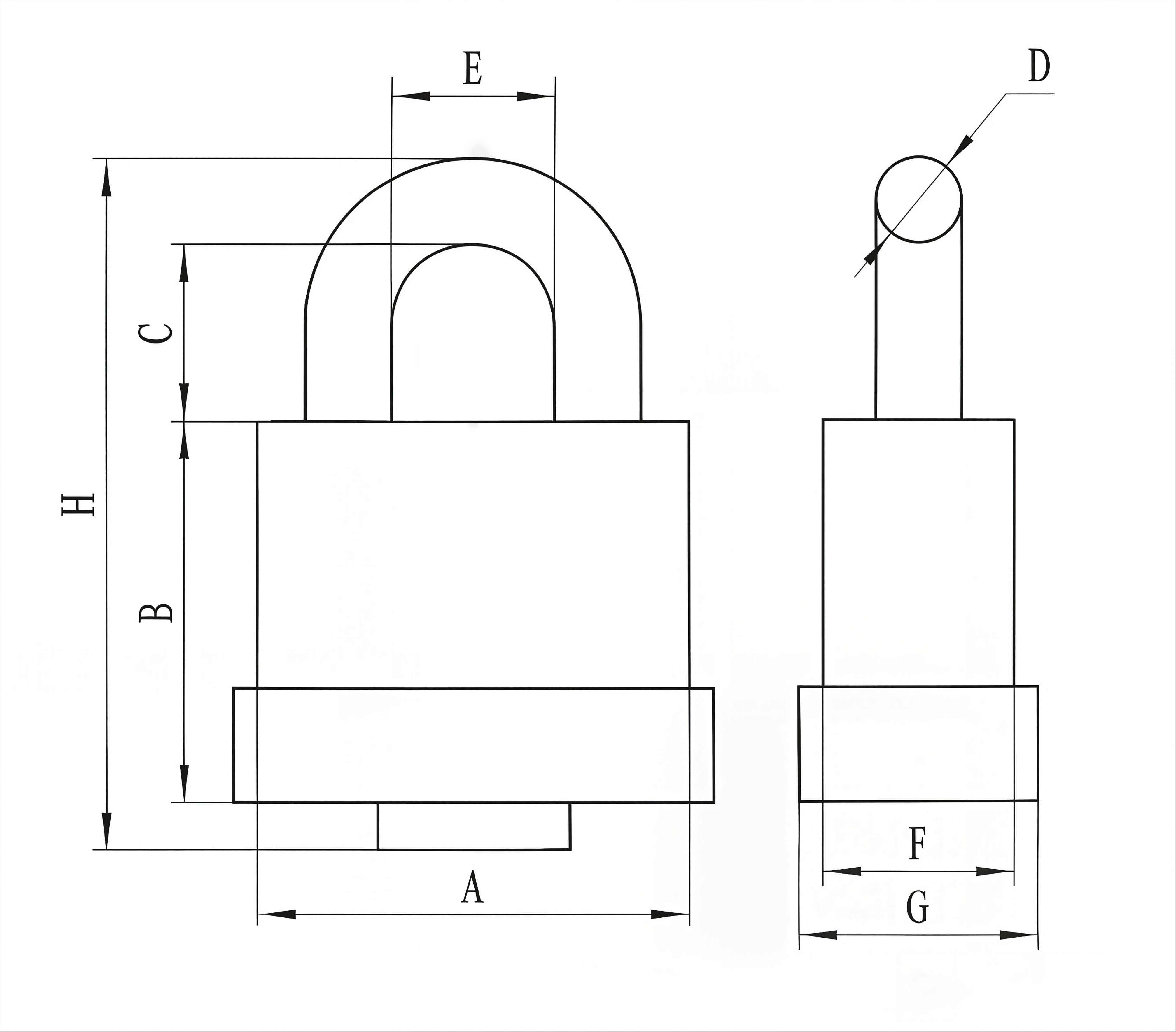

Technical Dimension Diagram

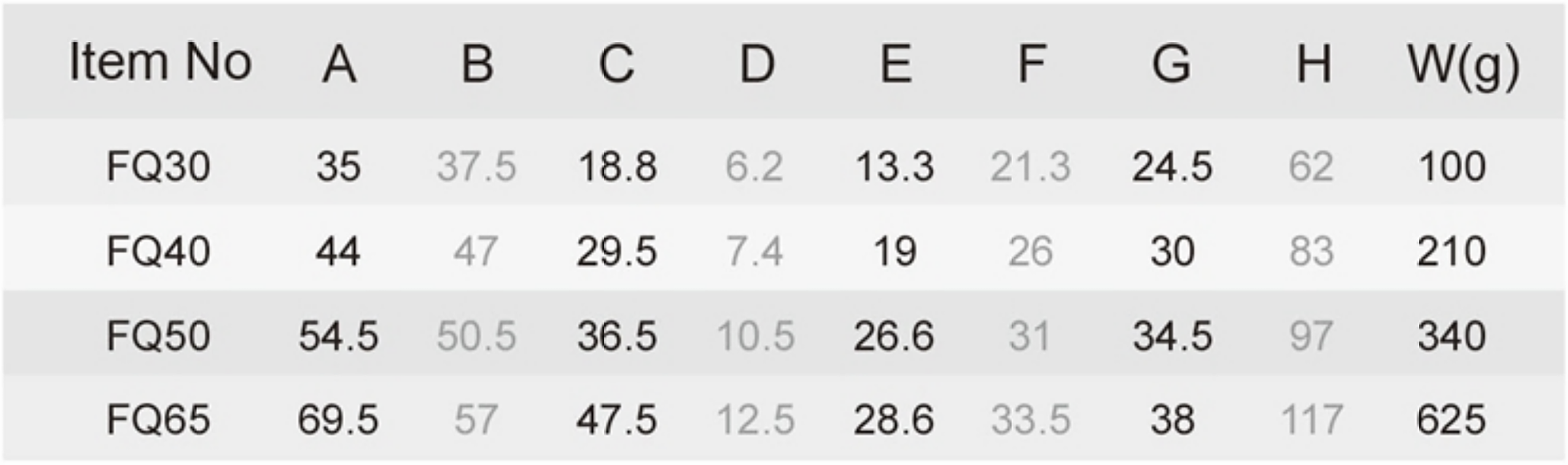

Specification Table - FQ Series

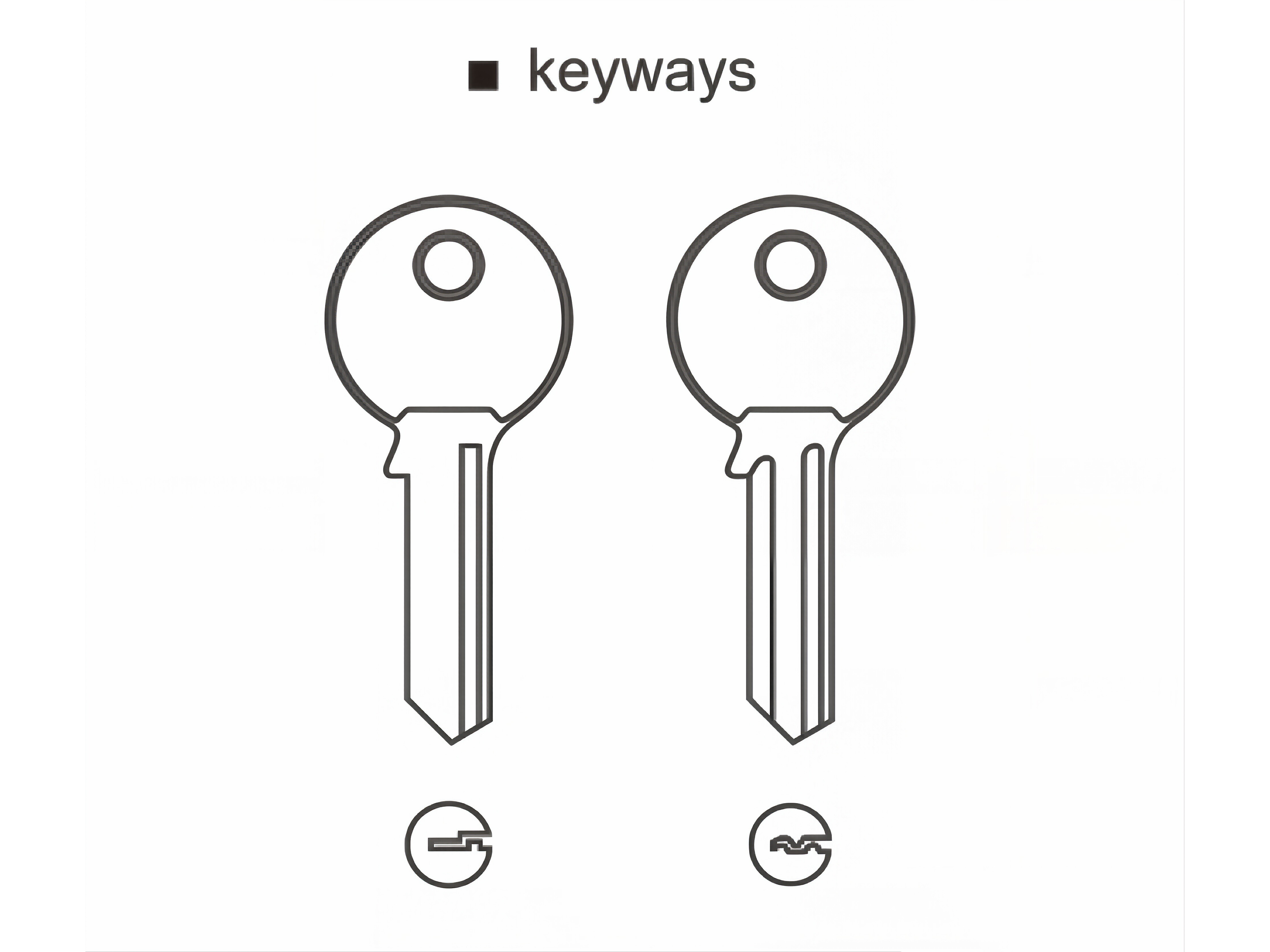

Key Ways Configuration
Product Overview
Professional navy blue padlock for maritime industry, zinc-alloy lock bodies, brass pins, double-locking bolts (40-65mm), plastic jacket coating, 2 pcs iron keys.
Technical Specifications
| Item No | A | B | C | D | E | F | G | H | W(g) |
|---|---|---|---|---|---|---|---|---|---|
| FQ30 | 35 | 37.5 | 18.8 | 6.2 | 13.3 | 21.3 | 24.5 | 62 | 100 |
| FQ40 | 44 | 47 | 29.5 | 7.4 | 19 | 26 | 30 | 83 | 210 |
| FQ50 | 54.5 | 50.5 | 36.5 | 10.5 | 26.6 | 31 | 34.5 | 97 | 340 |
| FQ65 | 69.5 | 57 | 47.5 | 12.5 | 28.6 | 33.5 | 38 | 117 | 625 |
* All dimensions are in millimeters (mm). Weight is in grams (g).
