Rectangular Brass Padlock with Armored-steel Jacket
Premium solid brass padlock with weather-resistant finish

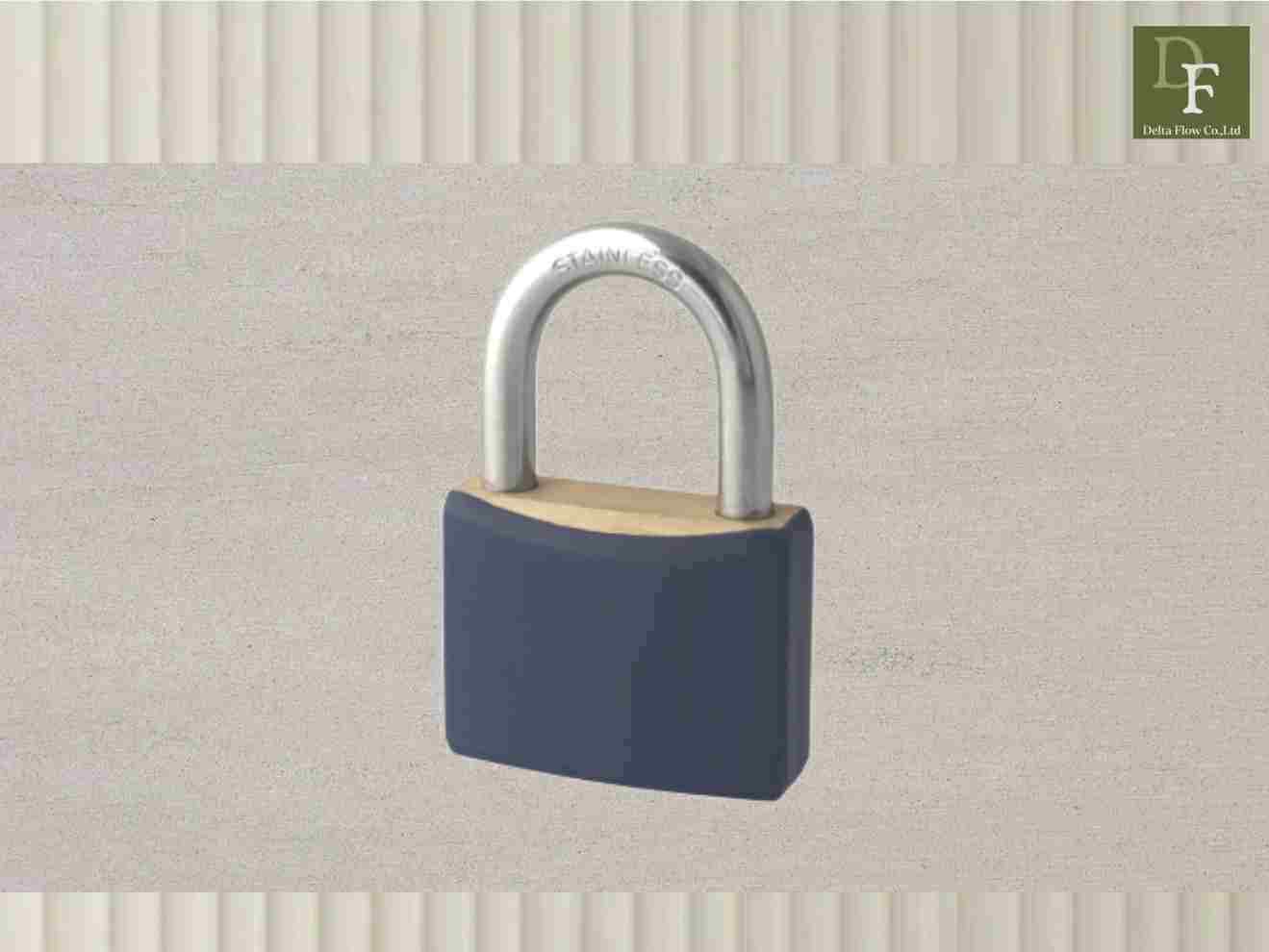

Product Photo

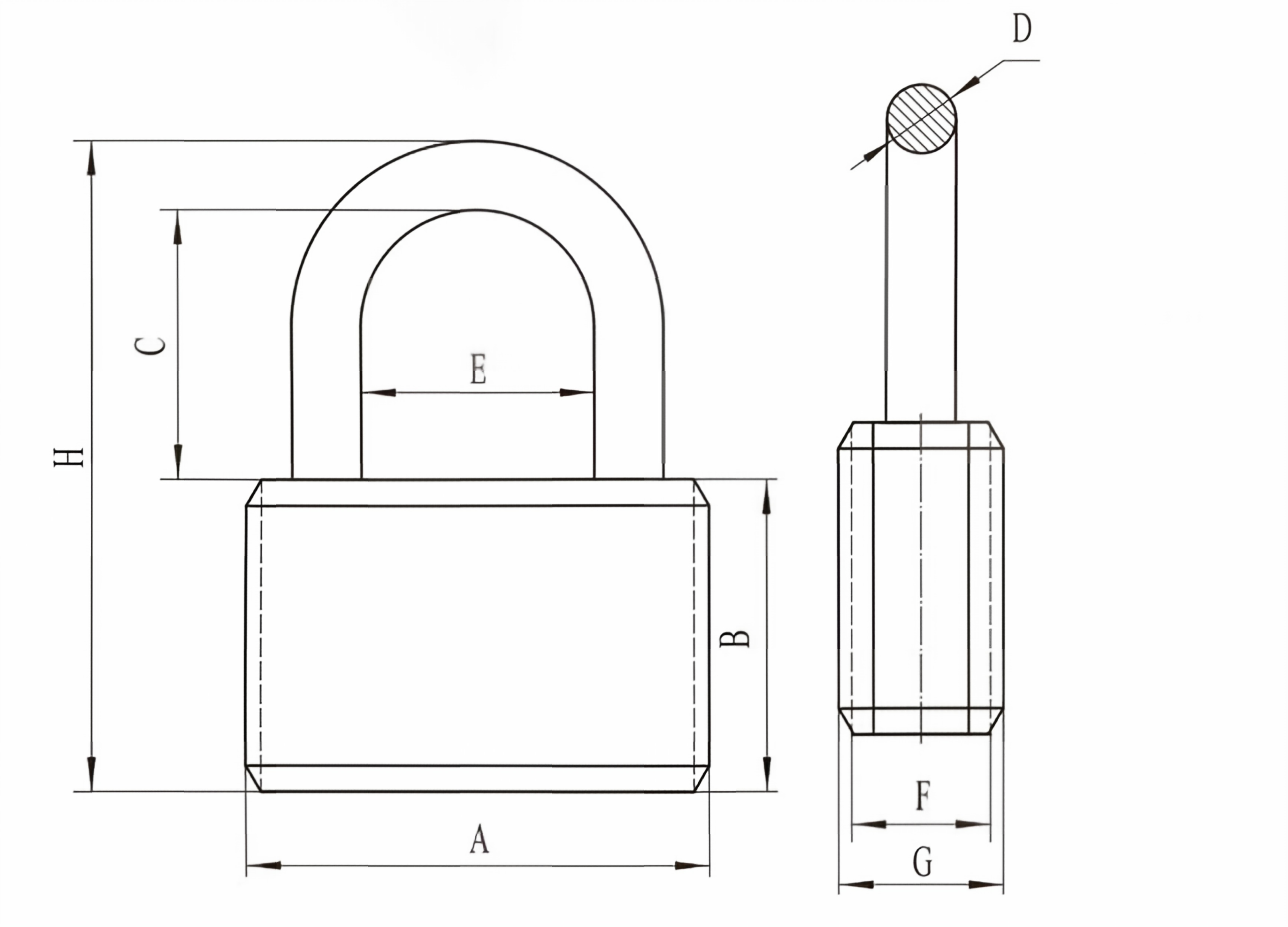

Technical Dimension Diagram

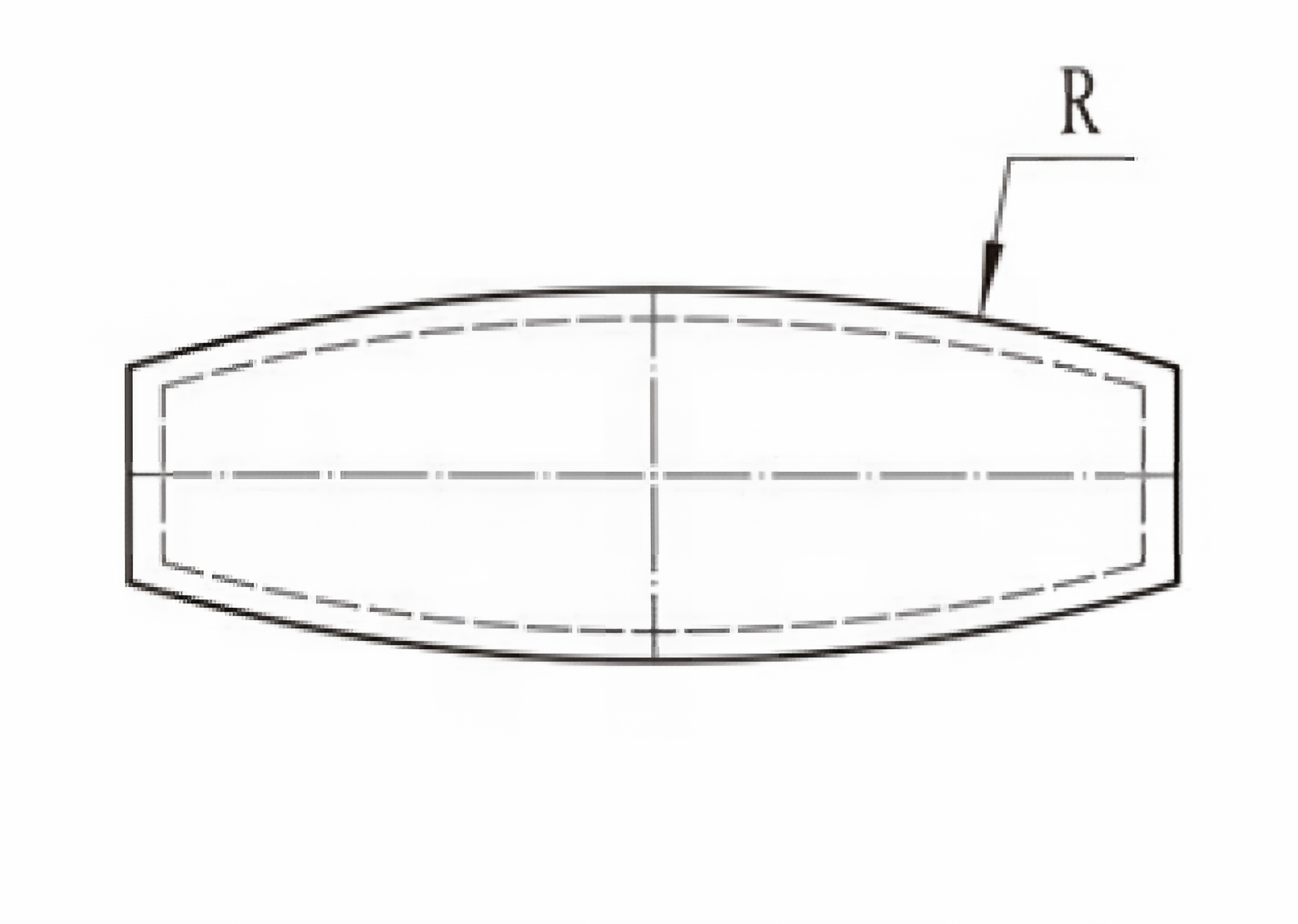

Body Cross Section

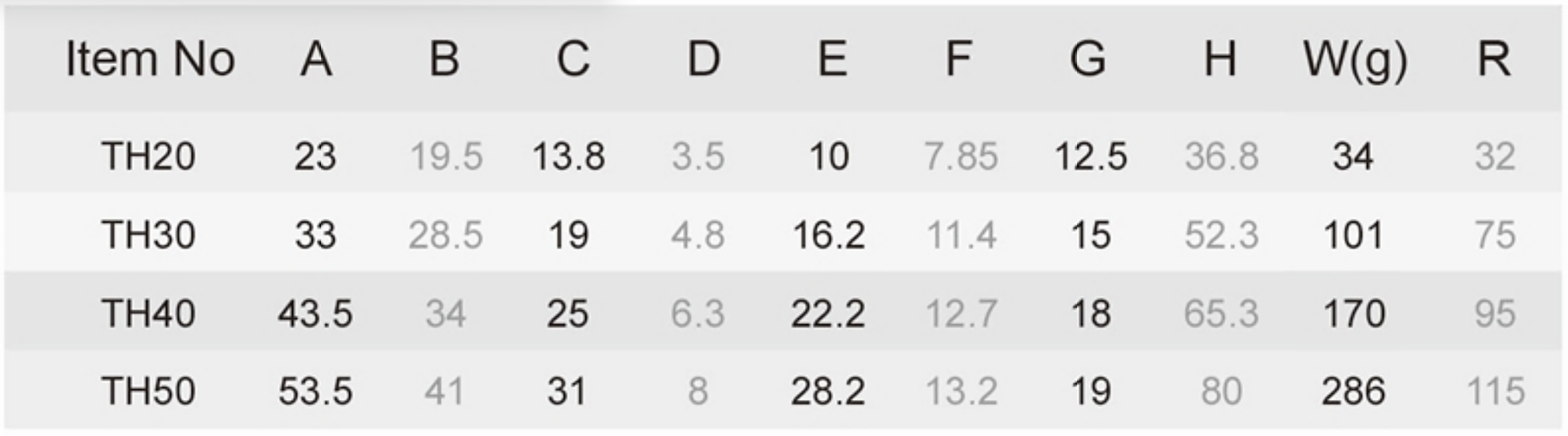

Specification Table - TH Series

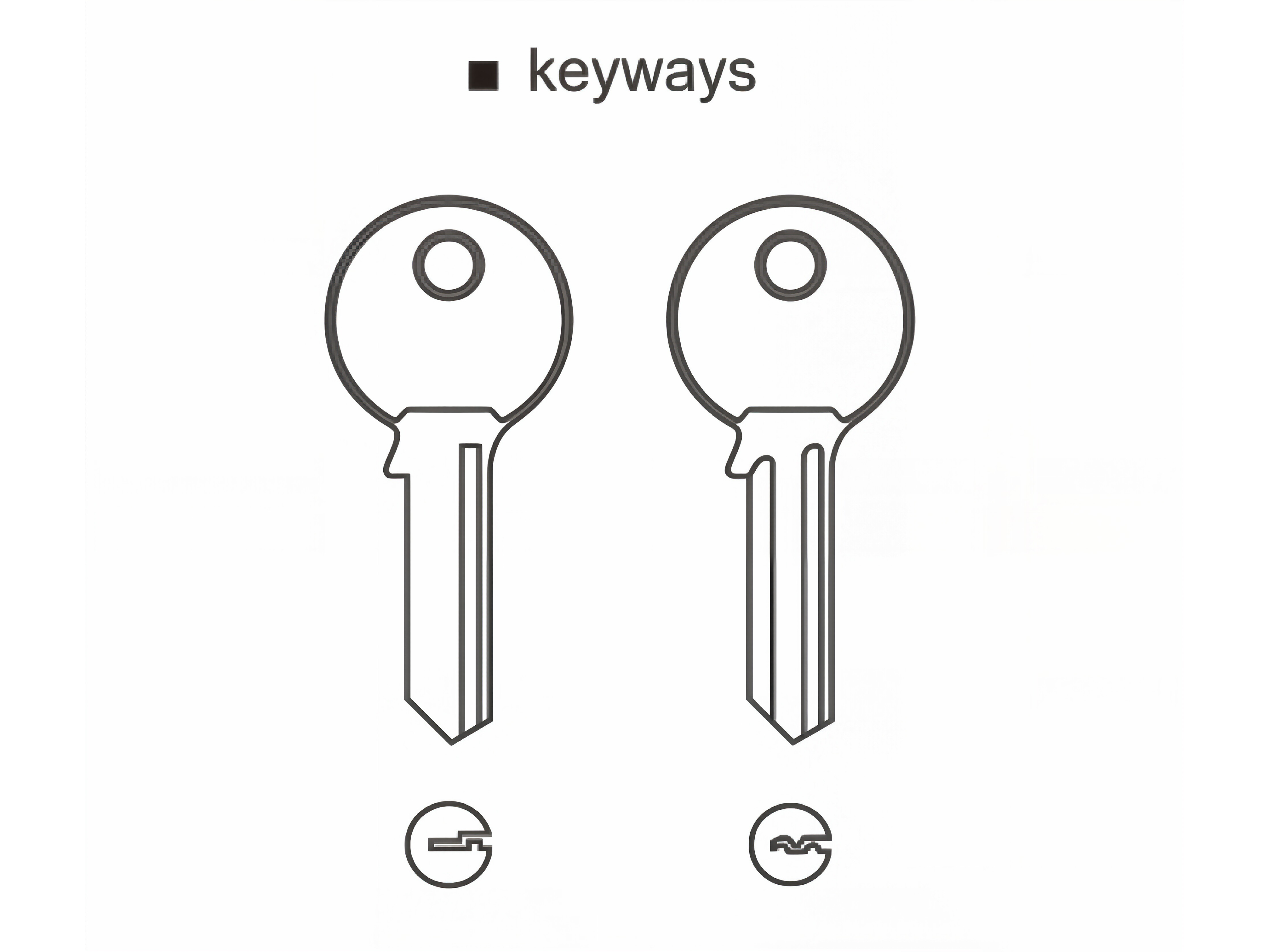

Key Ways Configuration
Product Overview
Premium padlock with solid brass body and cylinder, featuring hardened shackle with all angles chamfered for smooth operation and weatherproof construction for outdoor durability
- Solid Brass Body
- Solid Brass Cylinder
- Hardened Shackle
- All angles of lock-body are chamfered
- Weatherproof
Technical Specifications
| Item No | A | B | C | D | E | F | G | H | Pins | W(g) | R |
|---|---|---|---|---|---|---|---|---|---|---|---|
| TH20 | 23 | 19.5 | 13.8 | 3.5 | 10 | 7.85 | 12.5 | 36.8 | 3 | 34 | 32 |
| TH30 | 33 | 28.5 | 19 | 4.8 | 16.2 | 11.4 | 15 | 52.3 | 4 | 101 | 75 |
| TH40 | 43.5 | 34 | 25 | 6.3 | 22.2 | 12.7 | 18 | 65.3 | 5 | 170 | 95 |
| TH50 | 53.5 | 41 | 31 | 8 | 28.2 | 13.2 | 19 | 80 | 5 | 286 | 115 |
* All dimensions are in millimeters (mm). Weight is in grams (g).
