Rectangular Brass Padlock with Armored-steel Jacket
Premium solid brass padlock with weather-resistant finish

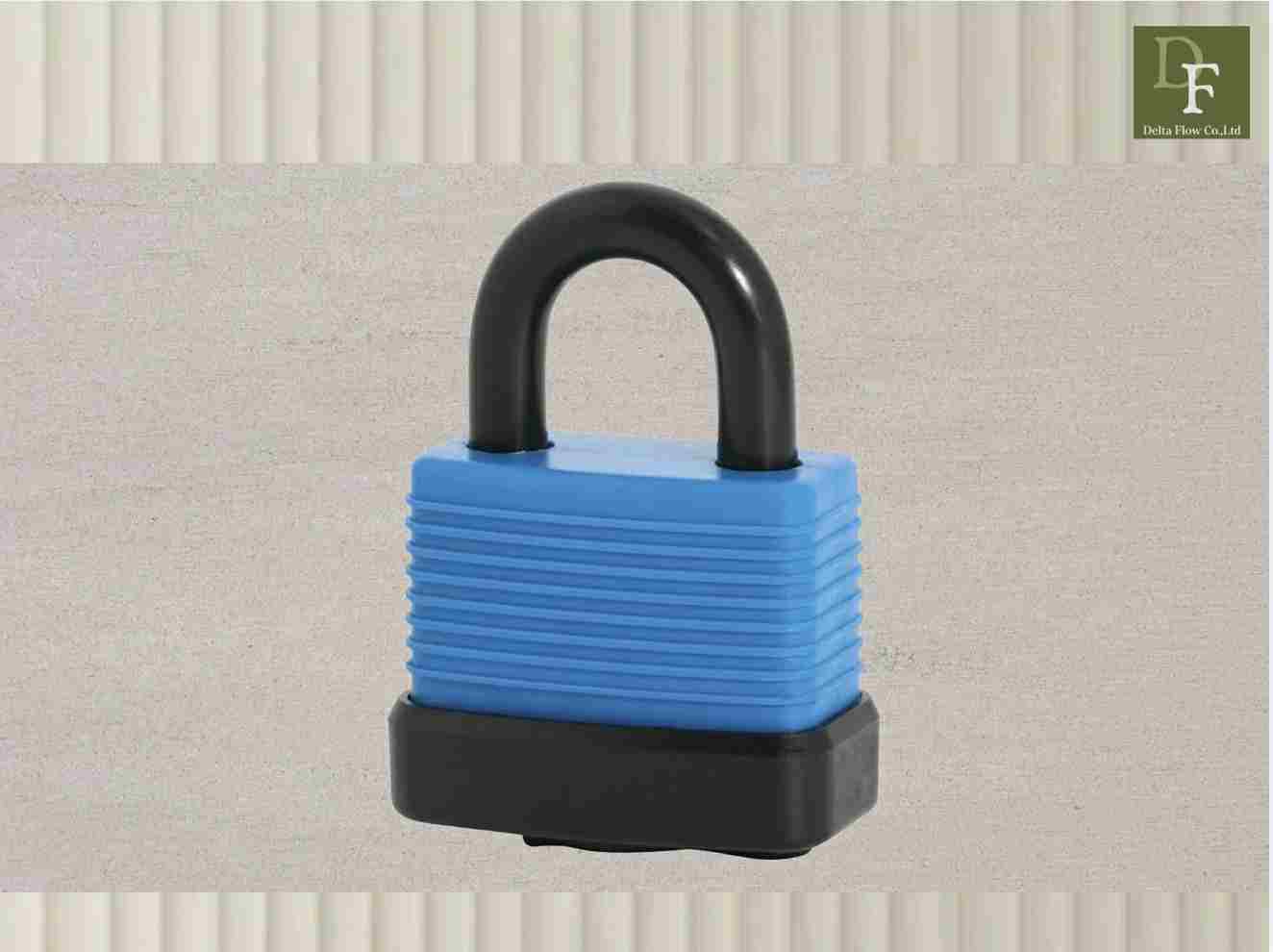

Product Photo

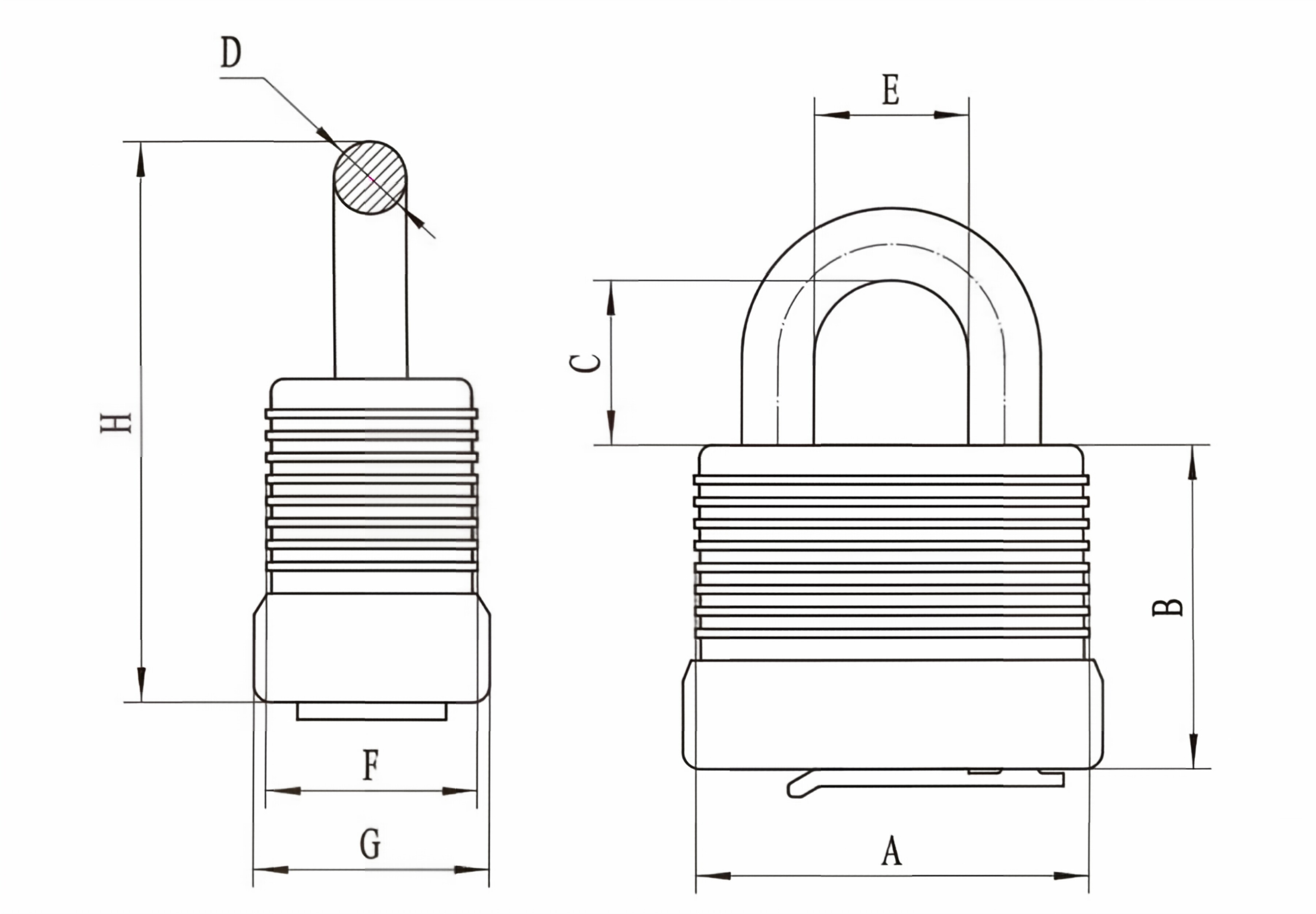

Technical Dimension Diagram

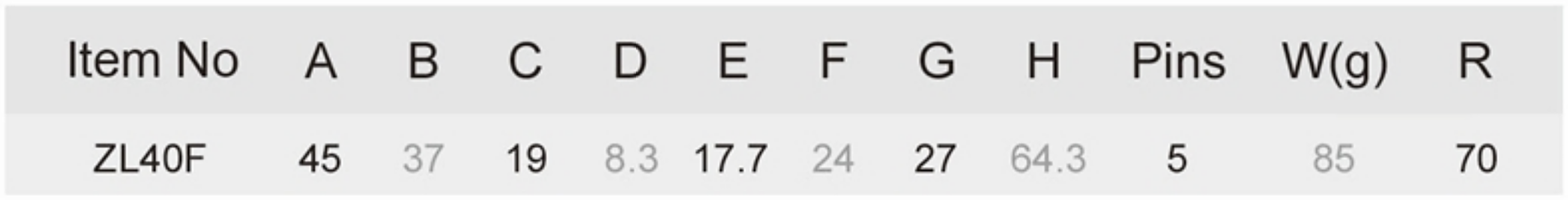

Specification Table - ZL40F

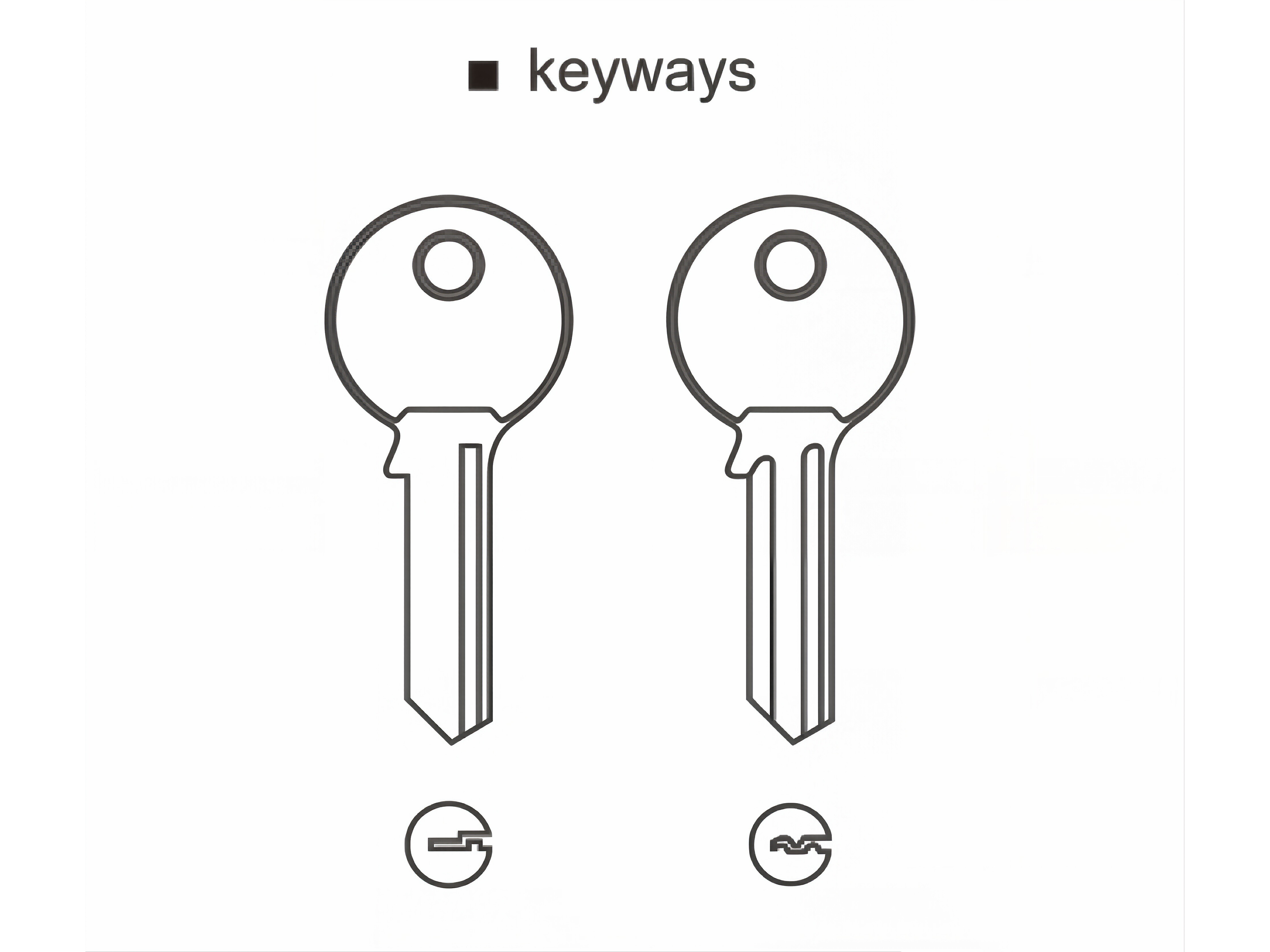

Key Ways Configuration
Product Overview
Premium padlock with solid brass body and cylinder, featuring hardened shackle with all angles chamfered for smooth operation and weatherproof construction for outdoor durability
- Solid Brass Body
- Solid Brass Cylinder
- Hardened Shackle
- All angles of lock-body are chamfered
- Weatherproof
Technical Specifications
| Item No | A | B | C | D | E | F | G | H | Pins | W(g) | R |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ZL40F | 45 | 37 | 19 | 8.3 | 17.7 | 24 | 27 | 64.3 | 5 | 85 | 70 |
* All dimensions are in millimeters (mm). Weight is in grams (g).
