Laminated Steel Padlock
Unique teal anodized padlock for creative workspaces
Product Photo

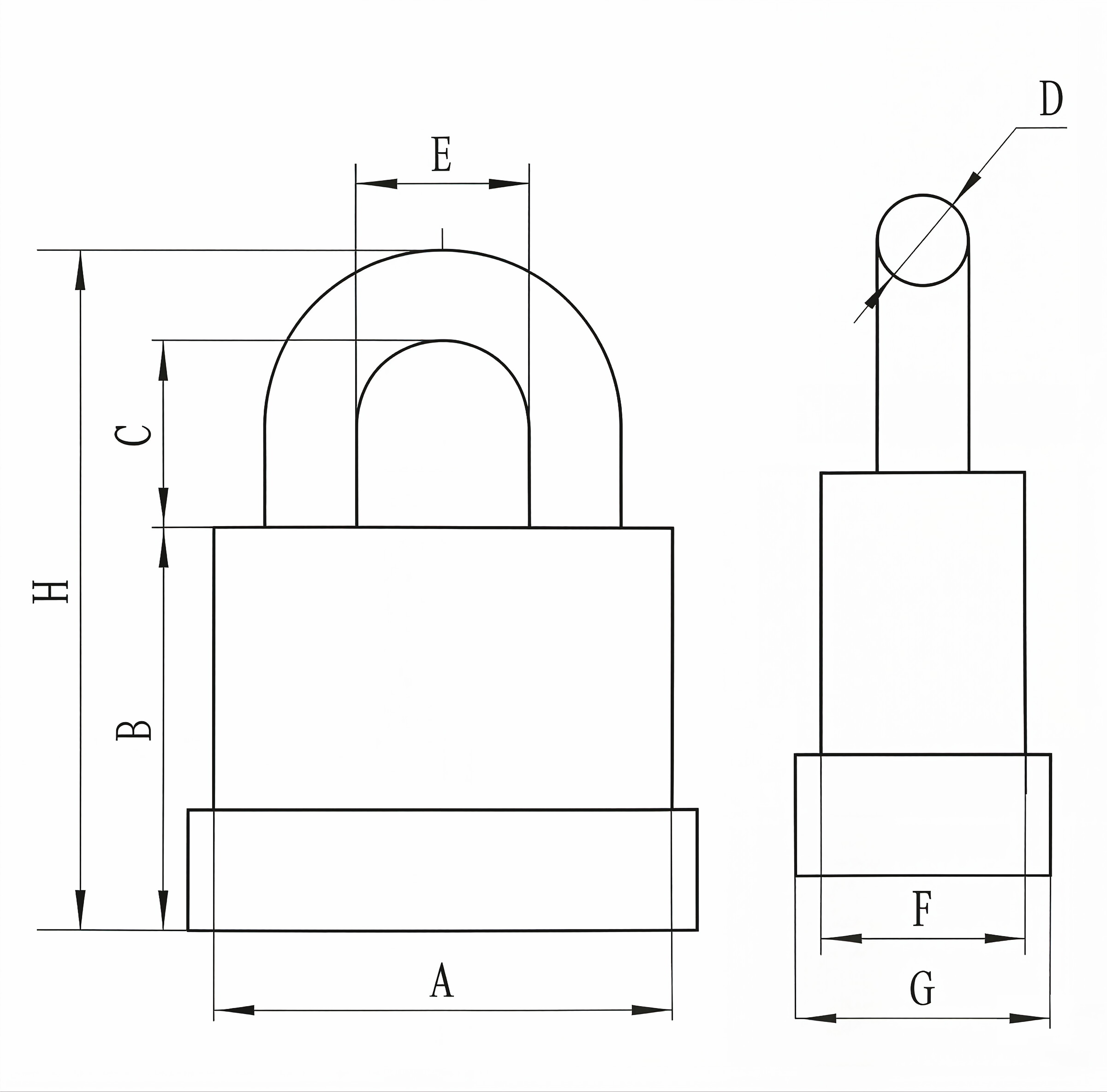

Technical Dimension Diagram

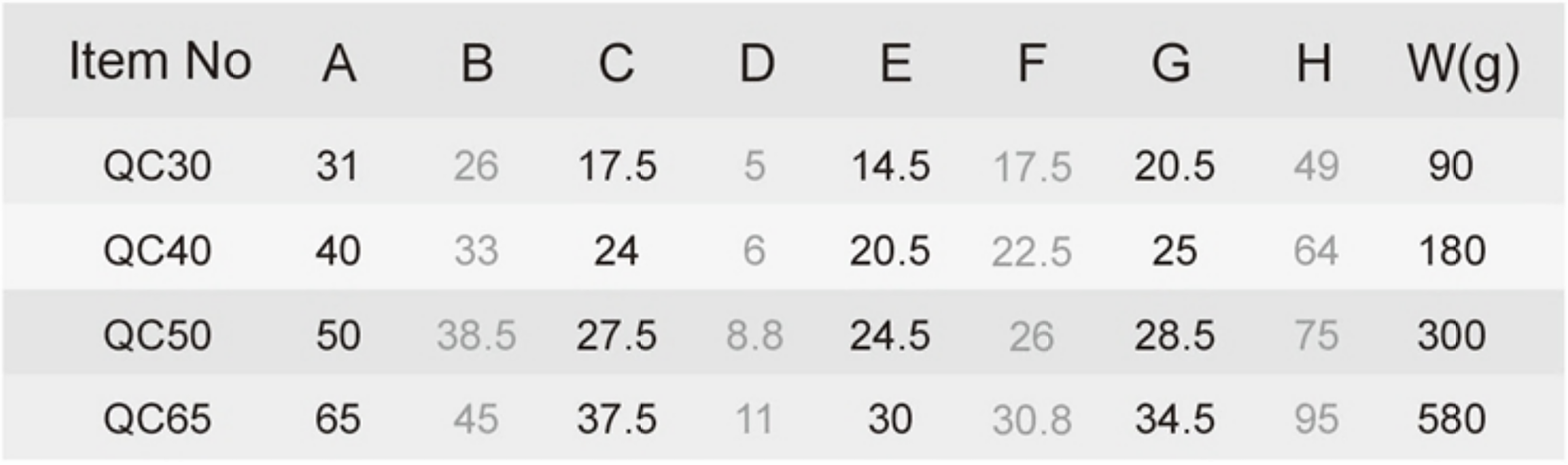

Specification Table - QC Series

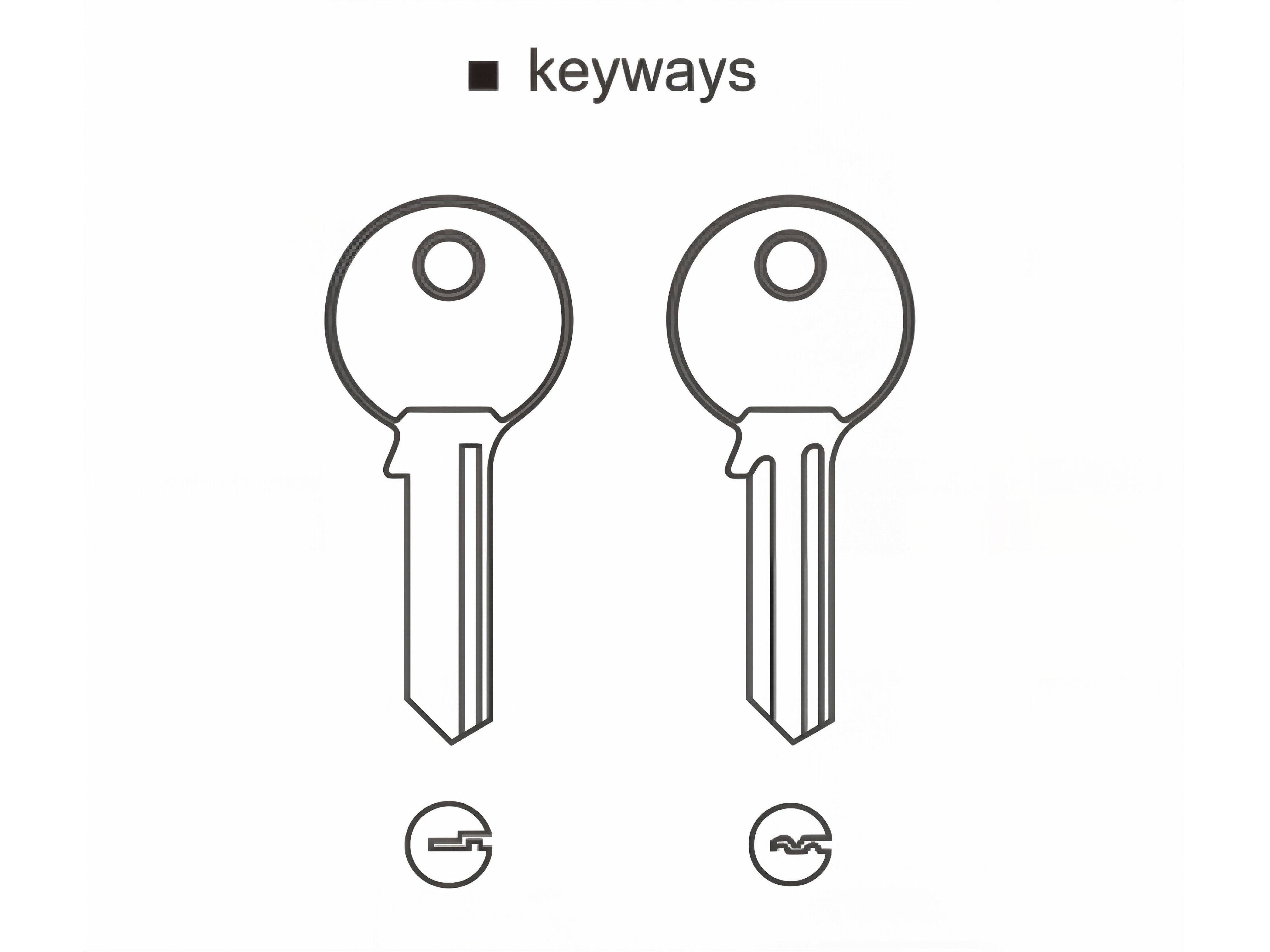

Key Ways Configuration
Product Overview
Unique teal anodized padlock for creative workspaces, solid iron lock bodies, solid brass cylinders, double-locking bolts (40-65mm), brass pins, 2 pcs iron keys.
Technical Specifications
| Item No | A | B | C | D | E | F | G | H | W(g) |
|---|---|---|---|---|---|---|---|---|---|
| QC30 | 31 | 26 | 17.5 | 5 | 14.5 | 17.5 | 20.5 | 49 | 90 |
| QC40 | 40 | 33 | 24 | 6 | 20.5 | 22.5 | 25 | 64 | 180 |
| QC50 | 50 | 38.5 | 27.5 | 8.8 | 24.5 | 26 | 28.5 | 75 | 300 |
| QC65 | 65 | 45 | 37.5 | 11 | 30 | 30.8 | 34.5 | 95 | 580 |
* All dimensions are in millimeters (mm). Weight is in grams (g).
