Heavy-duty Brass Padlock with Long Shackle
Premium solid brass padlock with extended shackle for enhanced reach

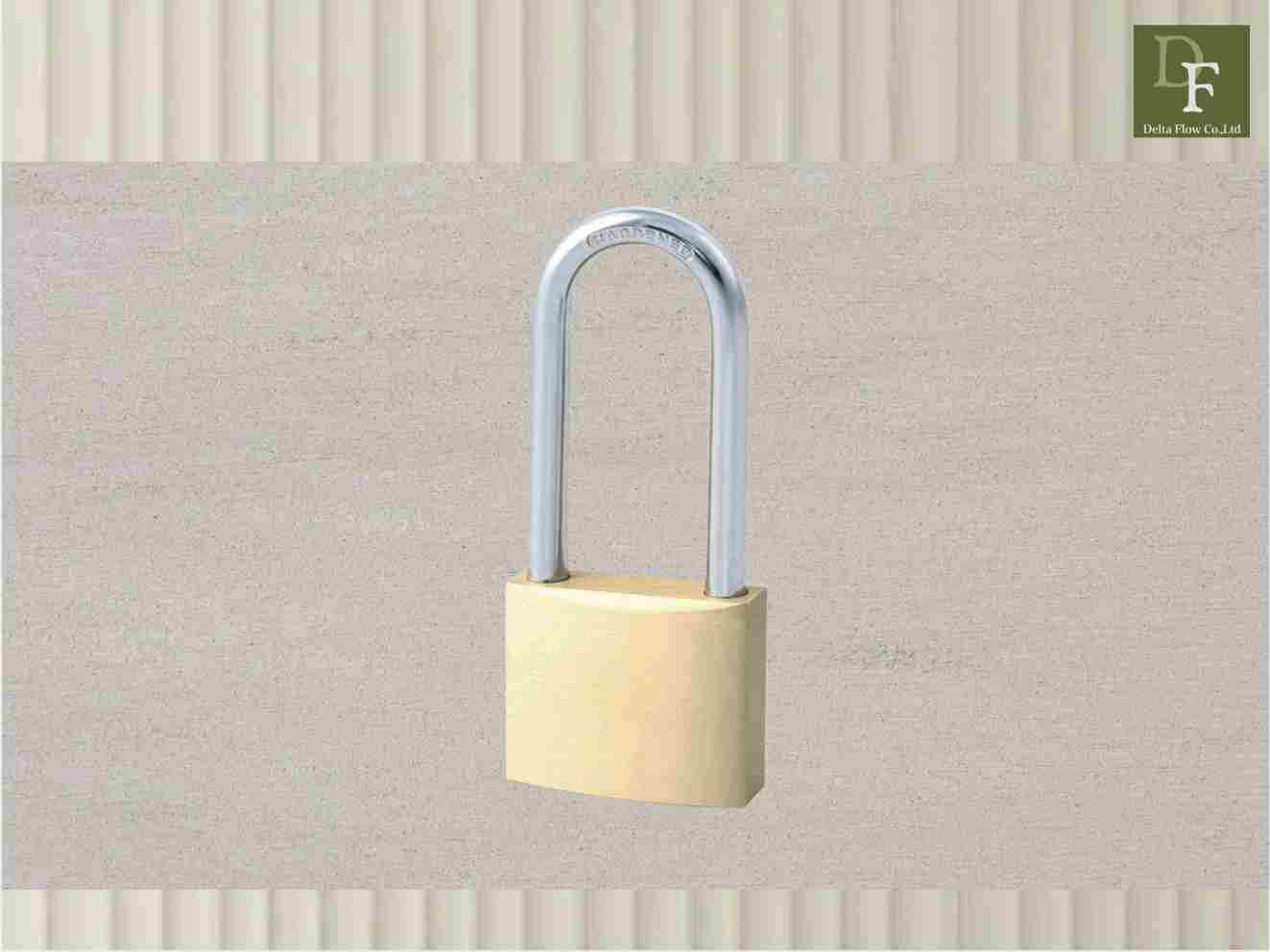

Product Photo

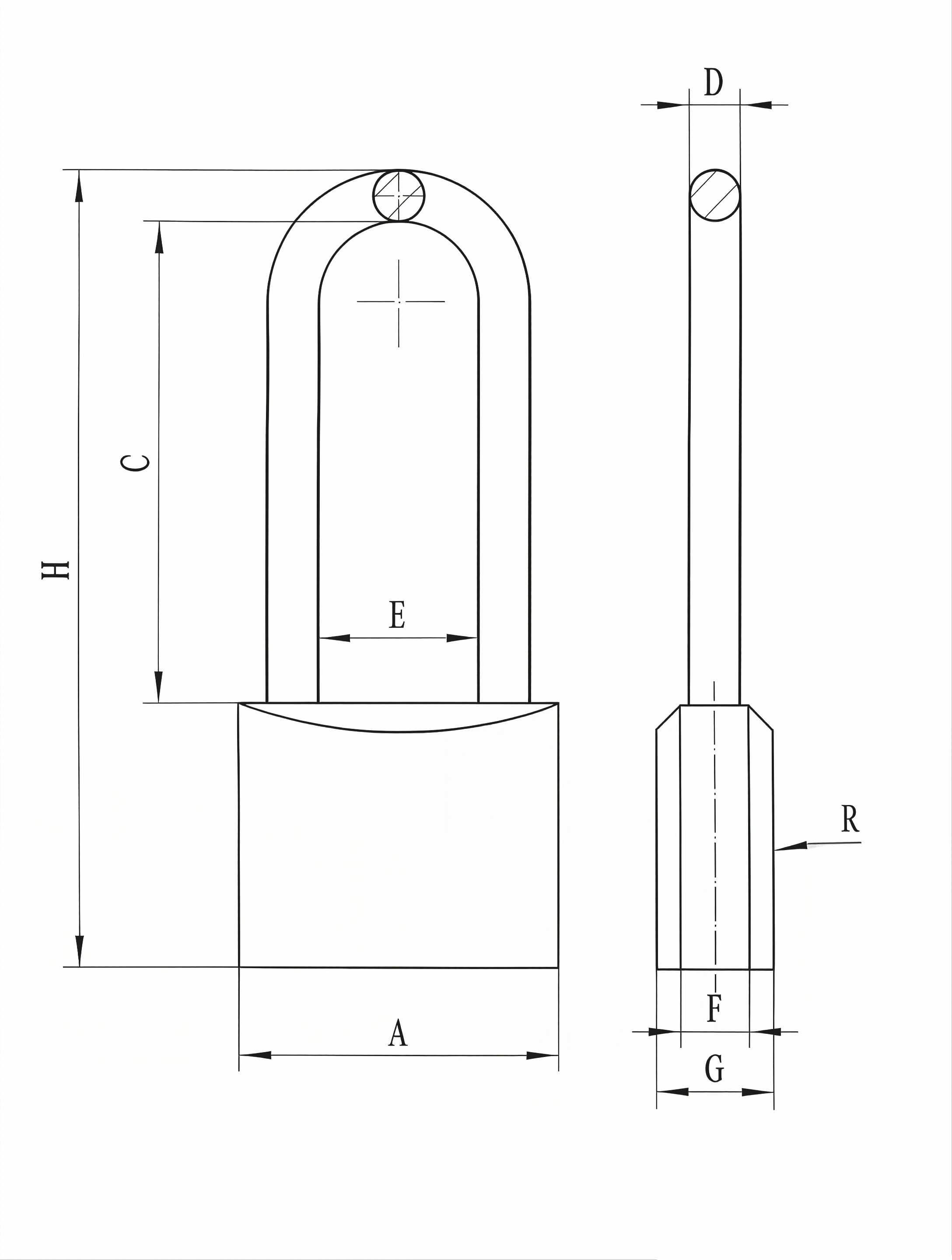

Technical Dimension Diagram

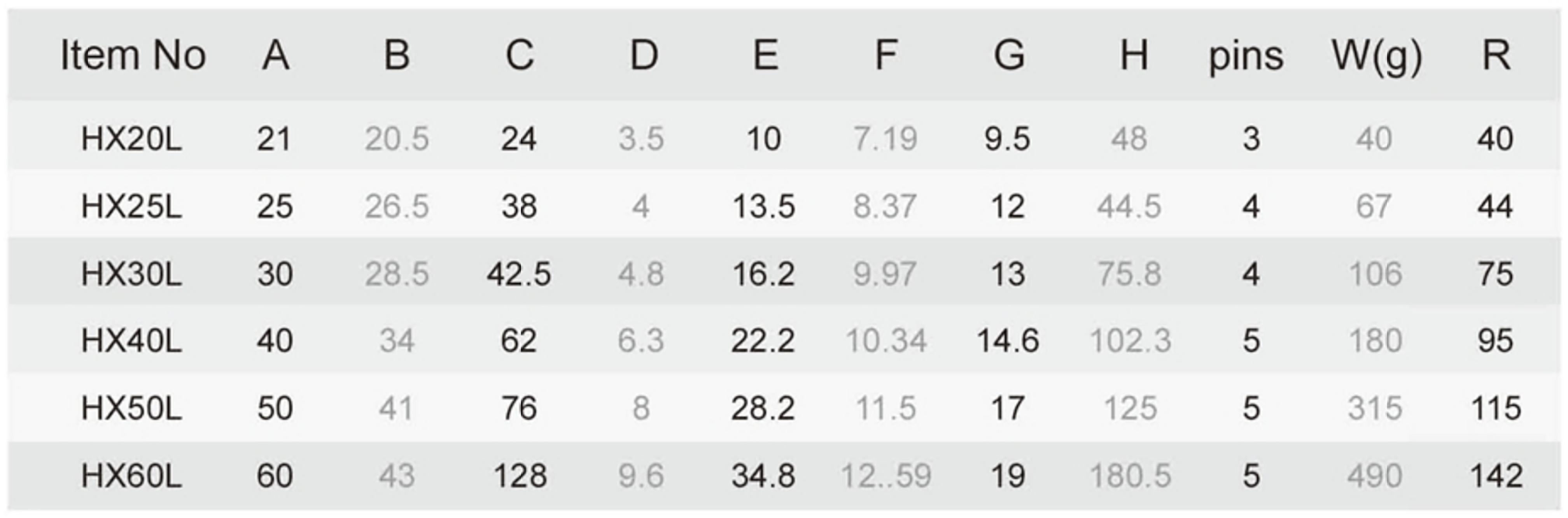

Specification Table - HX-L Series

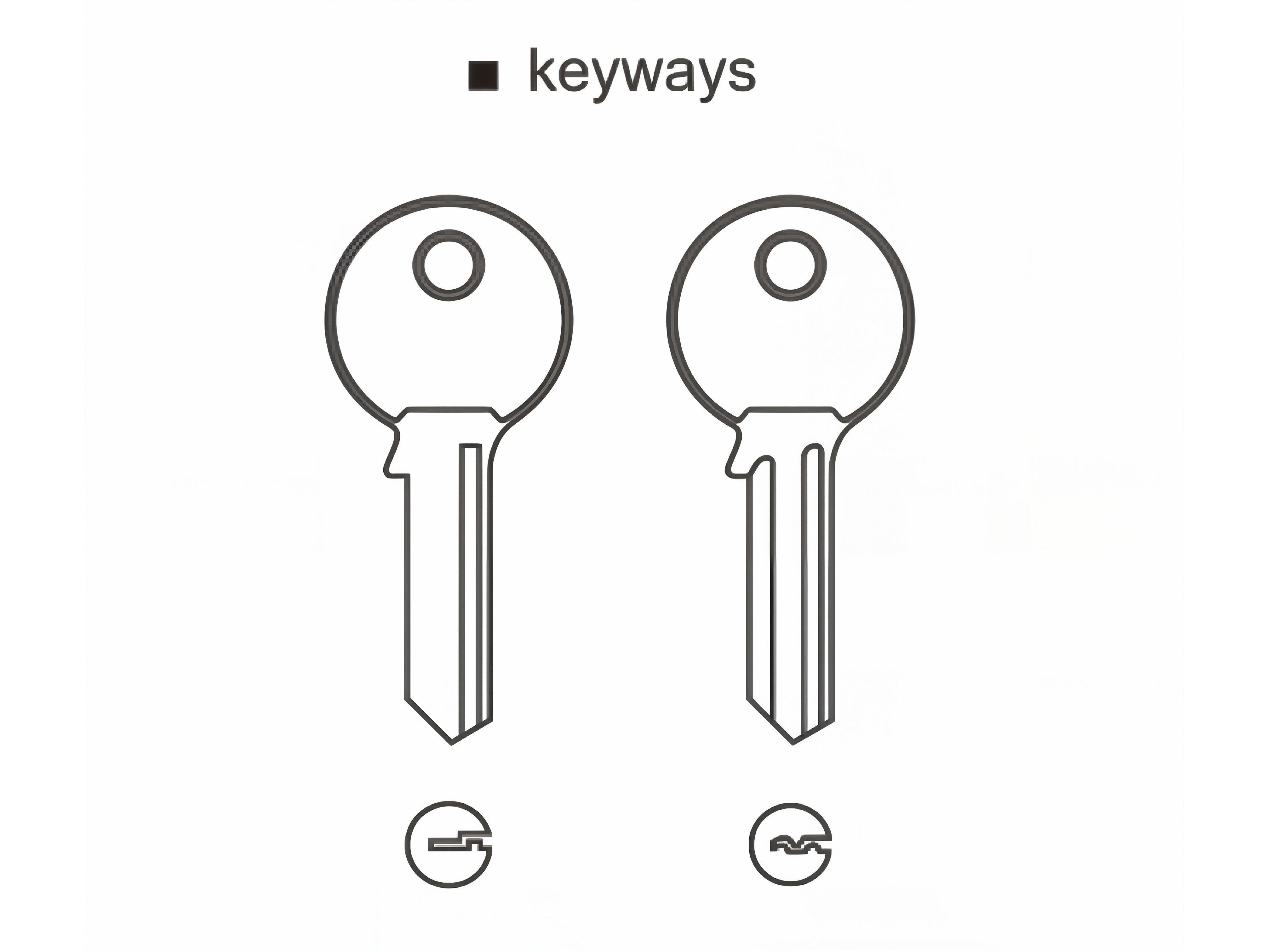

Key Ways Configuration
Product Overview
Premium padlock with solid brass body and cylinder, featuring hardened shackle with all angles chamfered for smooth operation and weatherproof construction for outdoor durability
- Solid Brass Body
- Solid Brass Cylinder
- Hardened Shackle
- All angles of lock-body are chamfered
- Weatherproof
Technical Specifications
| Item No | A | B | C | D | E | F | G | H | Pins | W(g) | R |
|---|---|---|---|---|---|---|---|---|---|---|---|
| HX20L | 21 | 20.5 | 24 | 3.5 | 10 | 7.19 | 9.5 | 48 | 3 | 40 | 40 |
| HX25L | 25 | 26.5 | 38 | 4 | 13.5 | 8.37 | 12 | 44.5 | 4 | 67 | 44 |
| HX30L | 30 | 28.5 | 42.5 | 4.8 | 16.2 | 9.97 | 13 | 75.8 | 4 | 106 | 75 |
| HX40L | 40 | 34 | 62 | 6.3 | 22.2 | 10.34 | 14.6 | 102.3 | 5 | 180 | 95 |
| HX50L | 50 | 41 | 76 | 8 | 28.2 | 11.5 | 17 | 125 | 5 | 315 | 115 |
| HX60L | 60 | 43 | 128 | 9.6 | 34.8 | 12.59 | 19 | 180.5 | 5 | 490 | 142 |
* All dimensions are in millimeters (mm). Weight is in grams (g).
