Heavy-duty Brass Padlock with Detachable Shackle
Heavy-duty brass padlock with detachable shackle for high-security applications

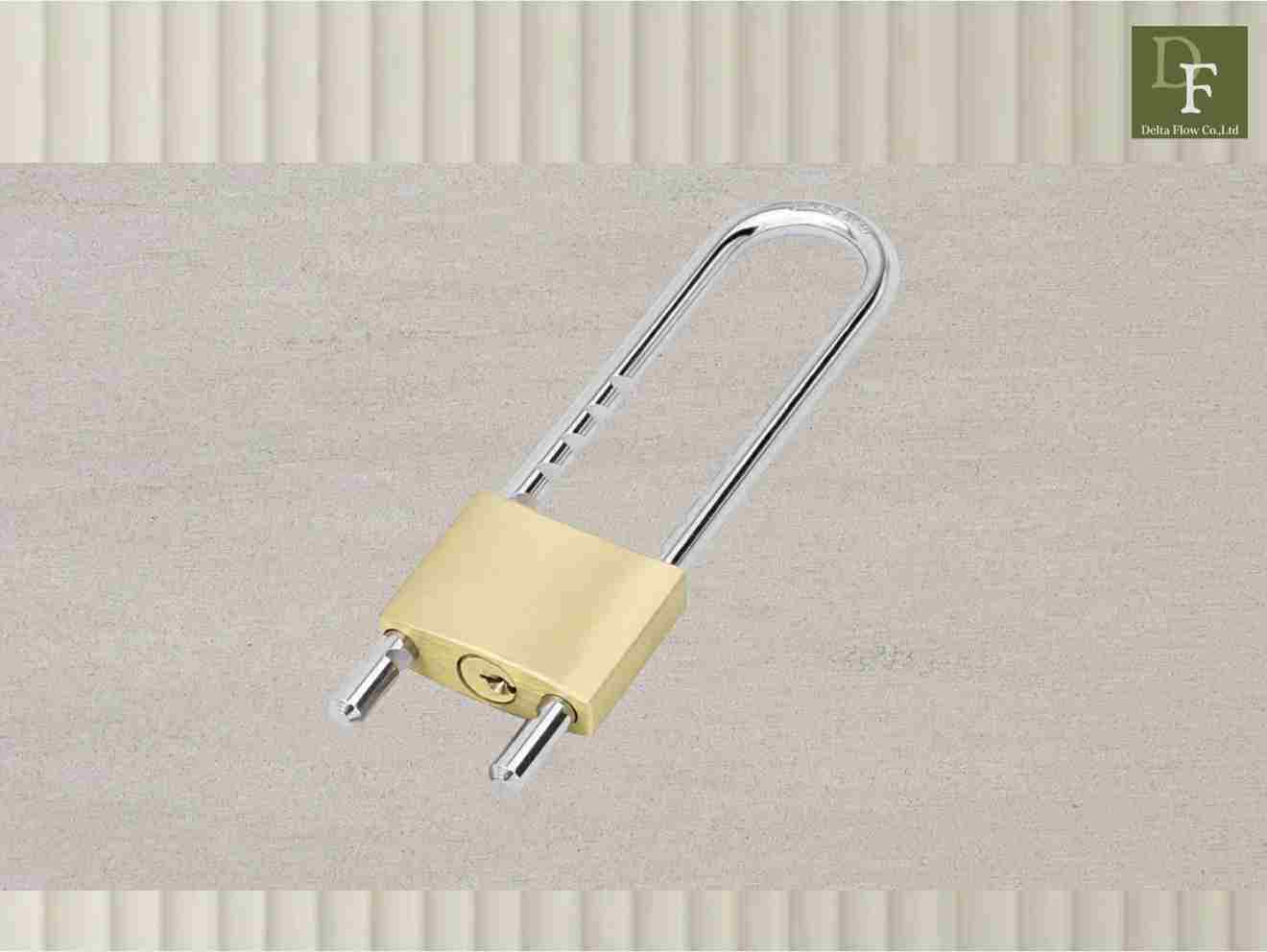

Product Photo

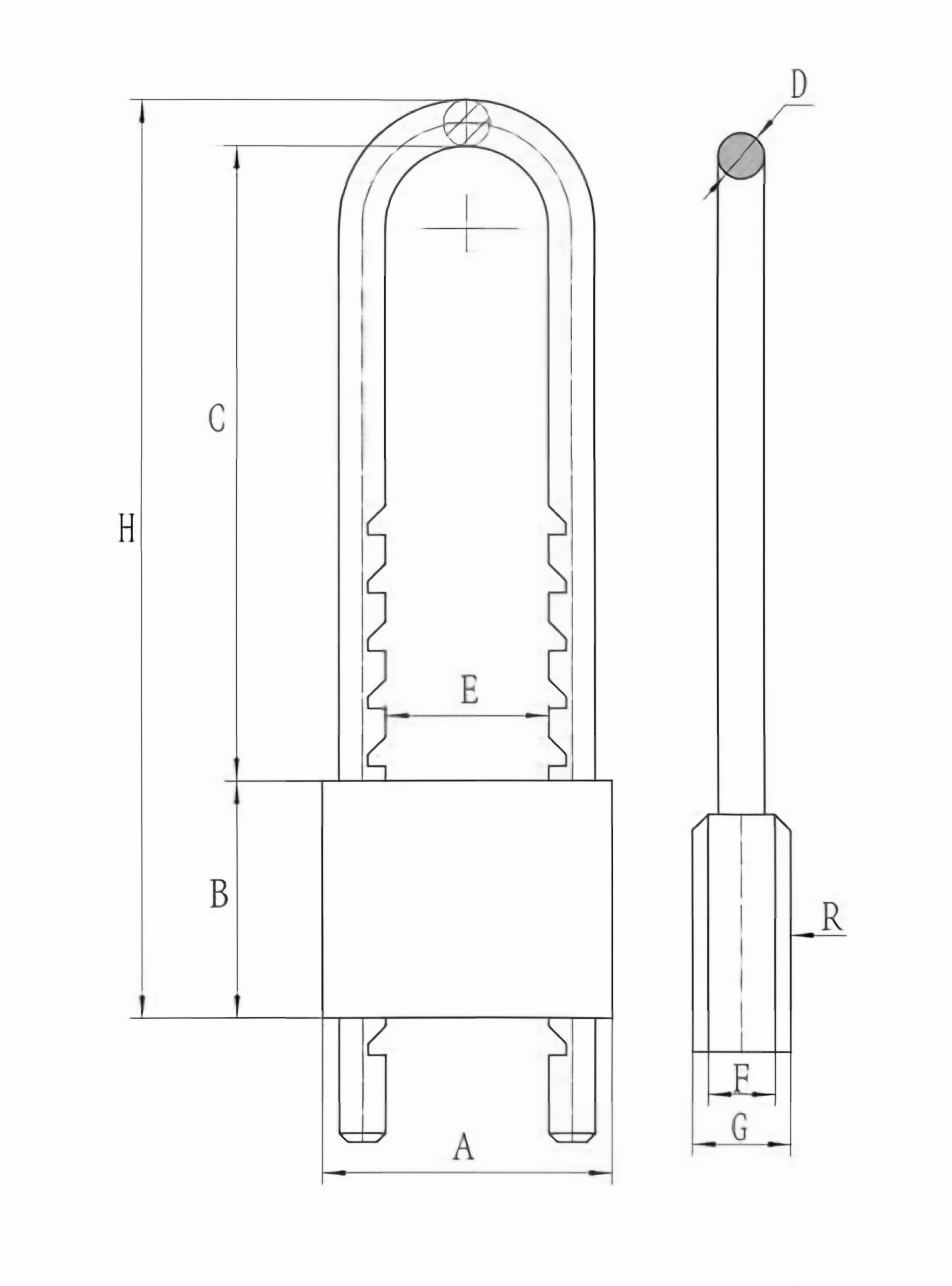

Technical Dimension Diagram

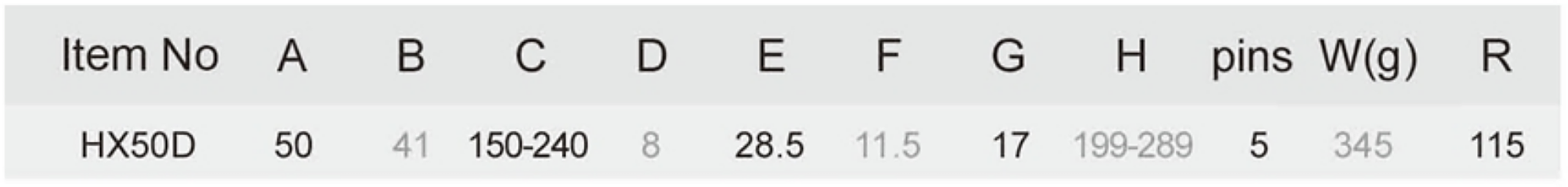

Specification Table - HX-D Series

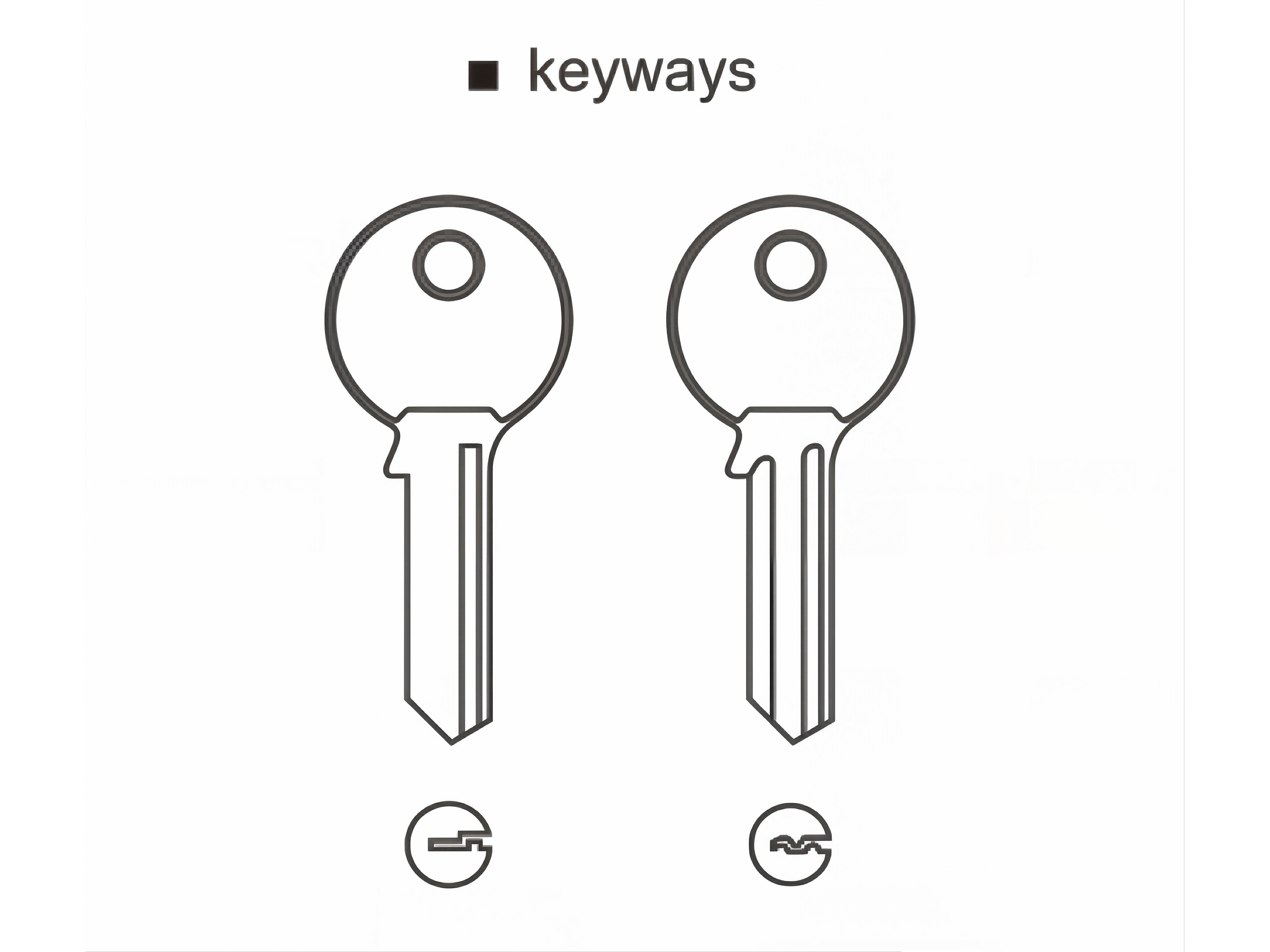

Key Ways Configuration
Product Overview
Heavy-duty padlock with detachable shackle design, solid brass body with chrome plating, stainless-steel & brass springs, includes 2 brass keys.
Technical Specifications
| Item No | A | B | C | D | E | F | G | H | Pins | W(g) | R |
|---|---|---|---|---|---|---|---|---|---|---|---|
| HX50D | 50 | 41 | 150-240 | 8 | 28.5 | 11.5 | 17 | 199-289 | 5 | 345 | 115 |
* All dimensions are in millimeters (mm). Weight is in grams (g).
