Rectangular Brass Padlock with Armored-steel Jacket
Premium solid brass padlock with weather-resistant finish

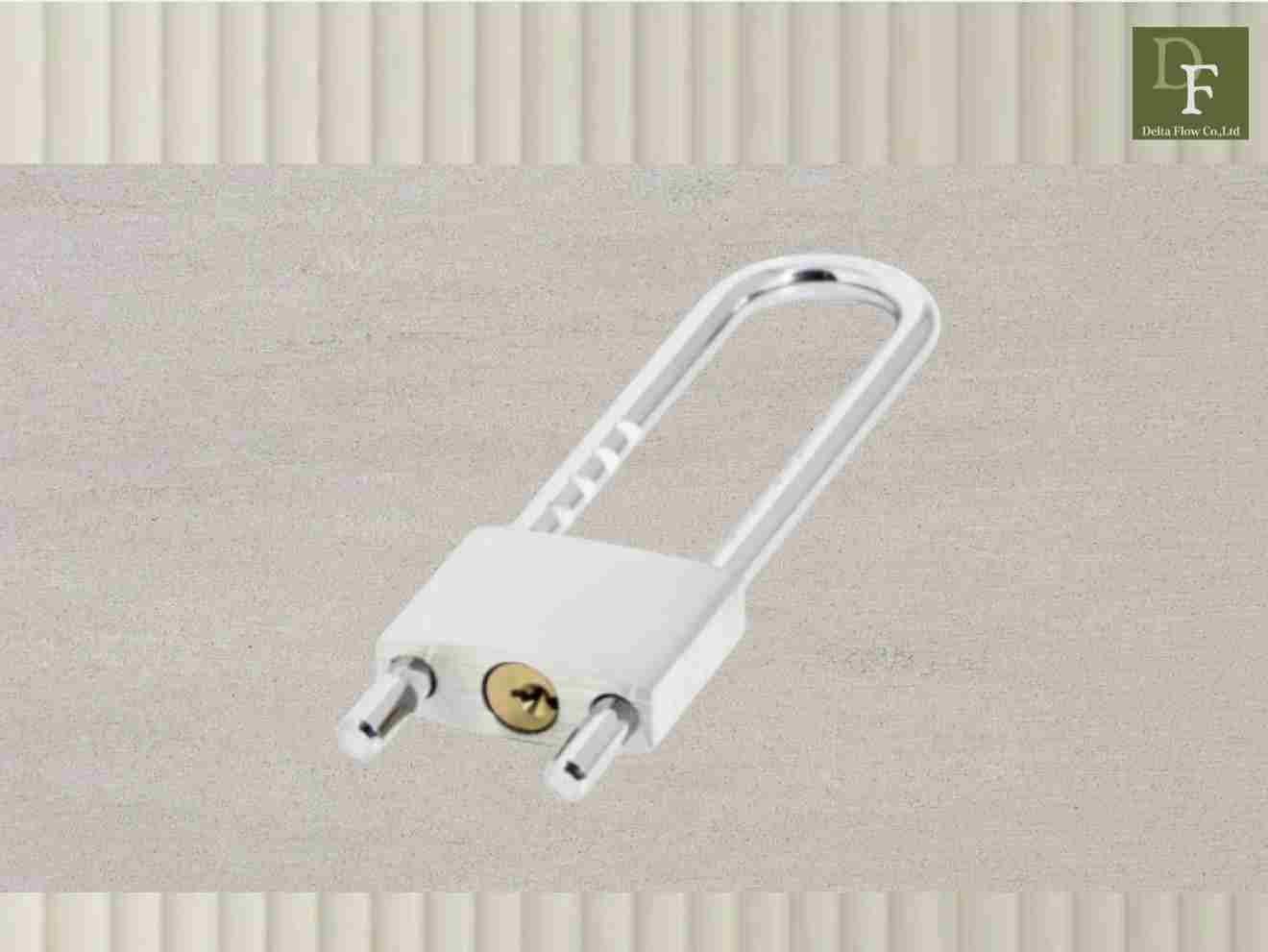

Product Photo

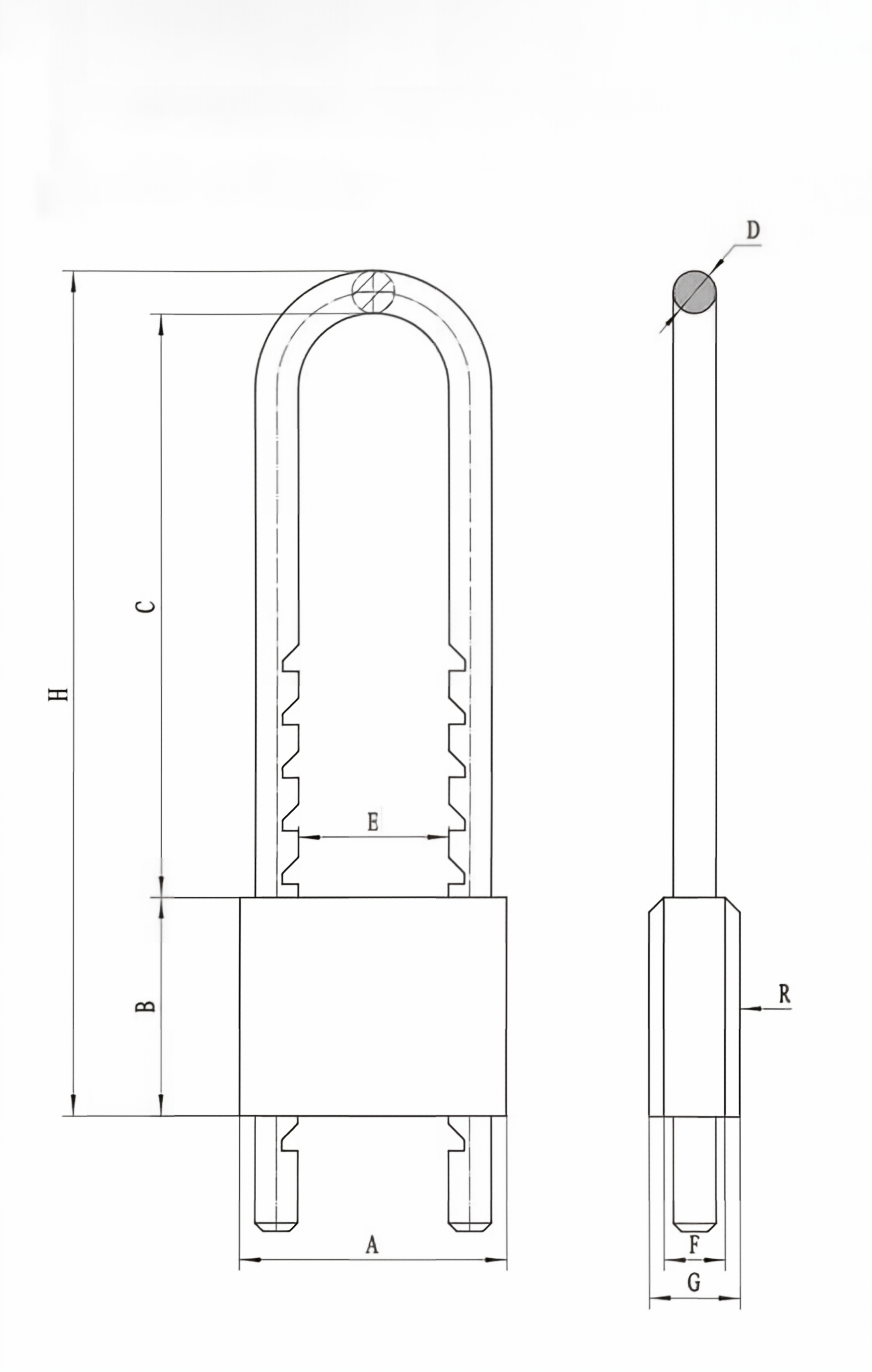

Technical Dimension Diagram

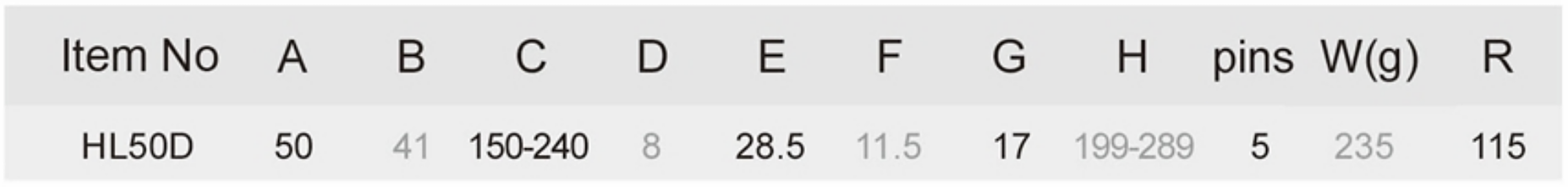

Specification Table - HL50D

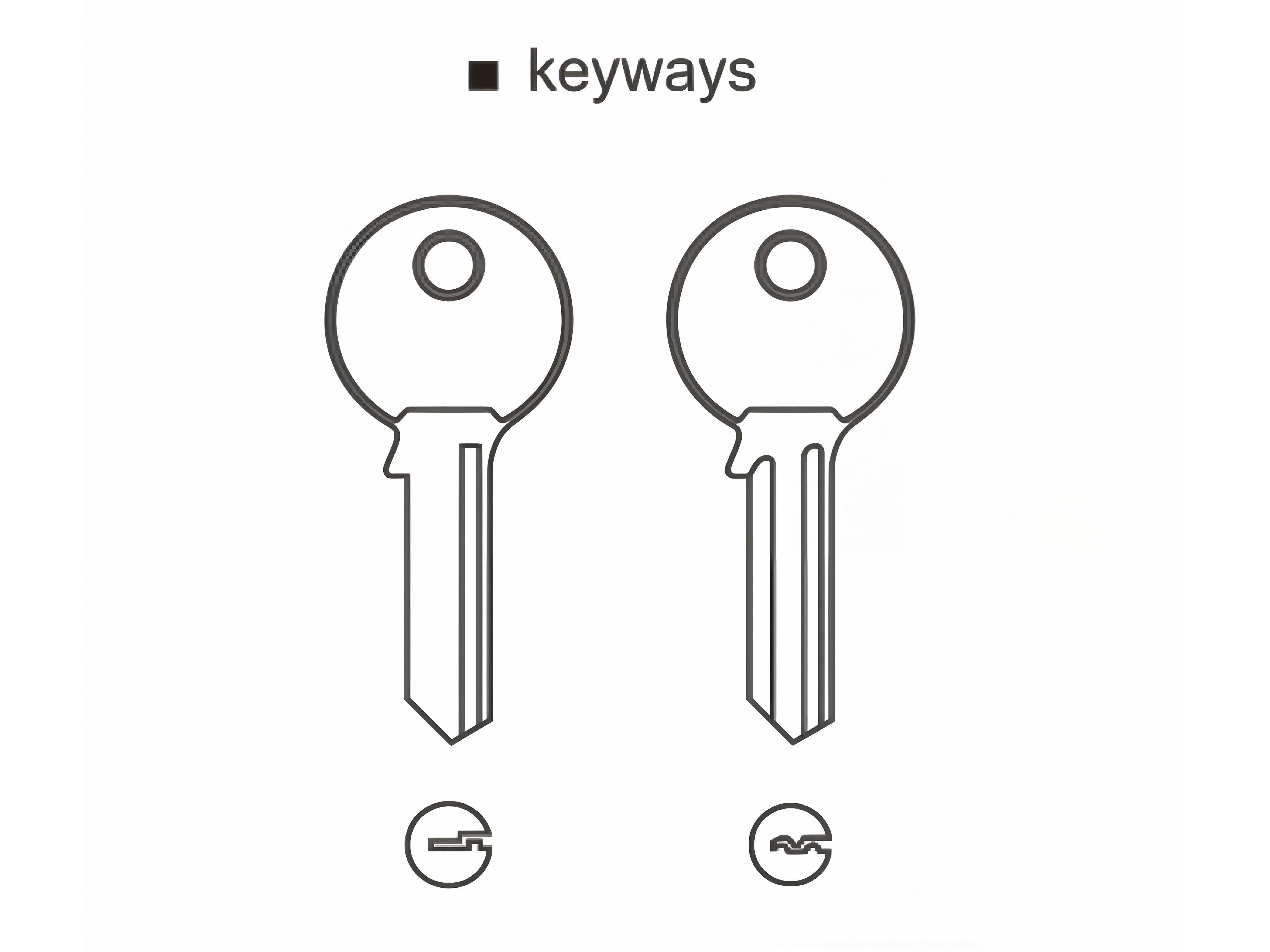

Key Ways Configuration
Product Overview
Premium padlock with solid brass body and cylinder, featuring hardened shackle with all angles chamfered for smooth operation and weatherproof construction for outdoor durability
- Solid Brass Body
- Solid Brass Cylinder
- Hardened Shackle
- All angles of lock-body are chamfered
- Weatherproof
Technical Specifications
| Item No | A | B | C | D | E | F | G | H | Pins | W(g) | R |
|---|---|---|---|---|---|---|---|---|---|---|---|
| HL50D | 50 | 41 | 150-240 | 8 | 28.5 | 11.5 | 17 | 199-289 | 5 | 235 | 115 |
* All dimensions are in millimeters (mm). Weight is in grams (g).
