Rectangular Brass Padlock with Armored-steel Jacket
Premium solid brass padlock with weather-resistant finish

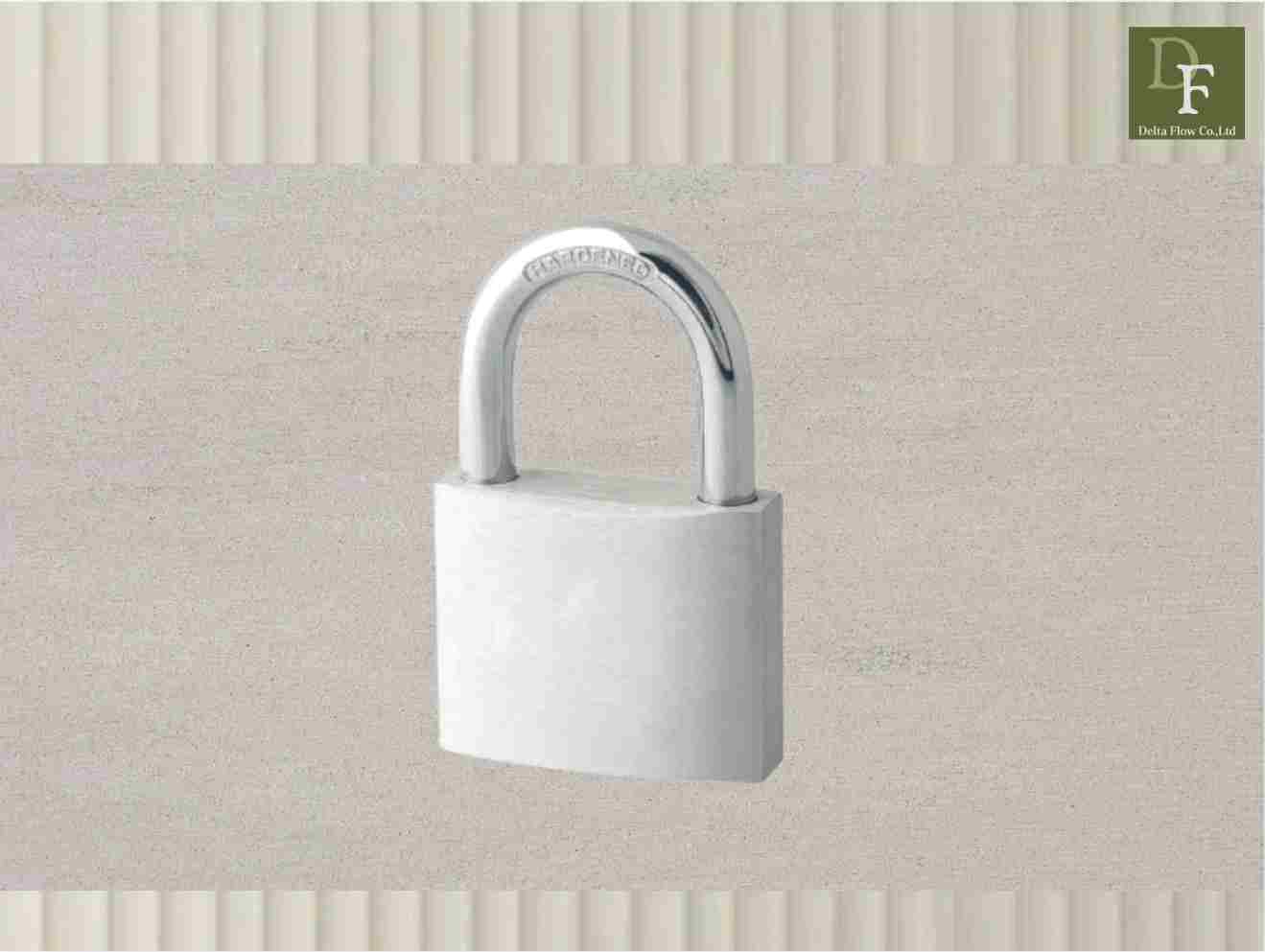

Product Photo

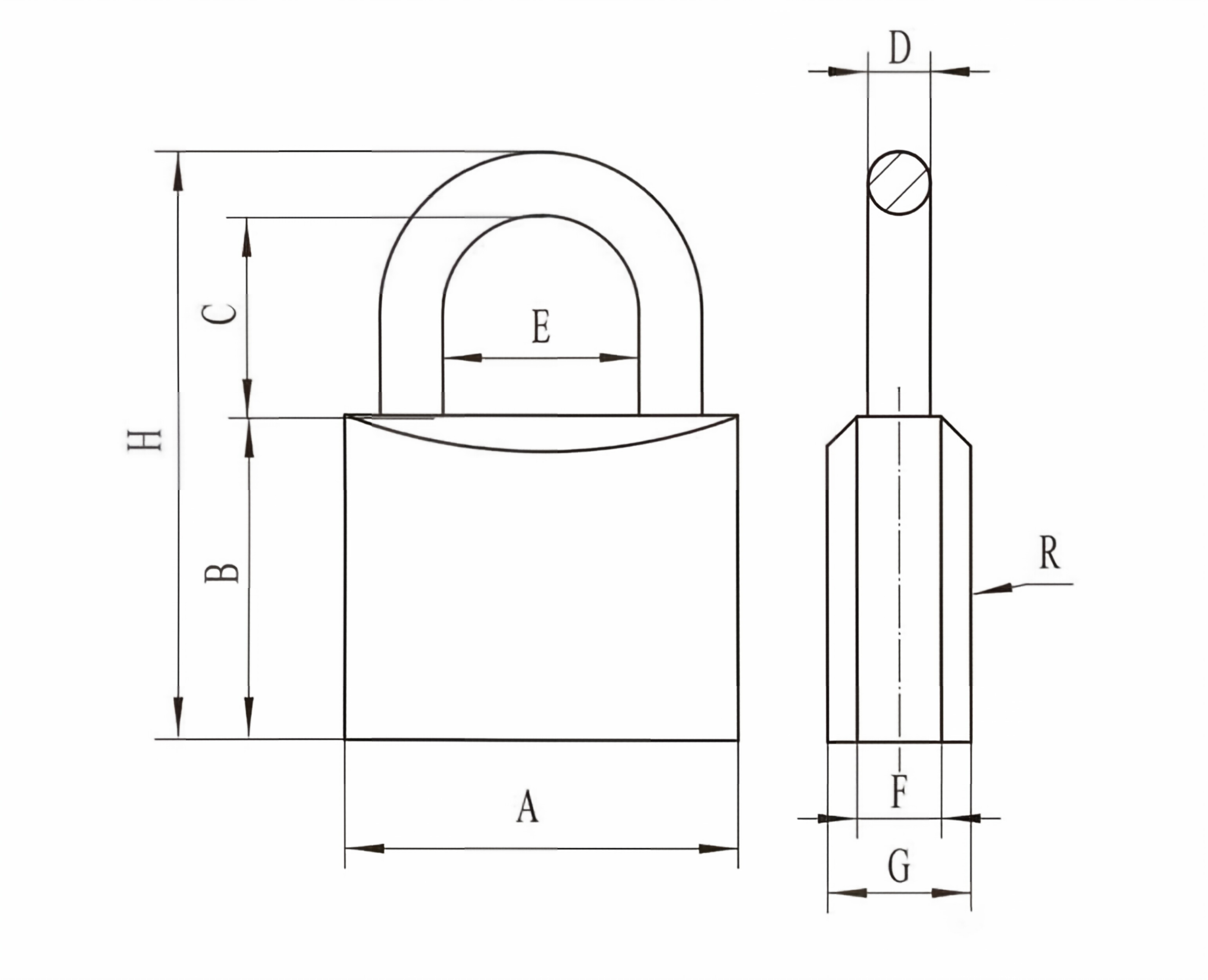

Technical Dimension Diagram

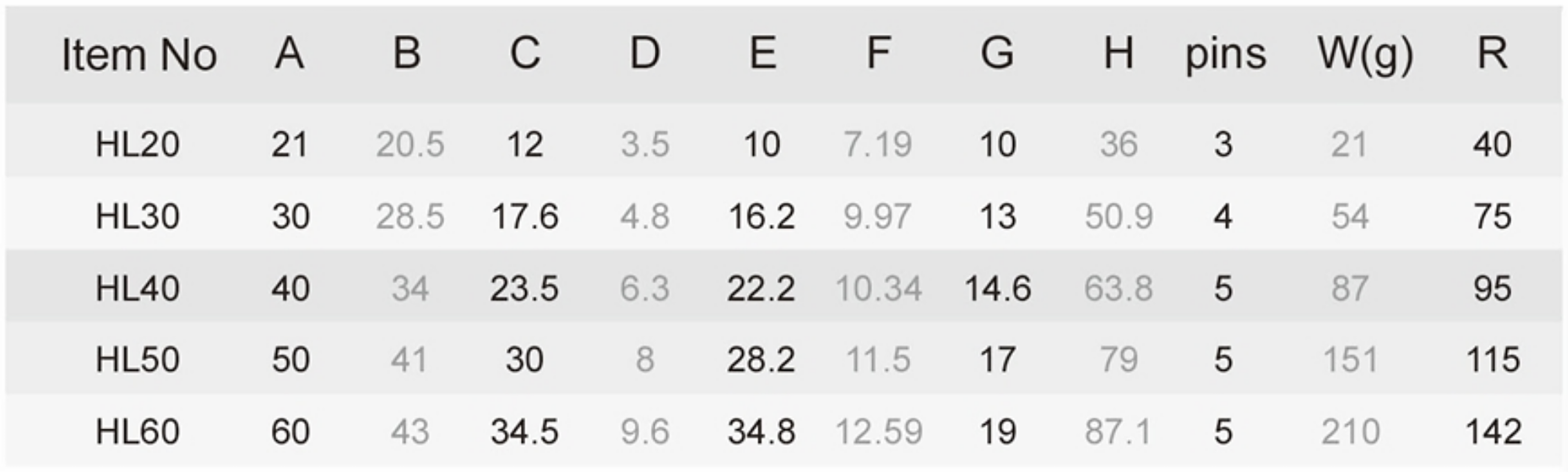

Specification Table - HL Series

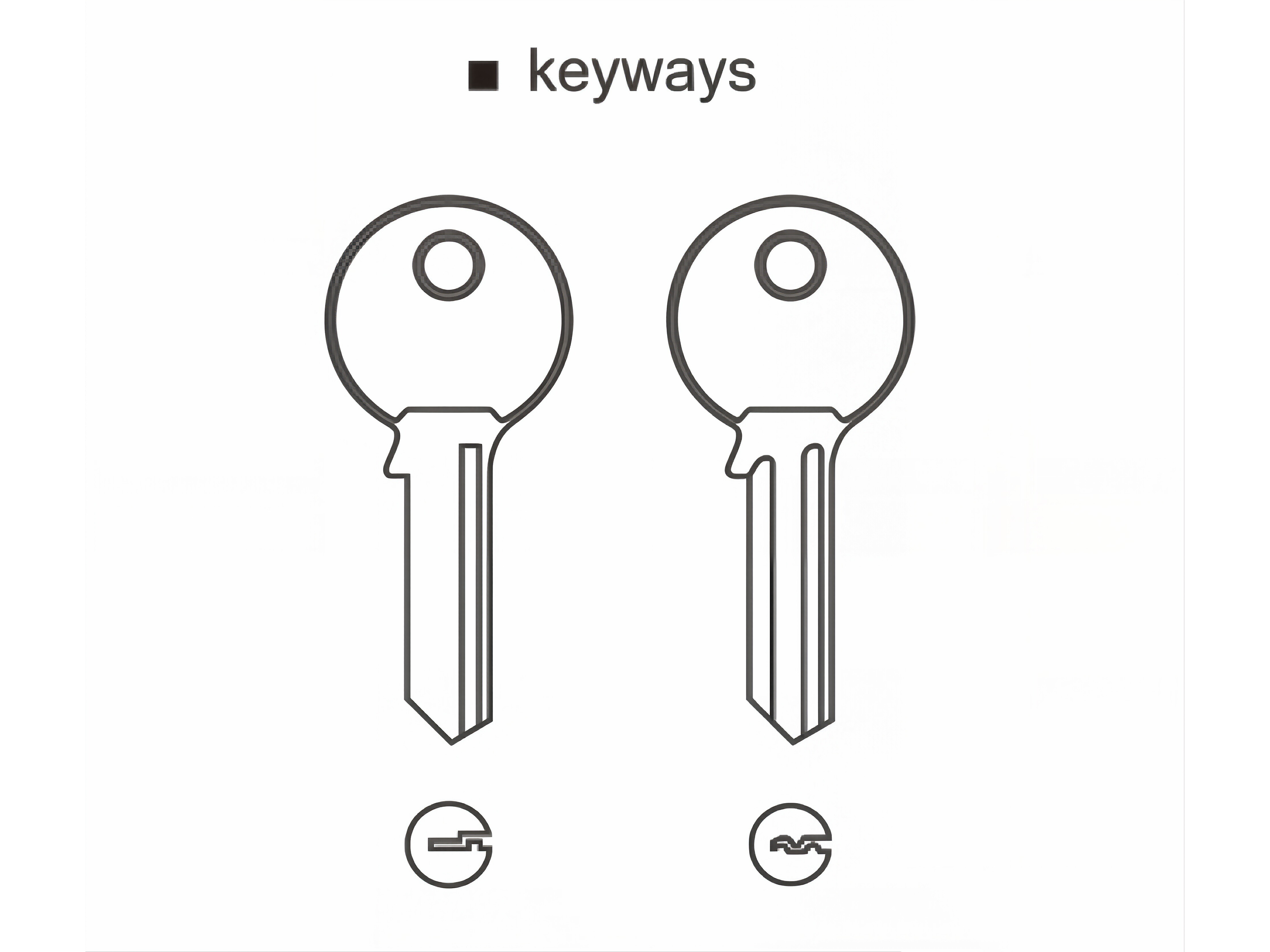

Key Ways Configuration
Product Overview
Premium padlock with solid brass body and cylinder, featuring hardened shackle with all angles chamfered for smooth operation and weatherproof construction for outdoor durability
- Solid Brass Body
- Solid Brass Cylinder
- Hardened Shackle
- All angles of lock-body are chamfered
- Weatherproof
Technical Specifications
| Item No | A | B | C | D | E | F | G | H | Pins | W(g) | R |
|---|---|---|---|---|---|---|---|---|---|---|---|
| HL20 | 21 | 20.5 | 12 | 3.5 | 10 | 7.19 | 10 | 36 | 3 | 21 | 40 |
| HL30 | 30 | 28.5 | 17.6 | 4.8 | 16.2 | 9.97 | 13 | 50.9 | 4 | 54 | 75 |
| HL40 | 40 | 34 | 23.5 | 6.3 | 22.2 | 10.34 | 14.6 | 63.8 | 5 | 87 | 95 |
| HL50 | 50 | 41 | 30 | 8 | 28.2 | 11.5 | 17 | 79 | 5 | 151 | 115 |
| HL60 | 60 | 43 | 34.5 | 9.6 | 34.8 | 12.59 | 19 | 87.1 | 5 | 210 | 142 |
* All dimensions are in millimeters (mm). Weight is in grams (g).
