Half-shackle protected Laminated Steel Padlock
Luxury PVD gold coated padlock for hospitality
Product Photo

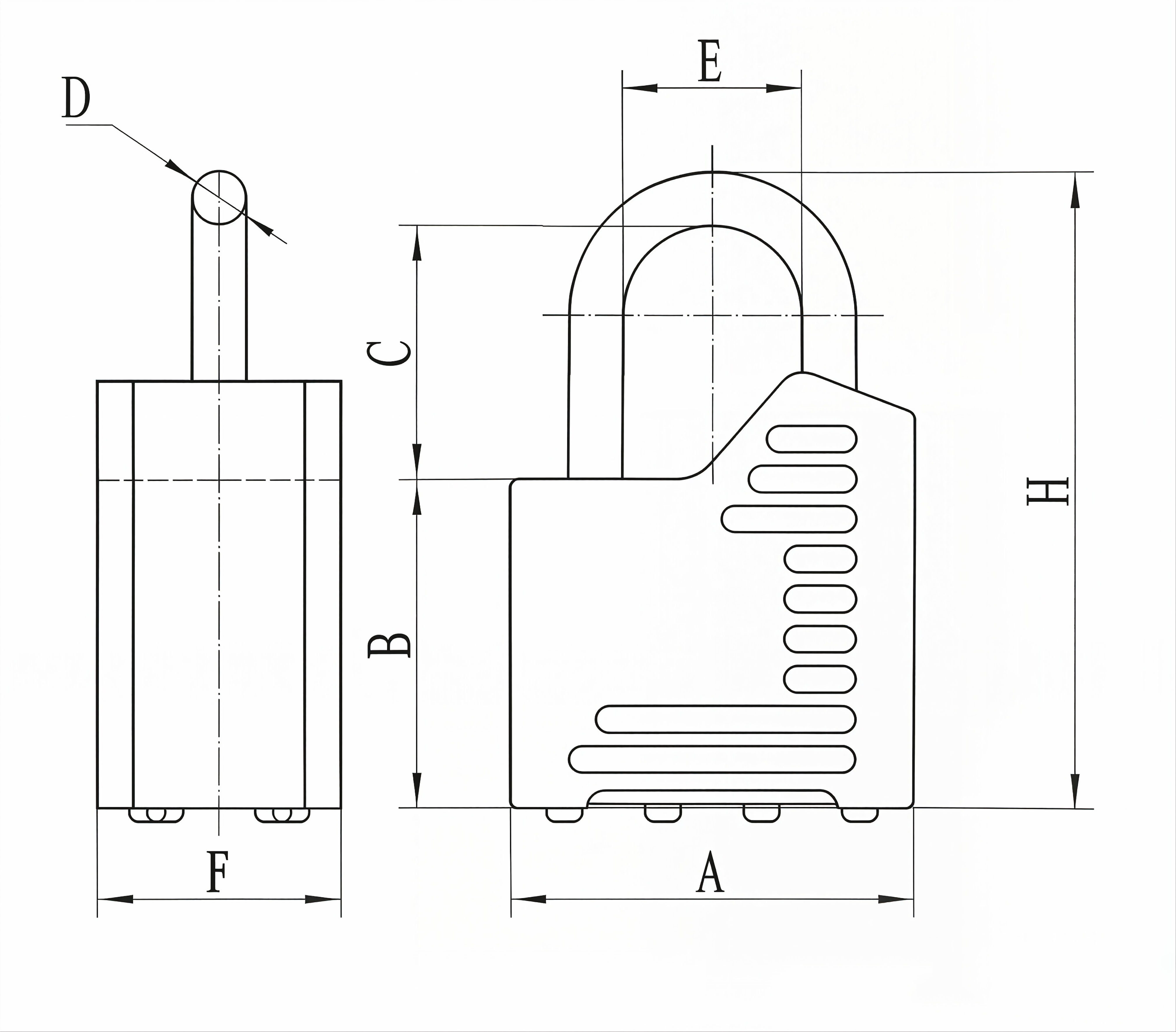

Technical Dimension Diagram
Specification Table - QC-BB Series

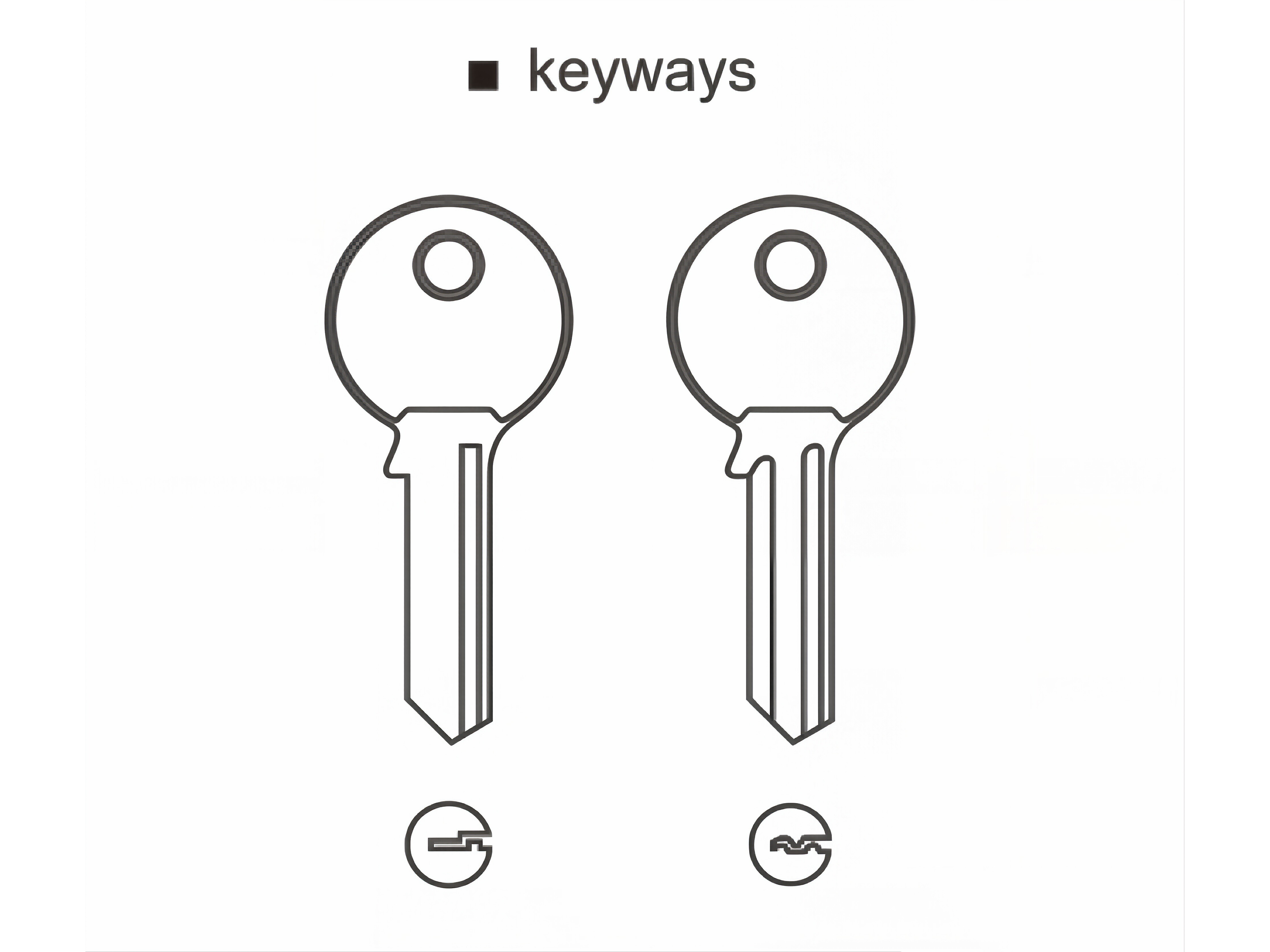

Key Ways Configuration
Product Overview
Luxury PVD gold coated padlock for hospitality applications, laminated Steel lock bodies, solid brass cylinders, double-locking bolts (40-65mm), unique appearance, 2 pcs iron keys.

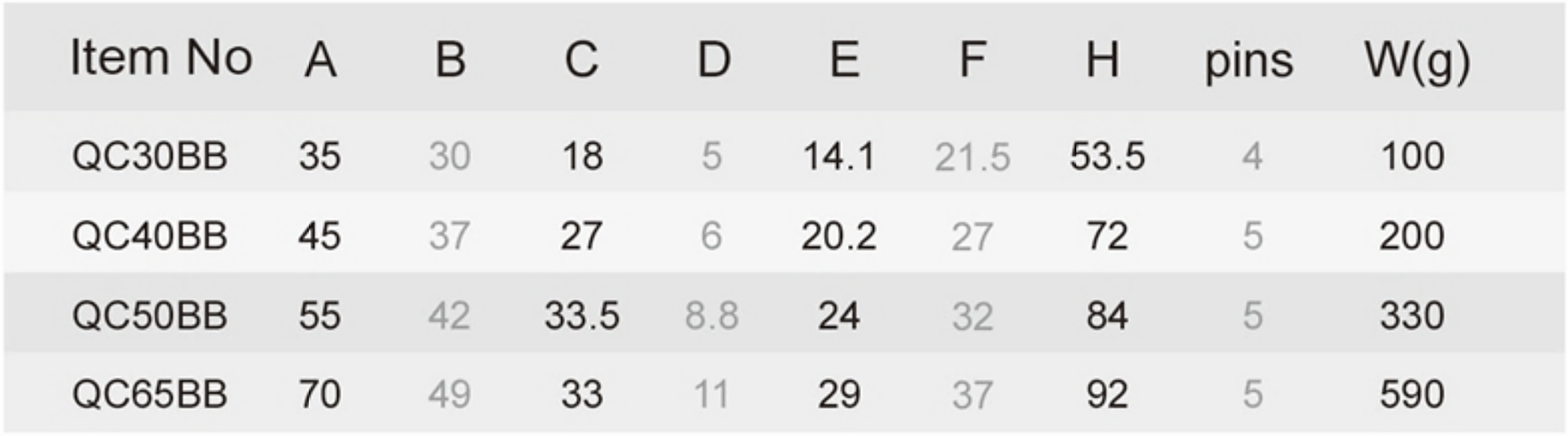

Technical Specifications
| Item No | A | B | C | D | E | F | H | Pins | W(g) |
|---|---|---|---|---|---|---|---|---|---|
| QC30BB | 35 | 30 | 18 | 5 | 14.1 | 21.5 | 53.5 | 4 | 100 |
| QC40BB | 45 | 37 | 27 | 6 | 20.2 | 27 | 72 | 5 | 200 |
| QC50BB | 55 | 42 | 33.5 | 8.8 | 24 | 32 | 84 | 5 | 330 |
| QC65BB | 70 | 49 | 33 | 11 | 29 | 37 | 92 | 5 | 590 |
* All dimensions are in millimeters (mm). Weight is in grams (g).
