Half Shackle-protected Brass Padlock (Square-shape)
Solid brass padlock with half shackle protection and square design for reliable everyday security
Product Photo

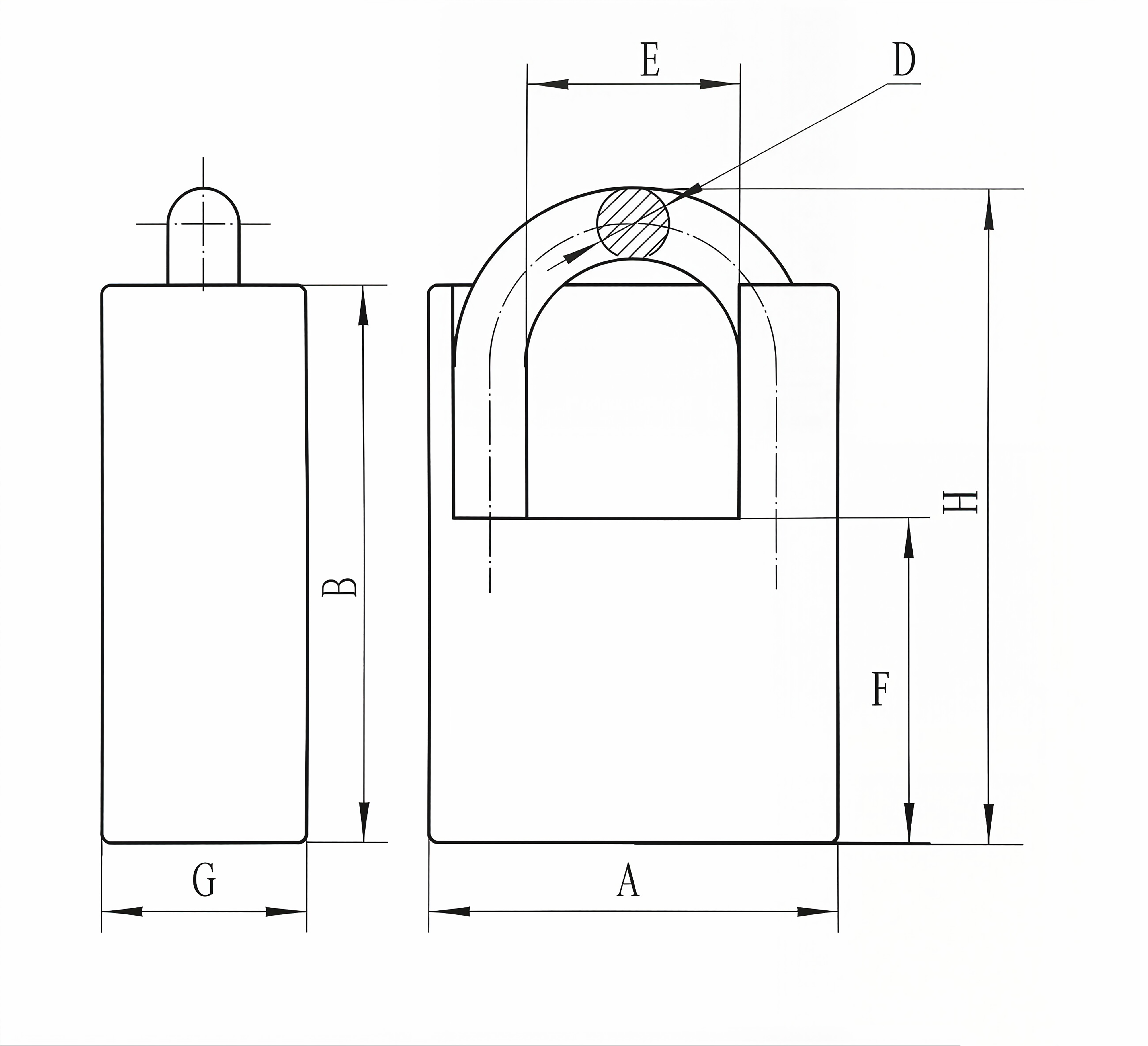

Technical Dimension Diagram
Specification Table - BF Series

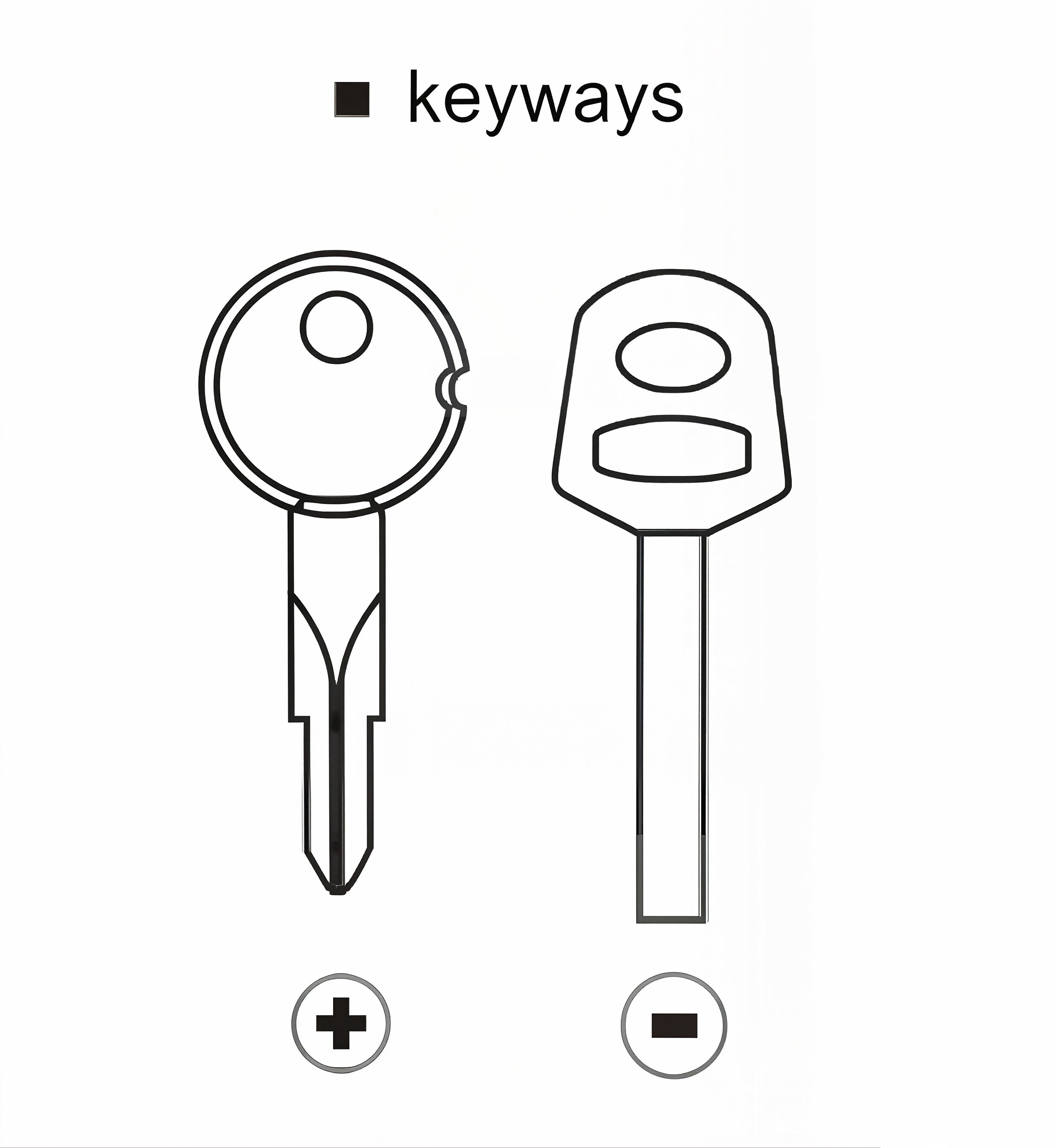

Key Ways Configuration
Product Overview
Premium padlock with solid brass body and cylinder, featuring hardened shackle with all angles chamfered for smooth operation and weatherproof construction for outdoor durability
- Solid Brass Body
- Solid Brass Cylinder
- Hardened Shackle
- All angles of lock-body are chamfered
- Weatherproof
Technical Specifications

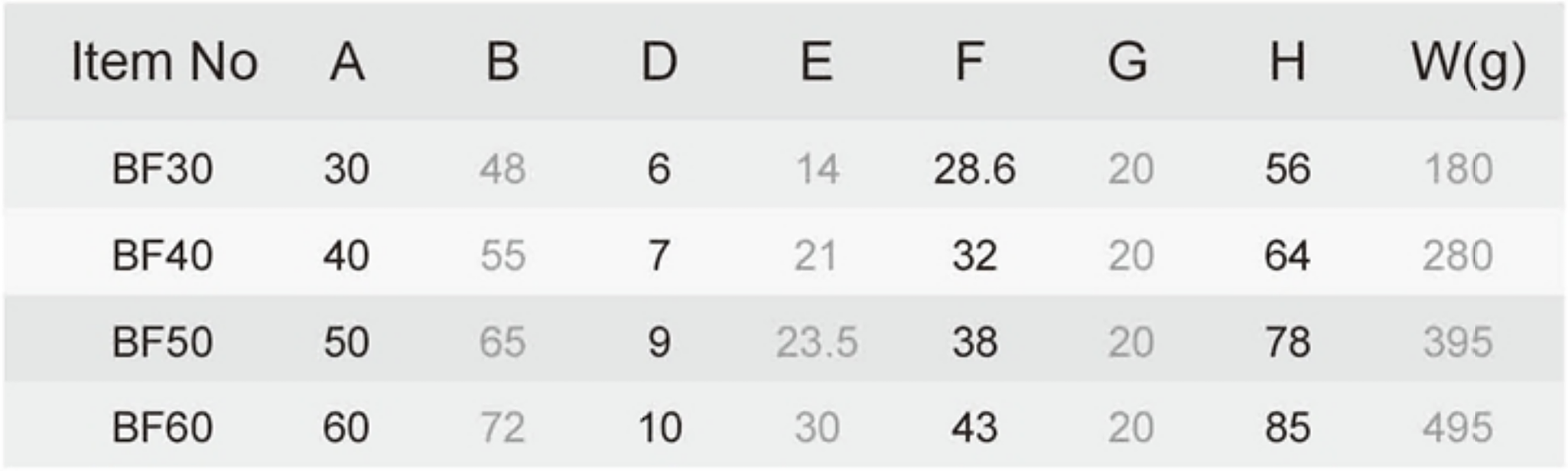

| Item No | A | B | C | D | E | F | G | H | W(g) |
|---|---|---|---|---|---|---|---|---|---|
| BF30 | 30 | 48 | 20 | 6 | 14 | 28.6 | 20 | 56 | 180 |
| BF40 | 40 | 55 | 20 | 7 | 21 | 32 | 20 | 64 | 280 |
| BF50 | 50 | 65 | 20 | 9 | 23.5 | 38 | 20 | 78 | 395 |
| BF60 | 60 | 72 | 20 | 10 | 30 | 43 | 20 | 85 | 495 |
* All dimensions are in millimeters (mm). Weight is in grams (g).
