Rectangular Brass Padlock with Armored-steel Jacket
Premium solid brass padlock with weather-resistant finish

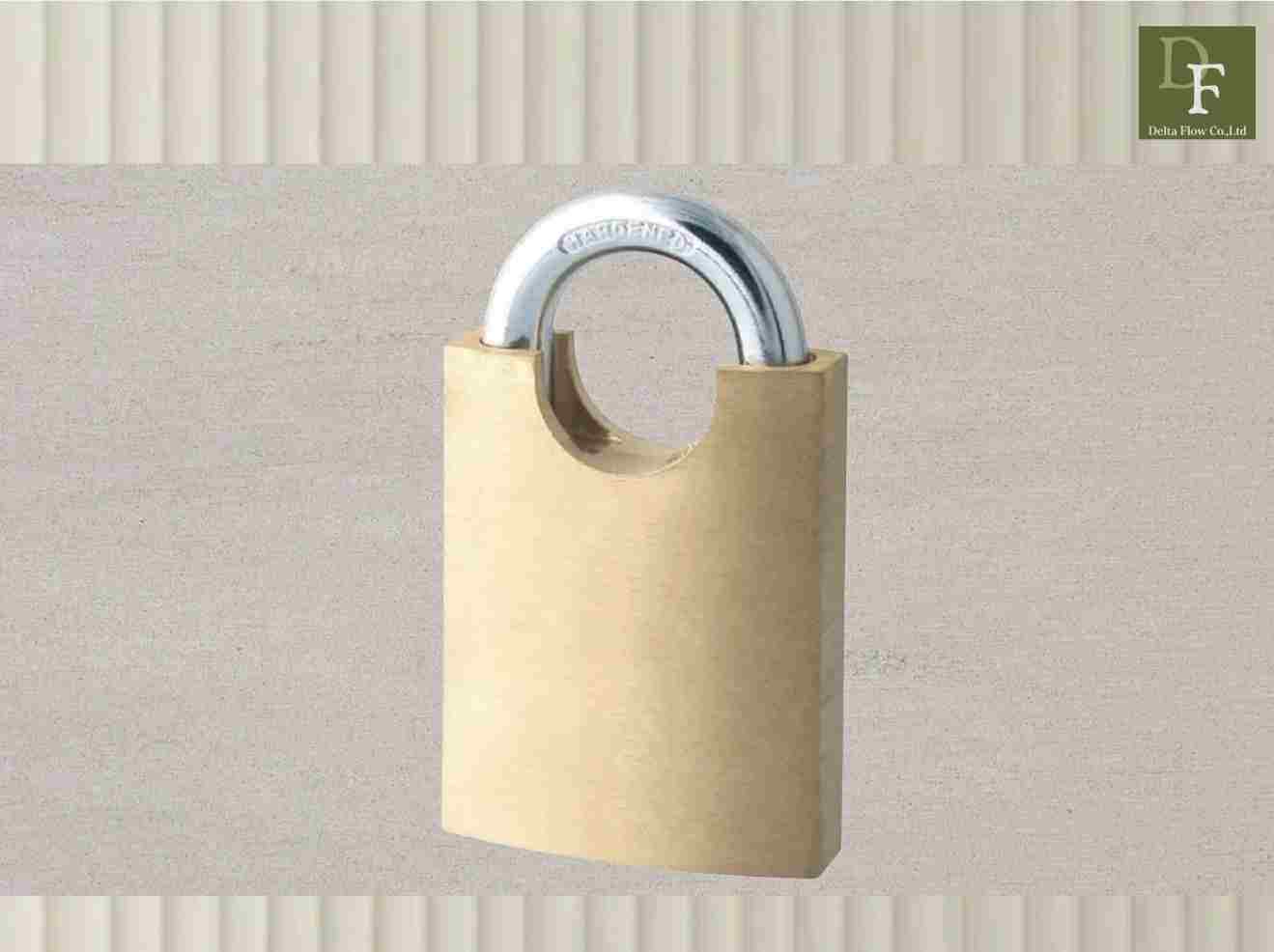

Product Photo

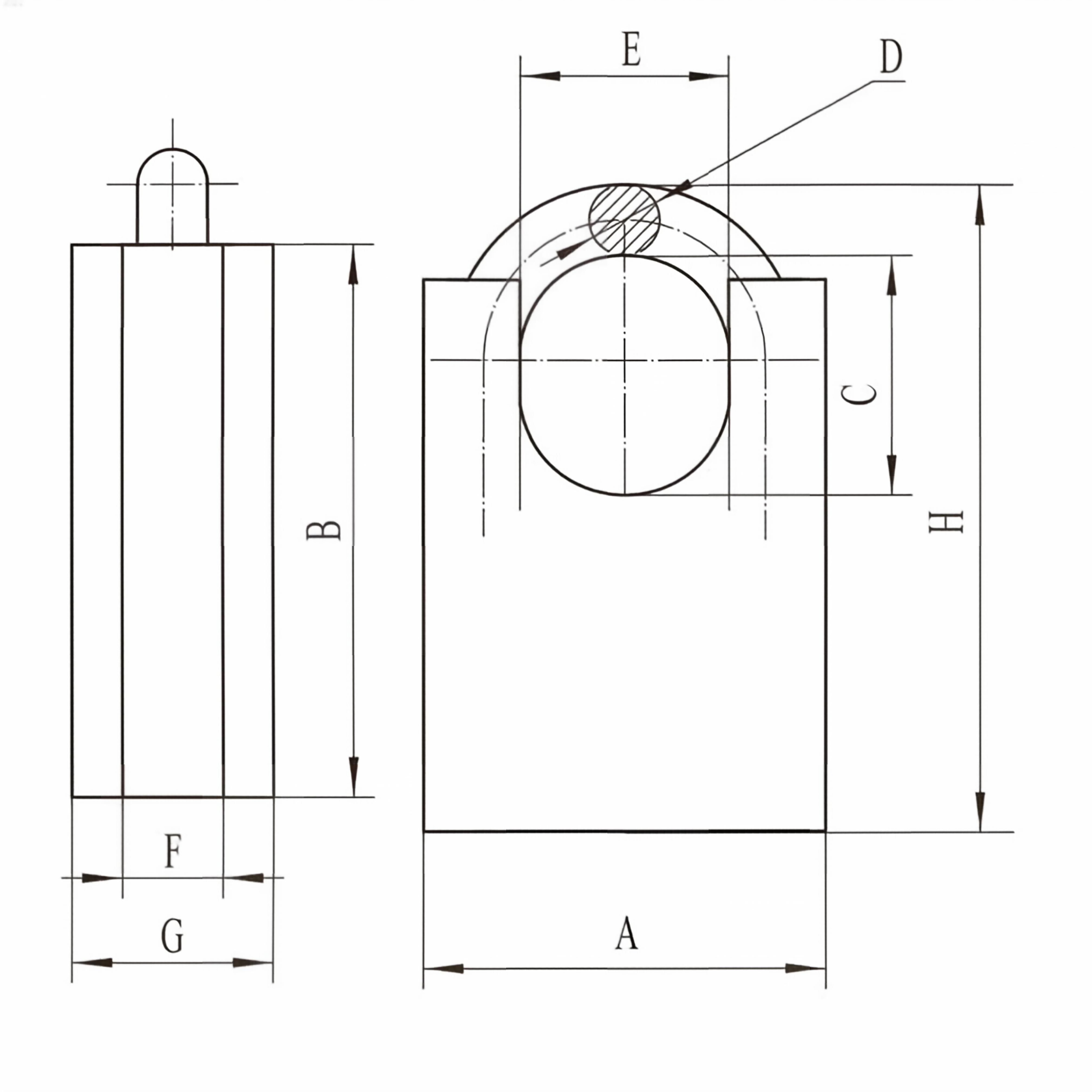

Technical Dimension Diagram

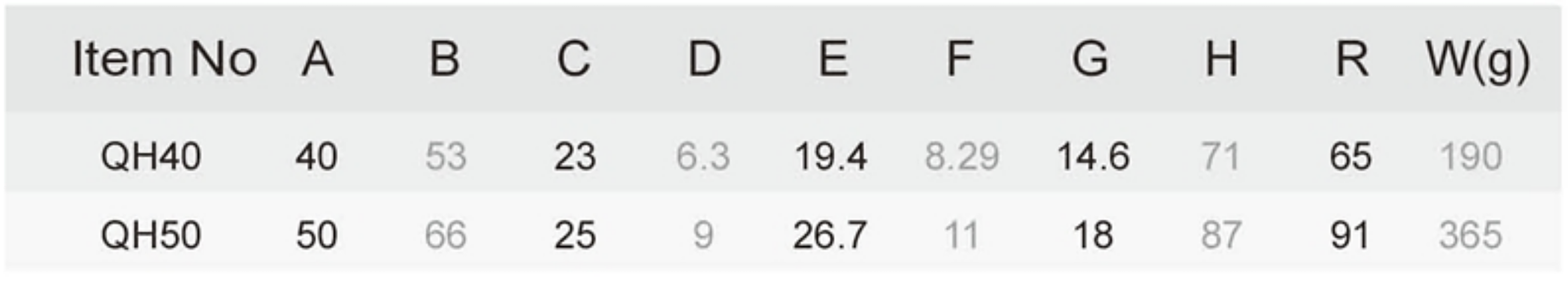

Specification Table - QH Series

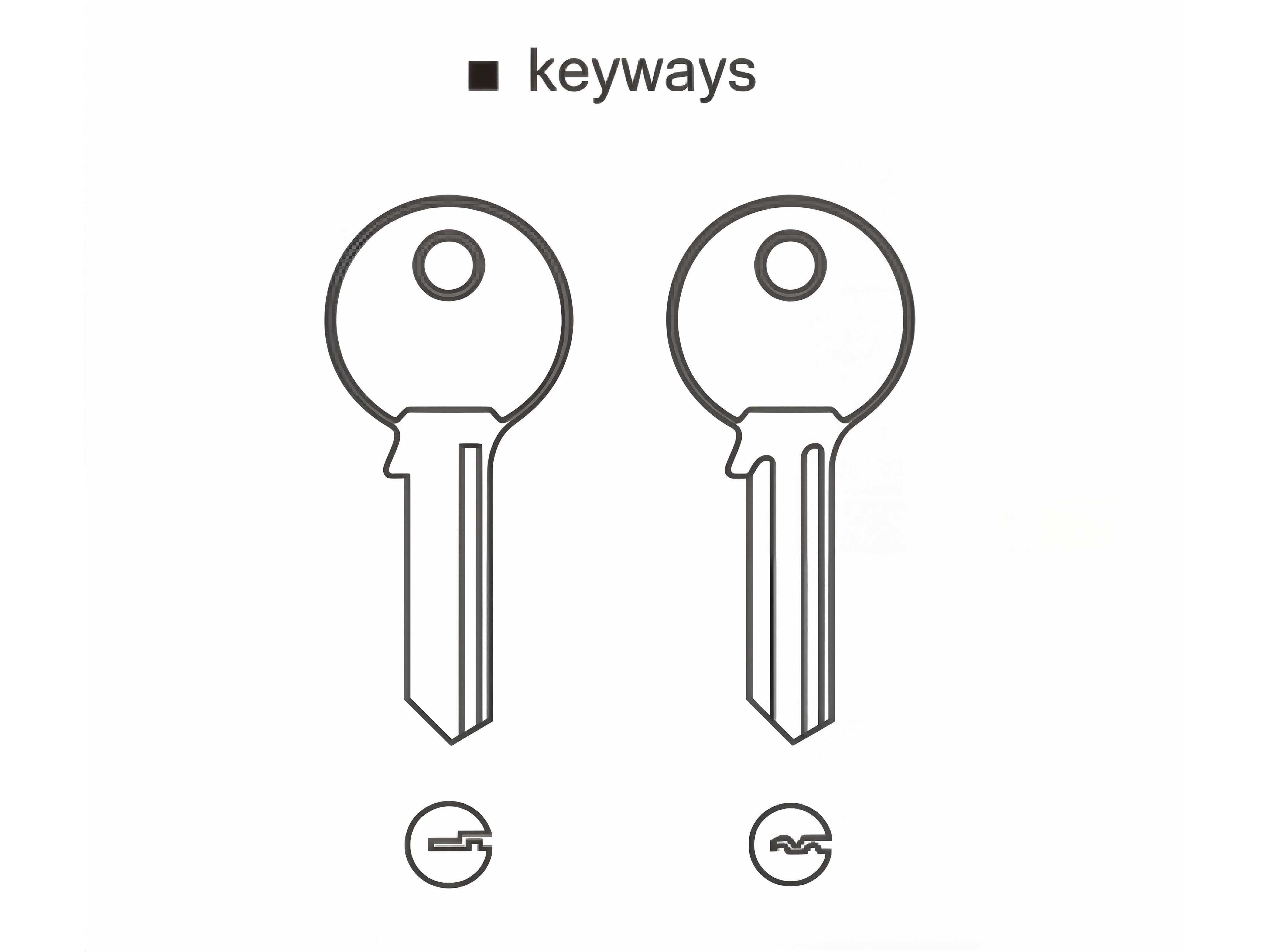

Key Ways Configuration
Product Overview
Premium padlock with solid brass body and cylinder, featuring hardened shackle with all angles chamfered for smooth operation and weatherproof construction for outdoor durability
- Solid Brass Body
- Solid Brass Cylinder
- Hardened Shackle
- All angles of lock-body are chamfered
- Weatherproof
Technical Specifications
| Item No | A | B | C | D | E | F | G | H | W(g) | R |
|---|---|---|---|---|---|---|---|---|---|---|
| QH40 | 40 | 53 | 23 | 6.3 | 19.4 | 8.29 | 14.6 | 71 | 190 | 65 |
| QH50 | 50 | 66 | 25 | 9 | 26.7 | 11 | 18 | 87 | 365 | 91 |
* All dimensions are in millimeters (mm). Weight is in grams (g).
