Rectangular Brass Padlock with Armored-steel Jacket
Premium solid brass padlock with weather-resistant finish

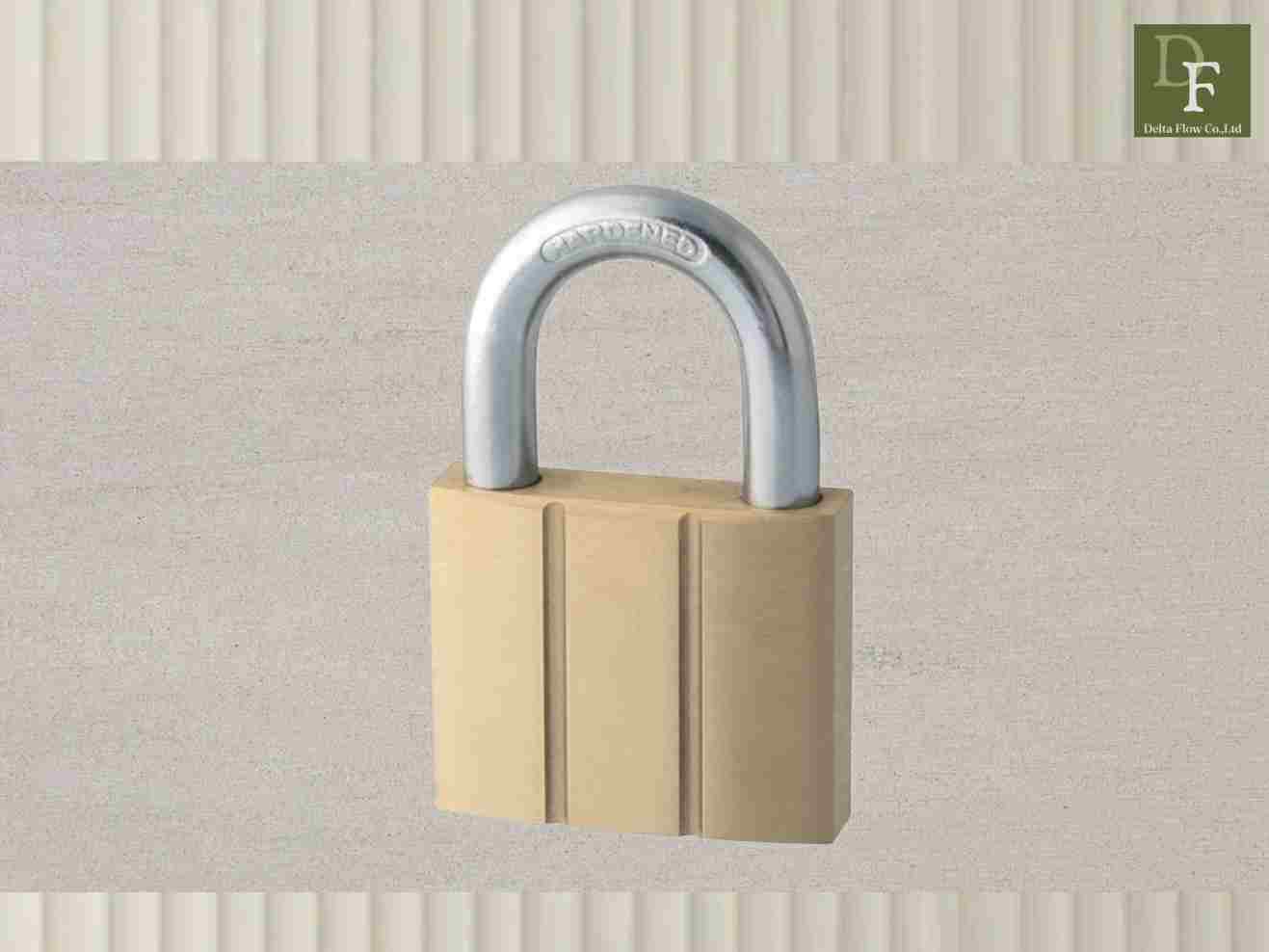

Product Photo

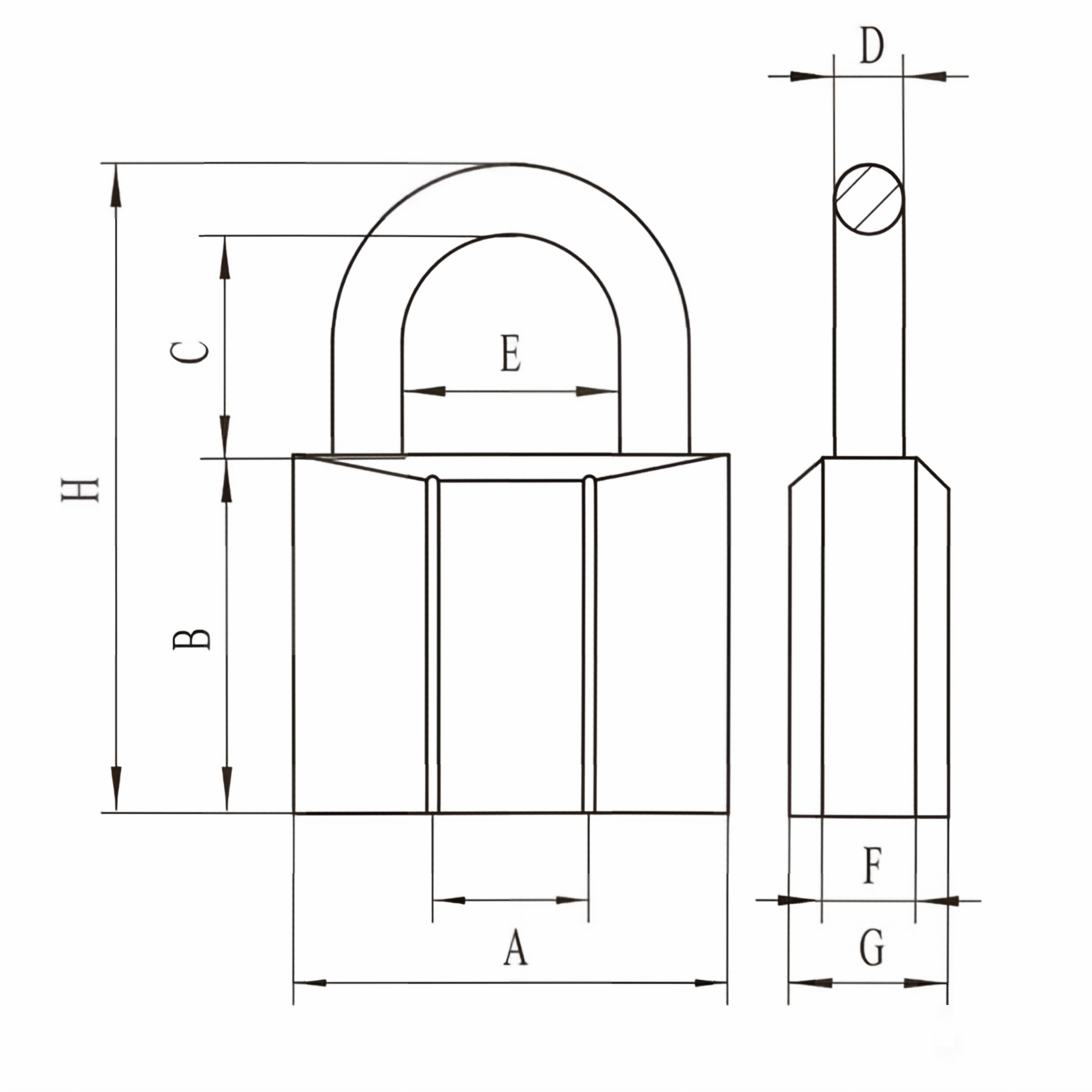

Technical Dimension Diagram

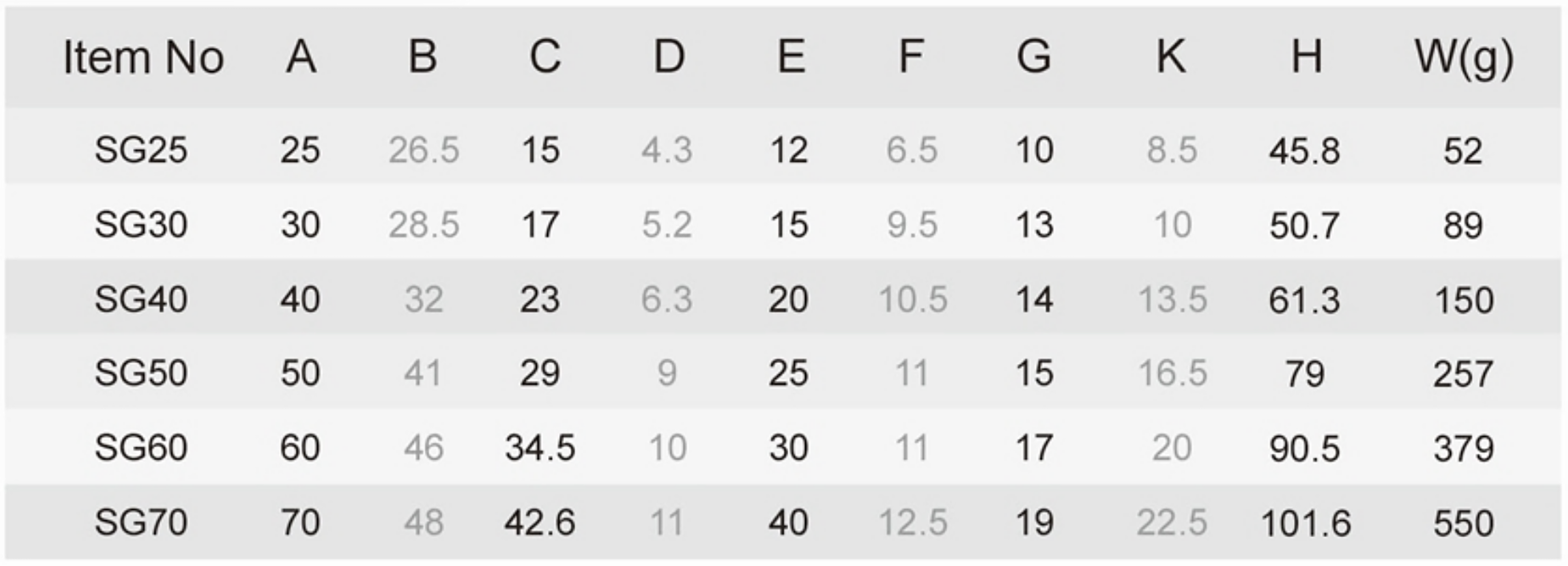

Specification Table - SG Series

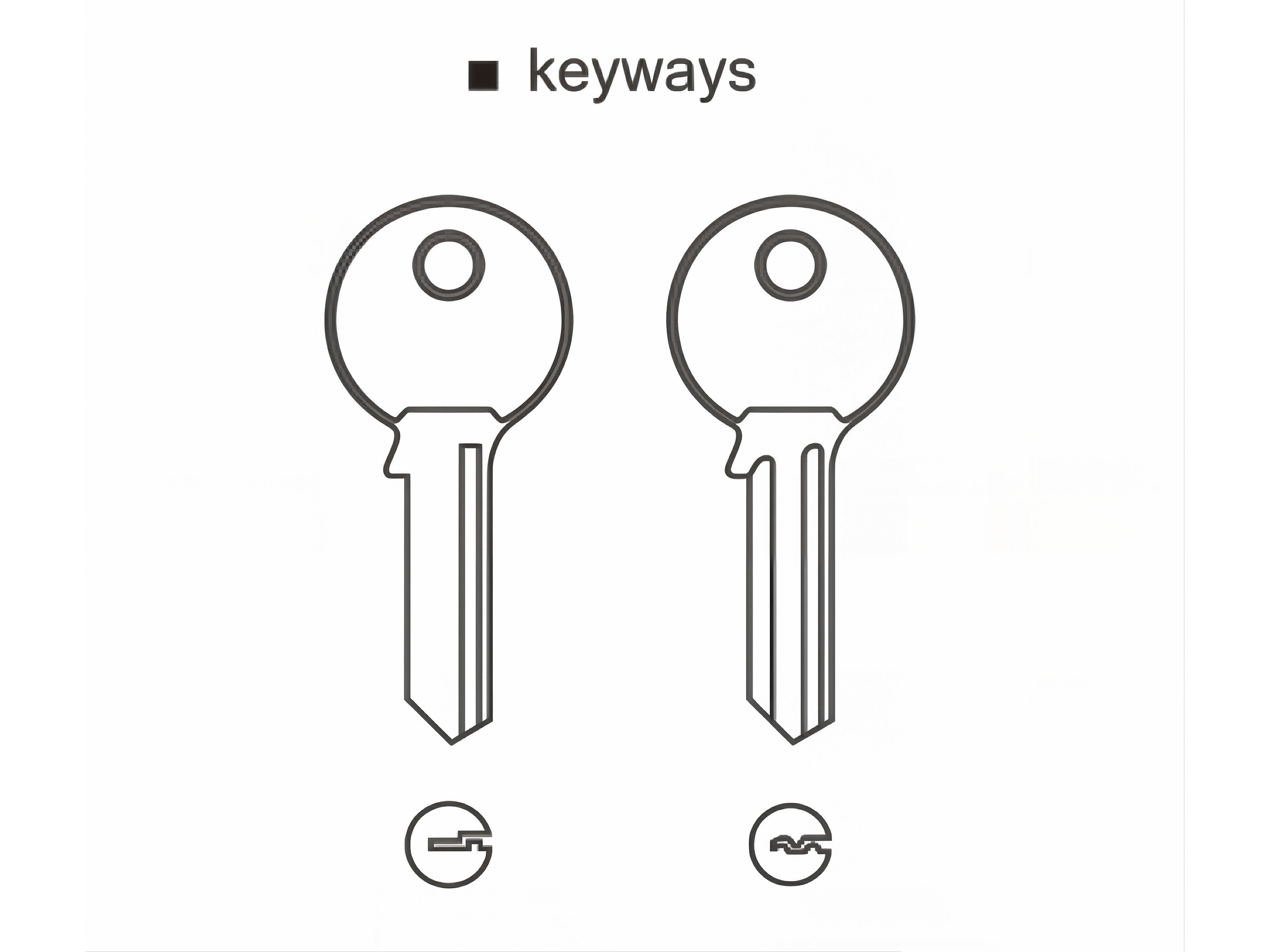

Key Ways Configuration
Product Overview
Premium padlock with solid brass body and cylinder, featuring hardened shackle with all angles chamfered for smooth operation and weatherproof construction for outdoor durability
- Solid Brass Body
- Solid Brass Cylinder
- Hardened Shackle
- All angles of lock-body are chamfered
- Weatherproof
Technical Specifications
| Item No | A | B | C | D | E | F | G | H | W(g) |
|---|---|---|---|---|---|---|---|---|---|
| SG25 | 25 | 20 | 12 | 3.5 | 10 | 6.5 | 9 | 38 | 45 |
| SG30 | 30 | 24 | 14 | 4 | 12 | 7.5 | 10 | 45 | 65 |
| SG40 | 40 | 30 | 18 | 5 | 16 | 9 | 12 | 58 | 95 |
| SG50 | 50 | 36 | 22 | 6 | 20 | 10.5 | 14 | 70 | 135 |
| SG60 | 60 | 42 | 26 | 7 | 24 | 12 | 16 | 82 | 185 |
| SG70 | 70 | 48 | 30 | 8 | 28 | 13.5 | 18 | 95 | 245 |
* All dimensions are in millimeters (mm). Weight is in grams (g).
