Cross-key Brass Padlock
Solid brass padlock with cross-key design for reliable security applications
Product Photo

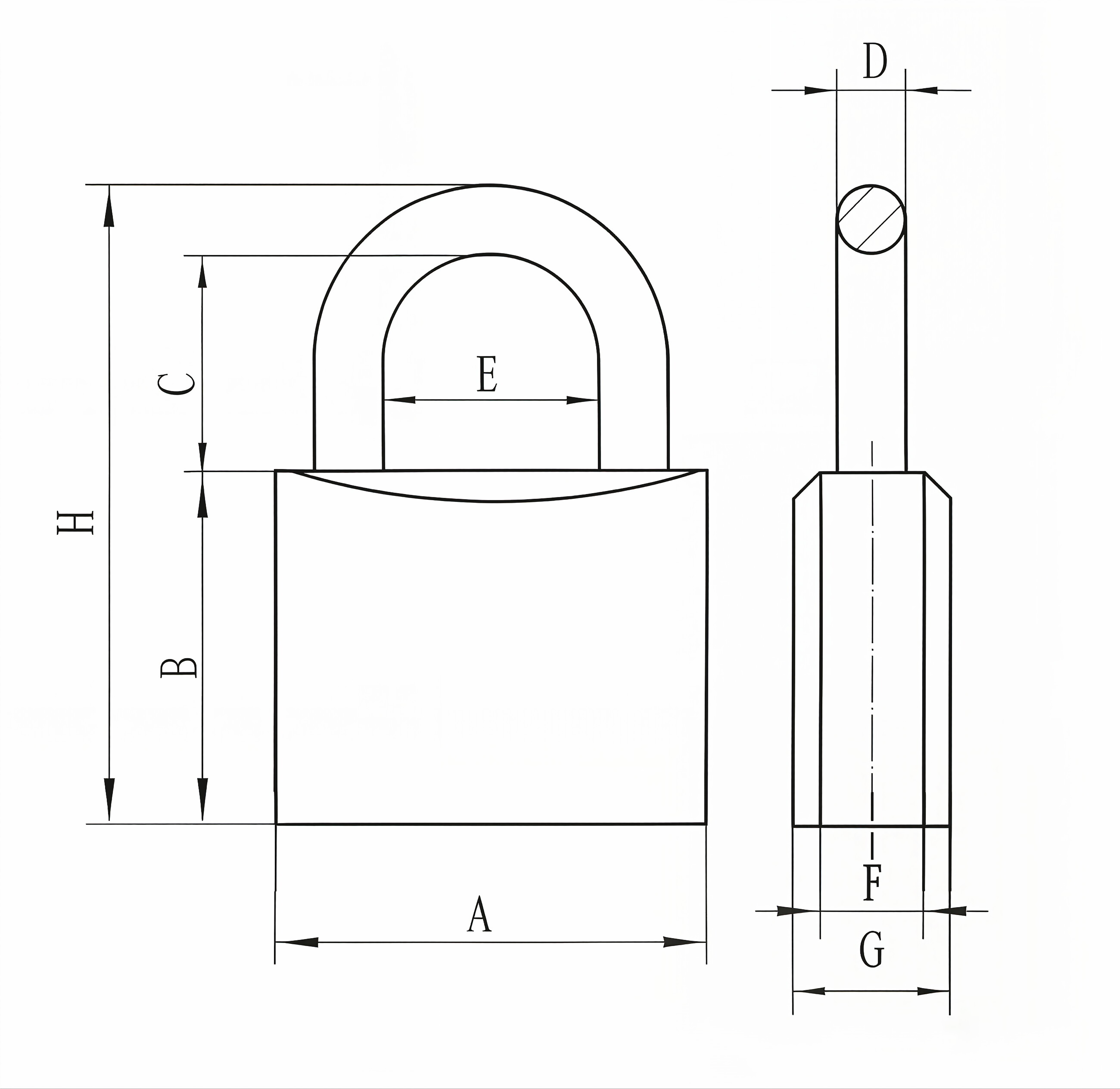

Technical Dimension Diagram

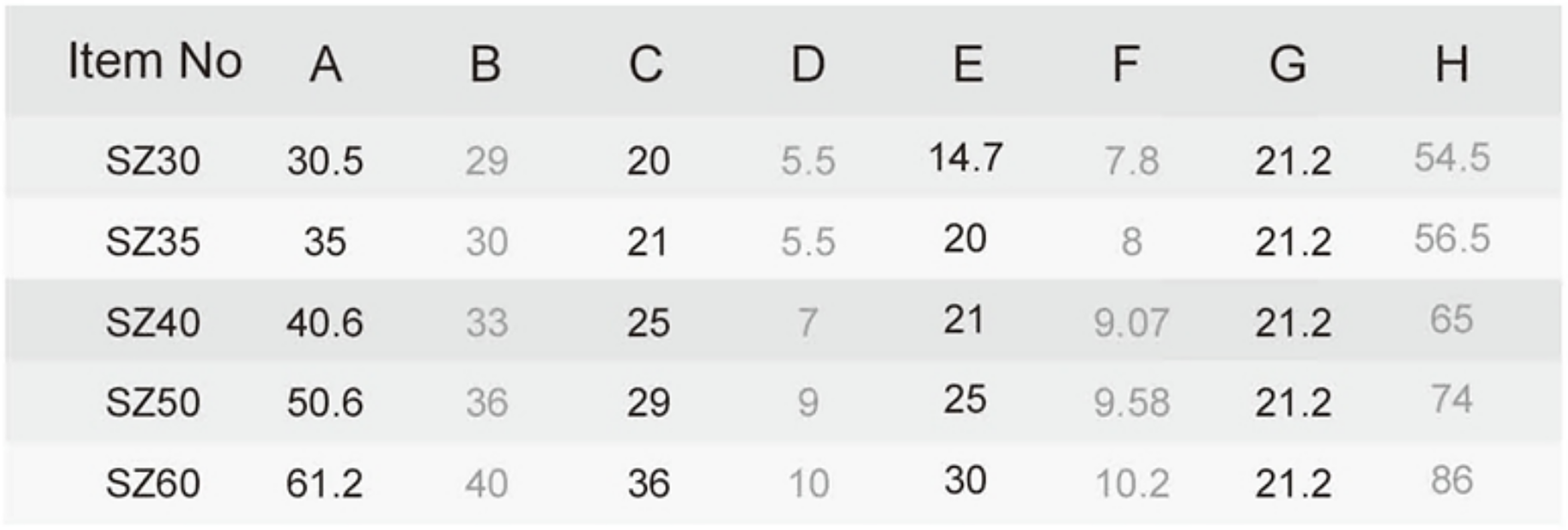

Specification Table - SZ Series

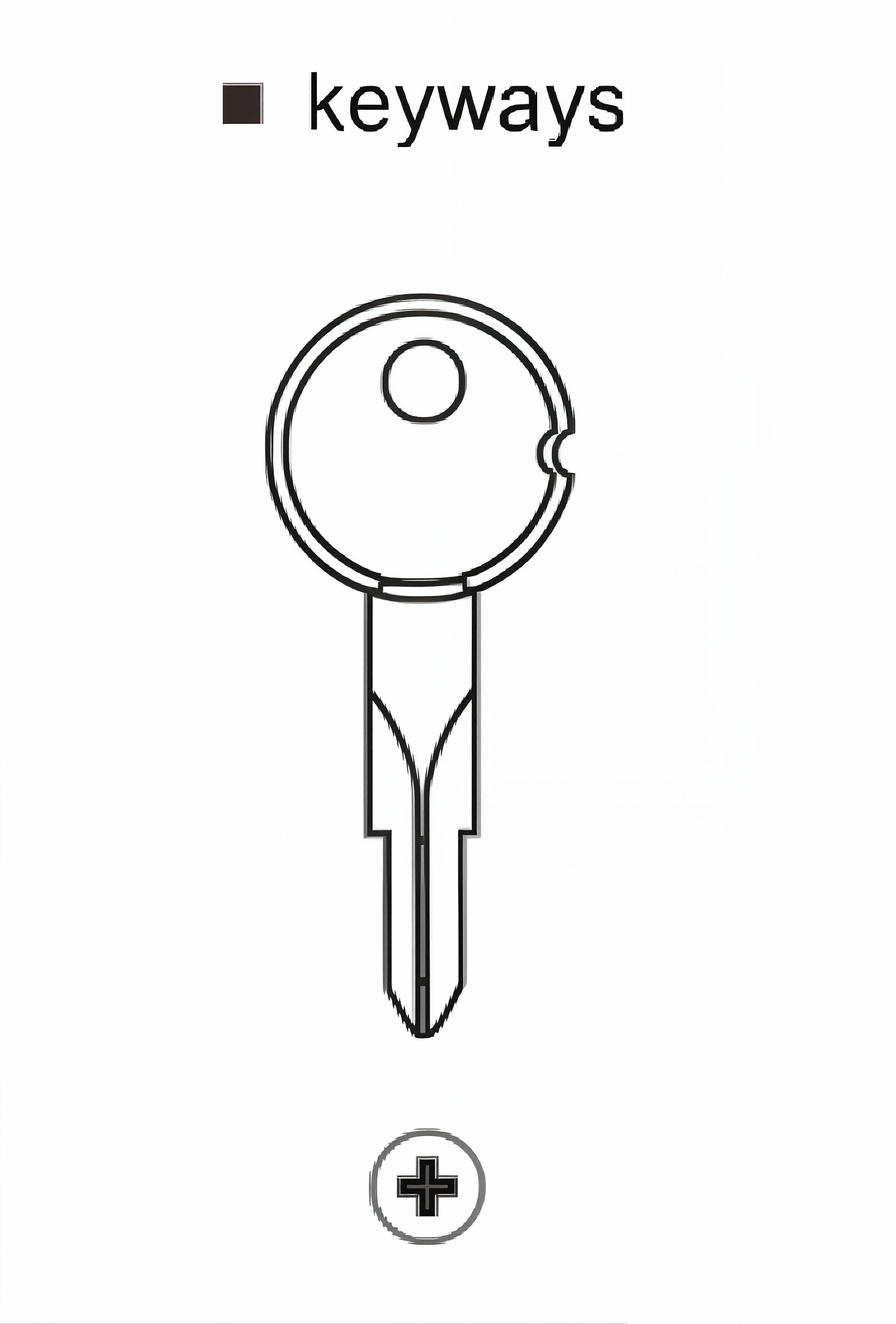

Key Ways Configuration
Product Overview
Solid brass padlock with distinctive cross-key design, solid brass body, brass internal pins, double-locking bolts, includes 3 pcs Cross iron keys.
Technical Specifications
| Item No | A | B | C | D | E | F | G | H | Pins | W(g) |
|---|---|---|---|---|---|---|---|---|---|---|
| SZ30 | 30.5 | 29 | 20 | 5.5 | 14.7 | 7.8 | 21.2 | 54.5 | 4 | 95 |
| SZ35 | 35 | 30 | 21 | 5.5 | 20 | 8 | 21.2 | 56.5 | 4 | 115 |
| SZ40 | 40.6 | 33 | 25 | 7 | 21 | 9.07 | 21.2 | 65 | 5 | 165 |
| SZ50 | 50.6 | 36 | 29 | 9 | 25 | 9.58 | 21.2 | 74 | 5 | 245 |
| SZ60 | 61.2 | 40 | 36 | 10 | 30 | 10.2 | 21.2 | 86 | 6 | 385 |
* All dimensions are in millimeters (mm). Weight is in grams (g).
