Combination Brass Padlock (Square-shape)
4 digits combination brass padlock
Product Photo

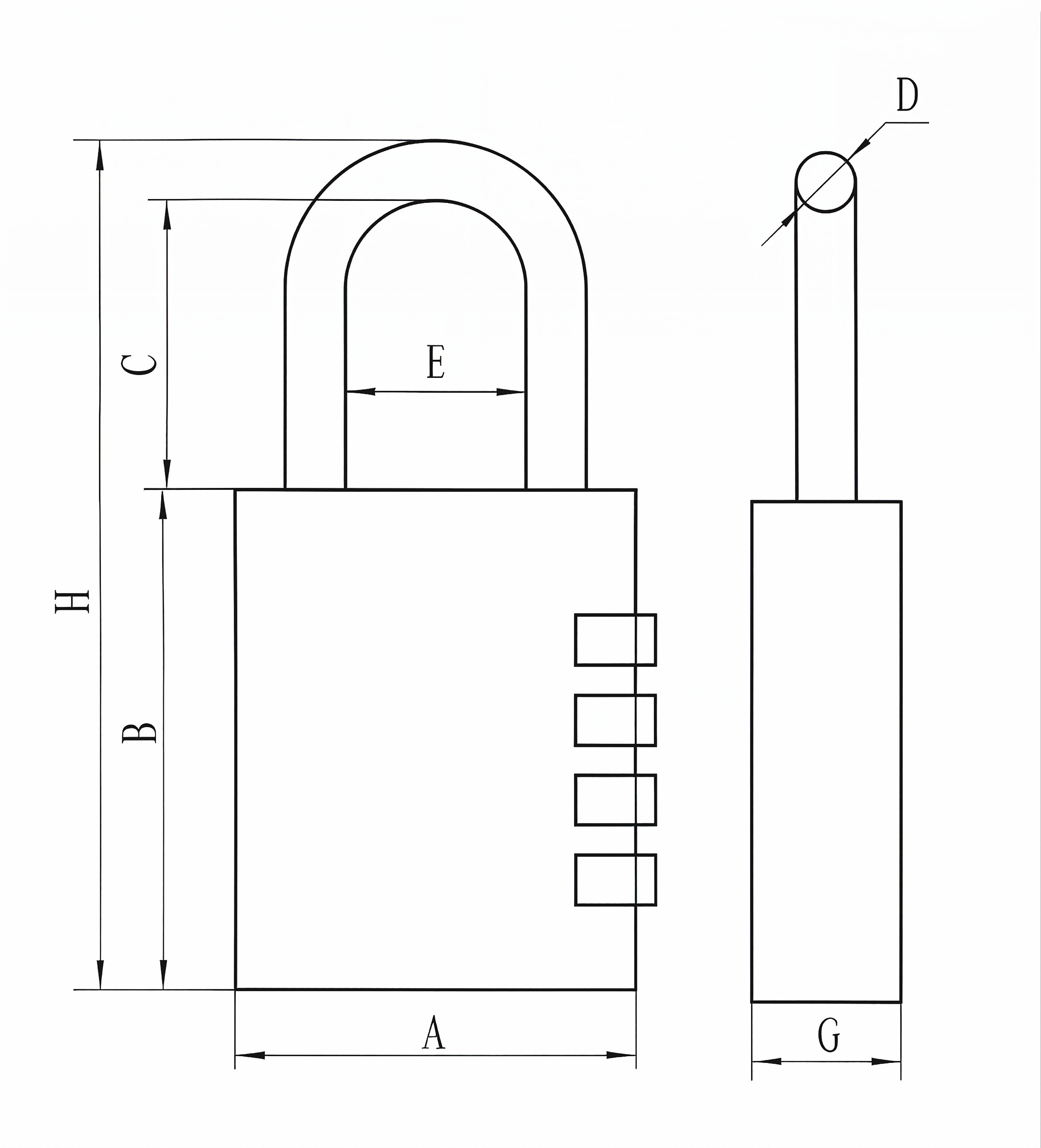

Technical Dimension Diagram

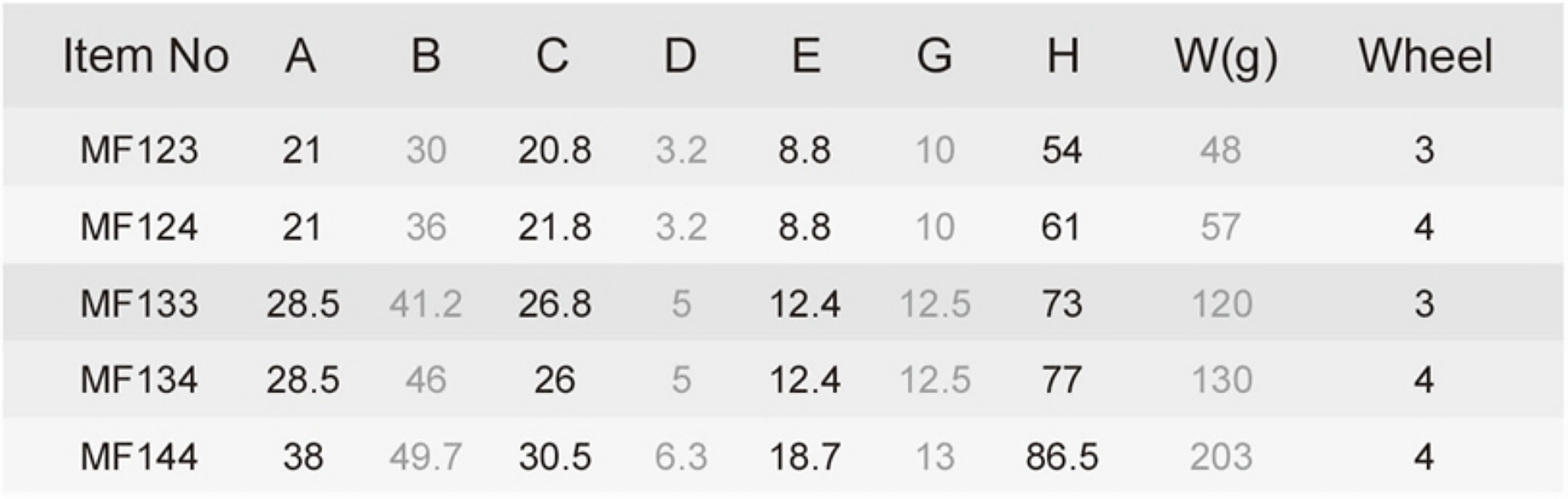

Specification Table - MF Series
Product Overview
Earth-tone brown combination padlock for rustic applications, laminated Steel lock bodies, extra long-time shackle-electroplating, single-locking bolt, brass internal pins/wheels, resettable codes.
Technical Specifications
| Item No | A | B | C | D | E | G | H | W(g) |
|---|---|---|---|---|---|---|---|---|
| MF123 | 21 | 30 | 20.8 | 3.2 | 8.8 | 10 | 54 | 48 |
| MF124 | 21 | 36 | 21.8 | 3.2 | 8.8 | 10 | 61 | 57 |
| MF133 | 28.5 | 41.2 | 26.8 | 5 | 12.4 | 12.5 | 73 | 120 |
| MF134 | 28.5 | 46 | 26 | 5 | 12.4 | 12.5 | 77 | 130 |
| MF144 | 38 | 49.7 | 30.5 | 6.3 | 18.7 | 13 | 86.5 | 203 |
* All dimensions are in millimeters (mm). Weight is in grams (g).
