Combination Brass Padlock (Arc-shape)
4 digits combination brass padlock

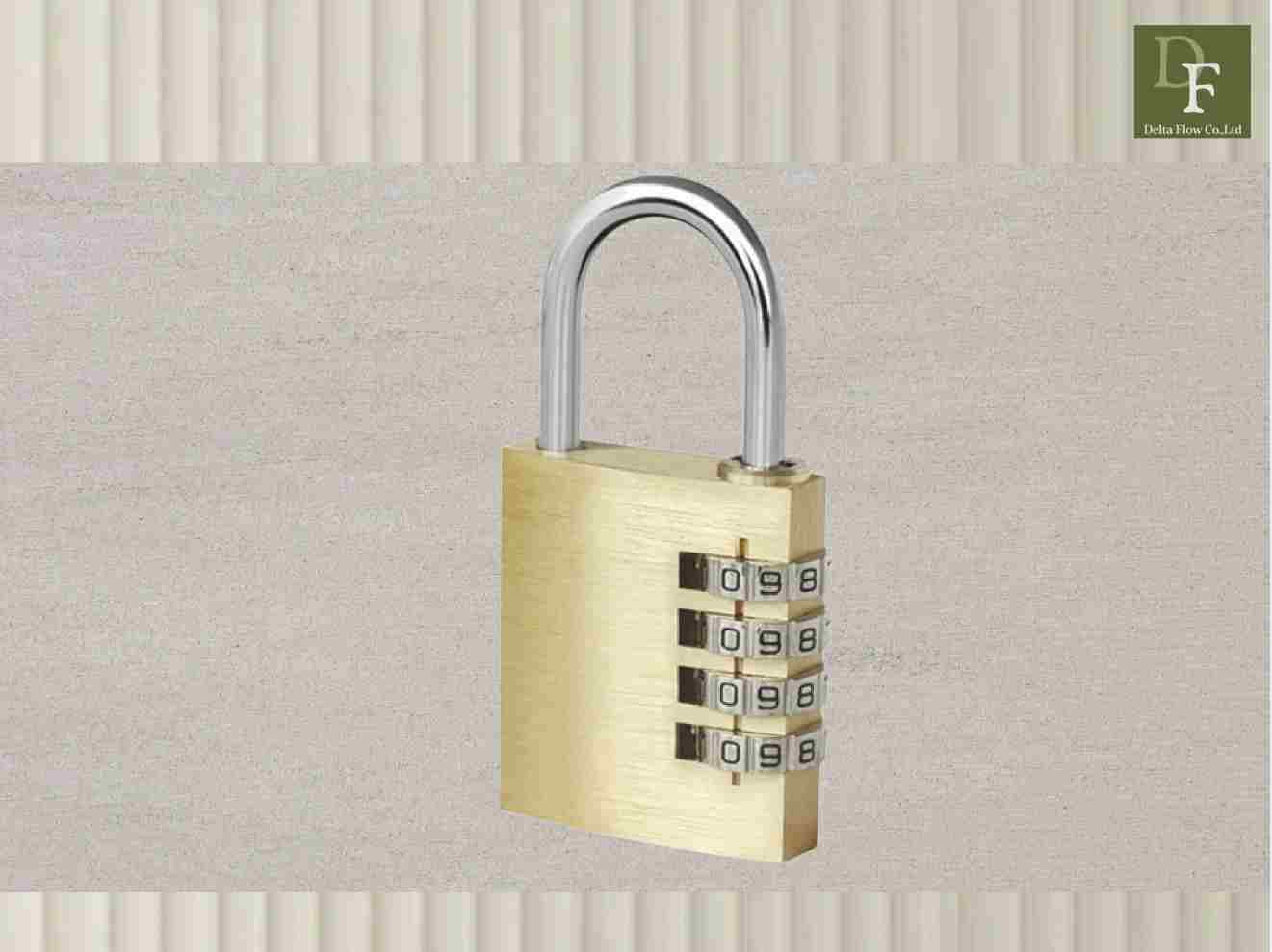

Product Photo

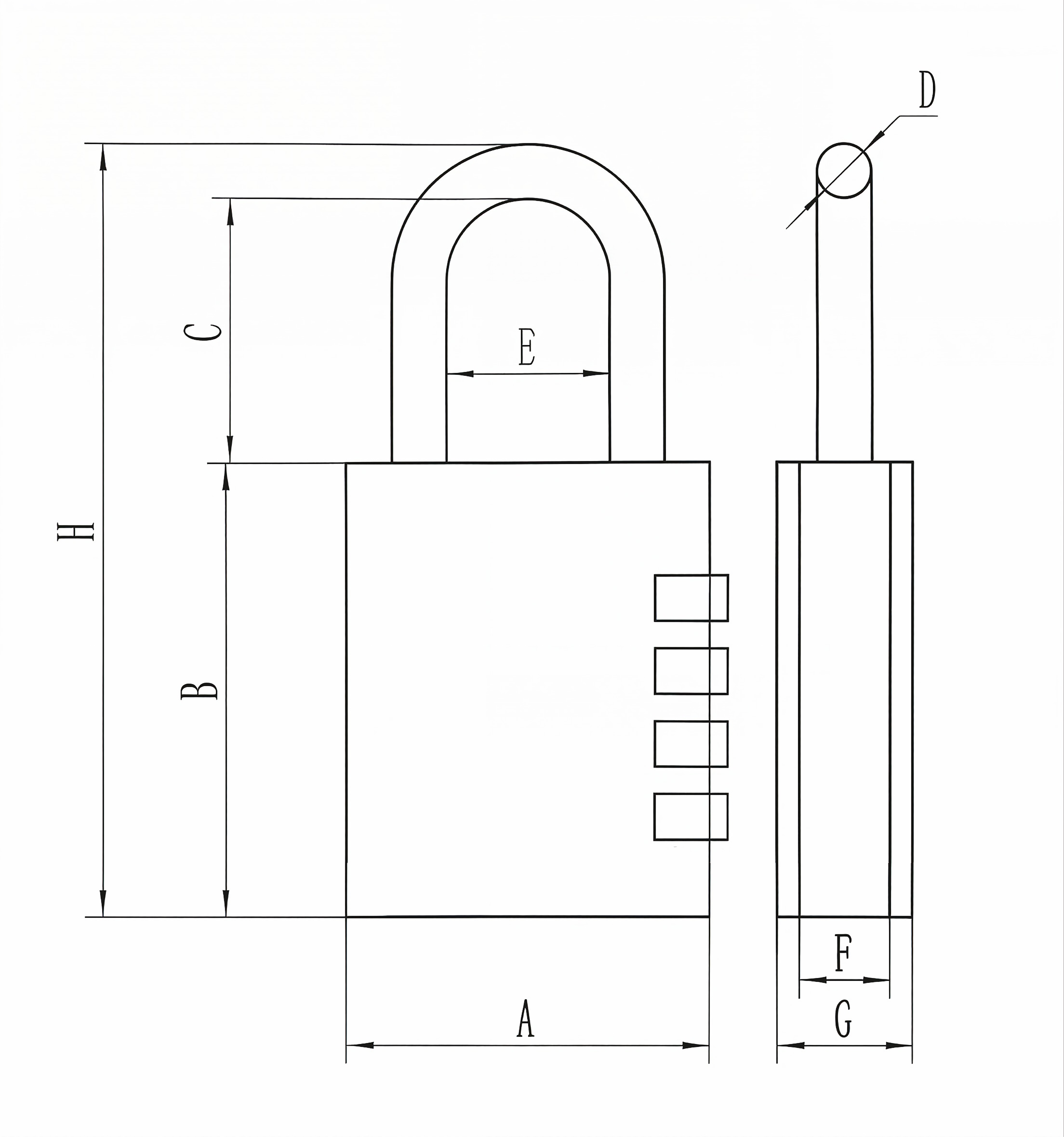

Technical Dimension Diagram

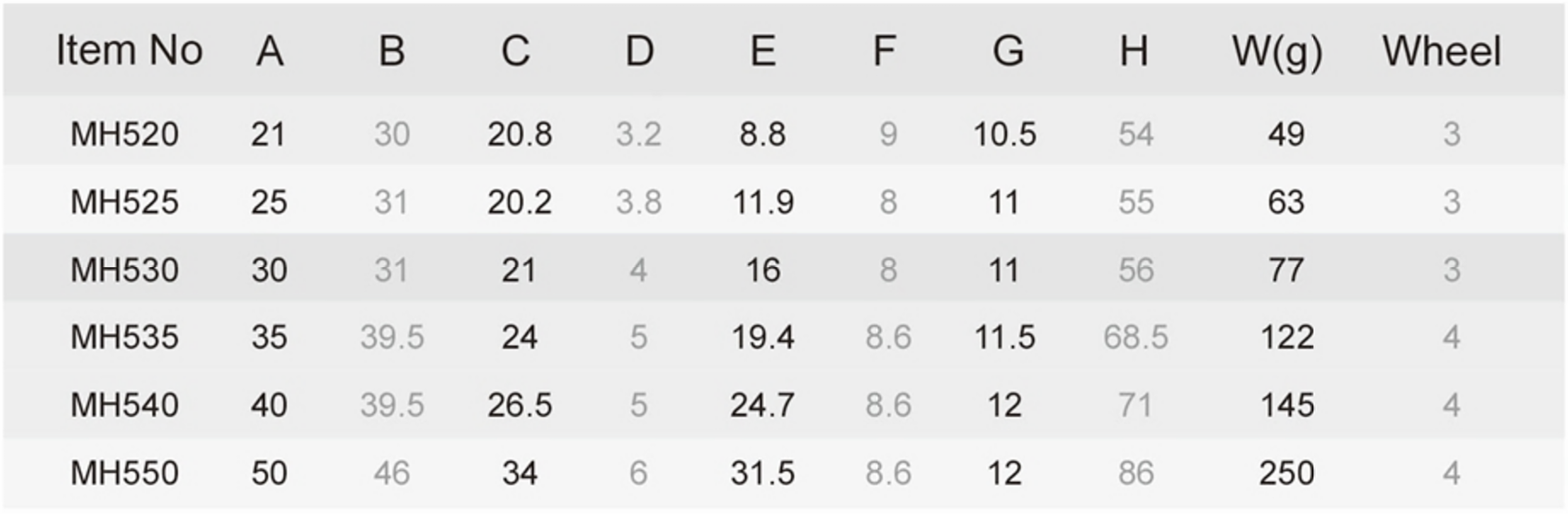

Specification Table - MH Series
Product Overview
Neutral gray combination padlock for corporate environments, solid brass lock bodies, extra long-time shackle-electroplating, single-locking bolt, brass internal pins/wheels, resettable codes.
Technical Specifications
| Item No | A | B | C | D | E | F | G | H | W(g) |
|---|---|---|---|---|---|---|---|---|---|
| MH520 | 21 | 30 | 20.8 | 3.2 | 8.8 | 9 | 10.5 | 54 | 49 |
| MH525 | 25 | 31 | 20.2 | 3.8 | 11.9 | 8 | 11 | 55 | 63 |
| MH530 | 30 | 31 | 21 | 4 | 16 | 8 | 11 | 56 | 77 |
| MH535 | 35 | 39.5 | 24 | 5 | 19.4 | 8.6 | 11.5 | 68.5 | 122 |
| MH540 | 40 | 39.5 | 26.5 | 5 | 24.7 | 8.6 | 12 | 71 | 145 |
| MH550 | 50 | 46 | 34 | 6 | 31.5 | 8.6 | 12 | 86 | 250 |
* All dimensions are in millimeters (mm). Weight is in grams (g).
