Combination Aluminum Padlock (Arc-shape)
4 digits combination brass padlock

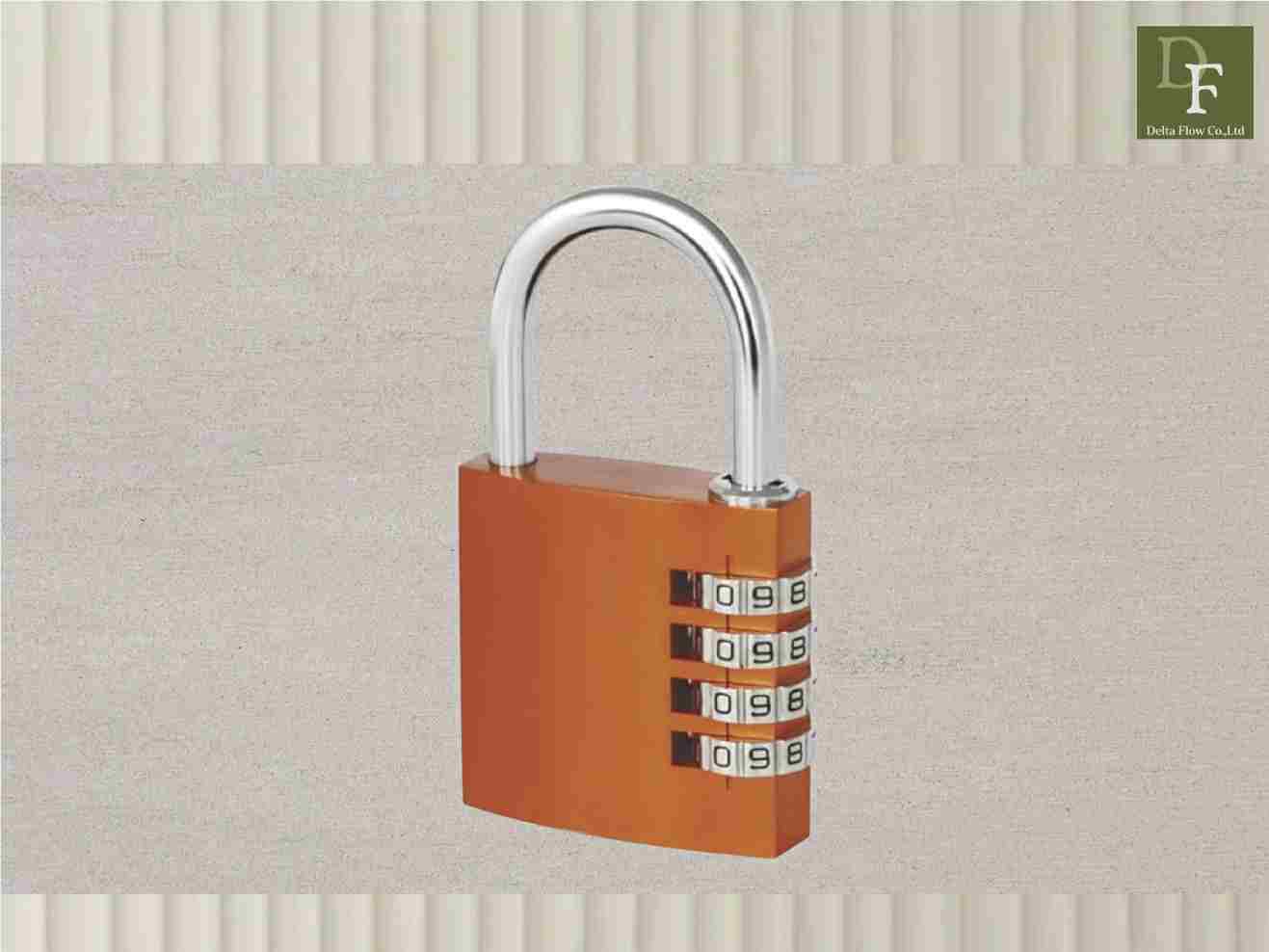

Product Photo

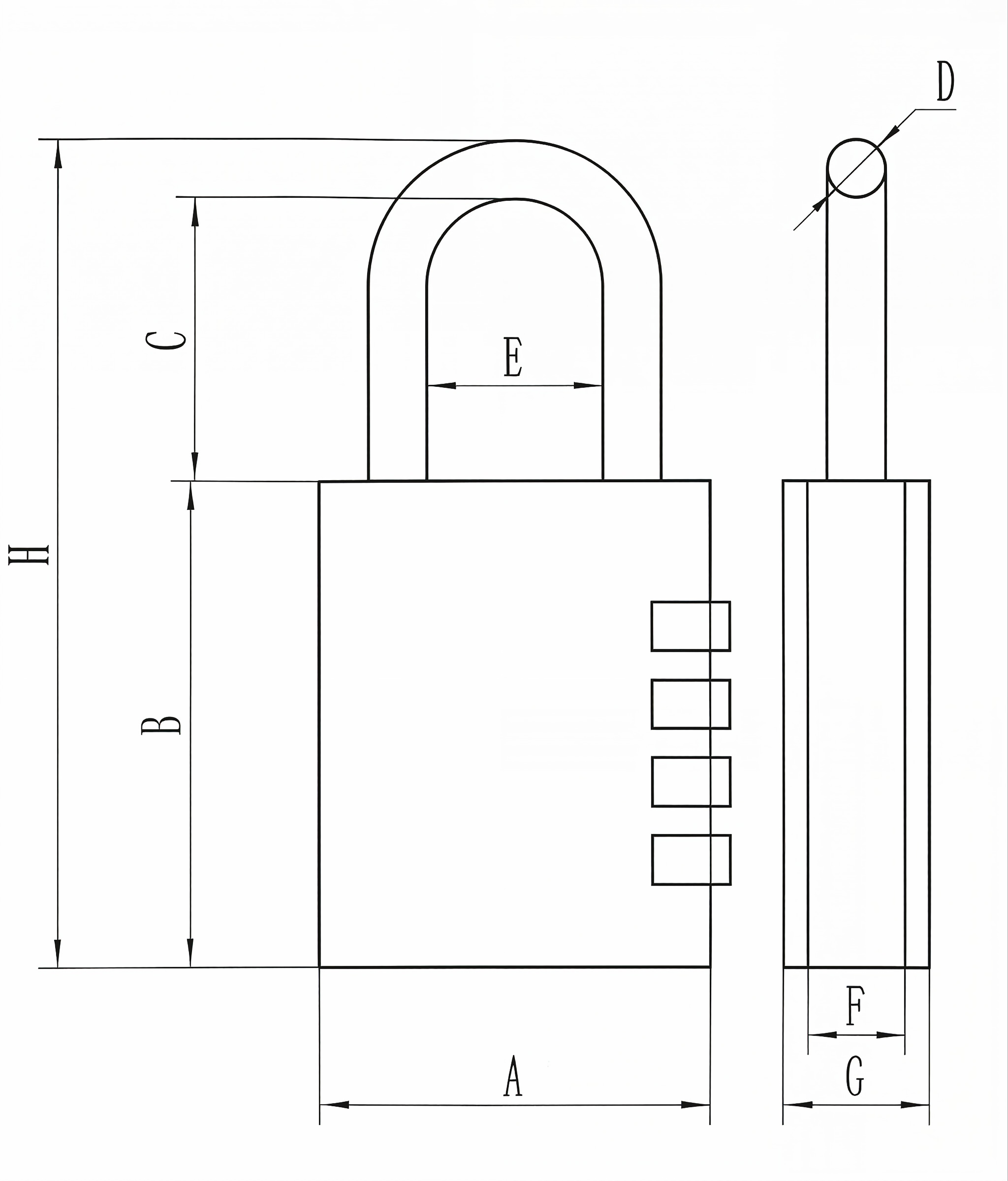

Technical Dimension Diagram

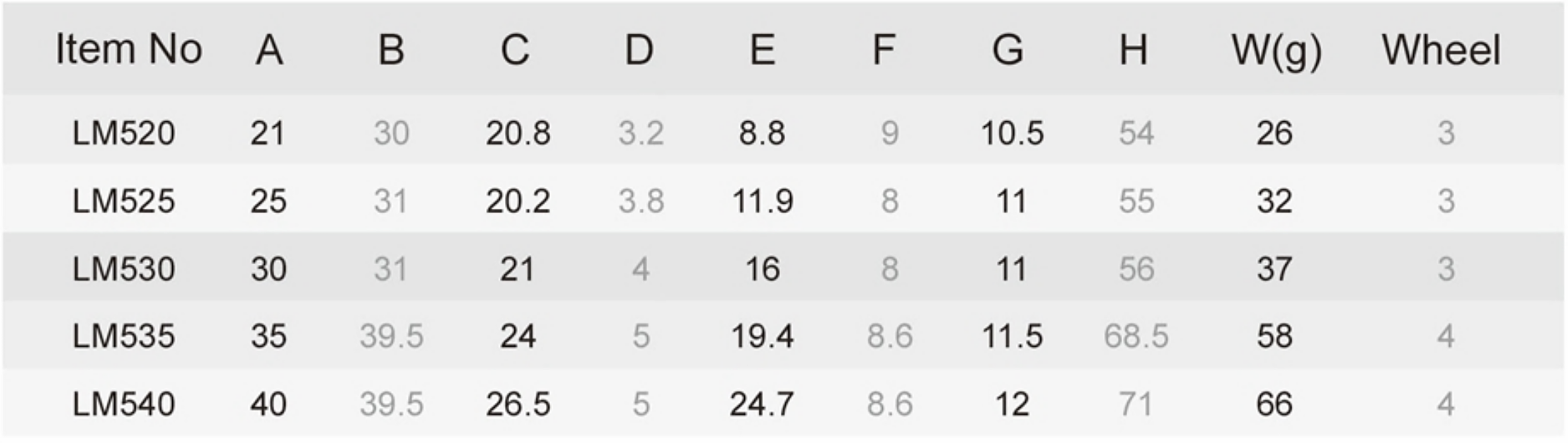

Specification Table - LM Series
Product Overview
Modern two-tone combination padlock with contemporary styling, brass lock bodies, anodized lock-body, various color options, brass internal pins/wheels, resettable codes.
Technical Specifications
| Item No | A | B | C | D | E | F | G | H | W(g) |
|---|---|---|---|---|---|---|---|---|---|
| LM520 | 21 | 30 | 20.8 | 3.2 | 8.8 | 9 | 10.5 | 54 | 26 |
| LM525 | 25 | 31 | 20.2 | 3.8 | 11.9 | 8 | 11 | 55 | 32 |
| LM530 | 30 | 31 | 21 | 4 | 16 | 8 | 11 | 56 | 37 |
| LM535 | 35 | 39.5 | 24 | 5 | 19.4 | 8.6 | 11.5 | 68.5 | 58 |
| LM540 | 40 | 39.5 | 26.5 | 5 | 24.7 | 8.6 | 12 | 71 | 66 |
* All dimensions are in millimeters (mm). Weight is in grams (g).
