Combination Aluminum Padlock
Artisan antique copper finished padlock for heritage projects

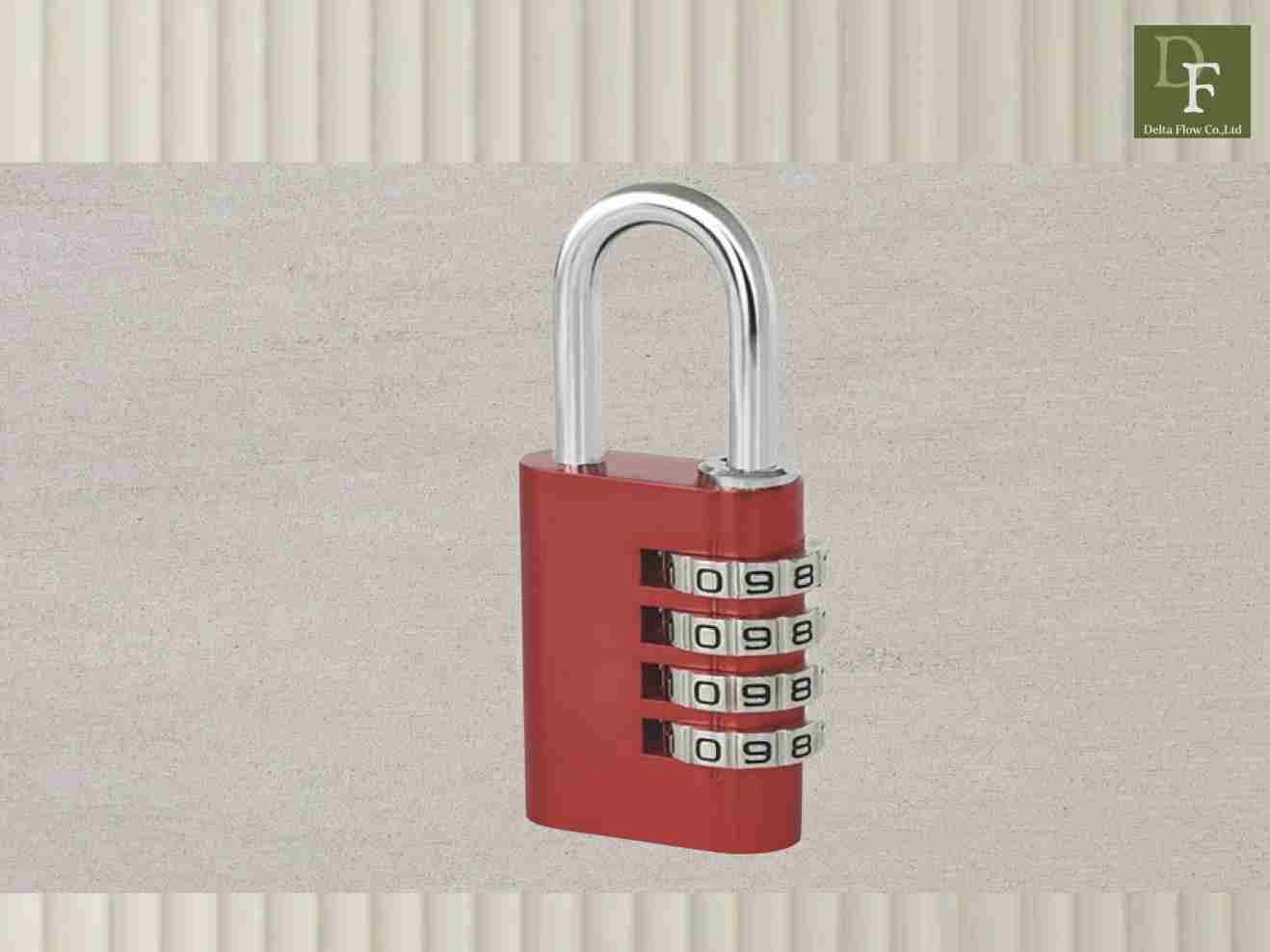

Product Photo

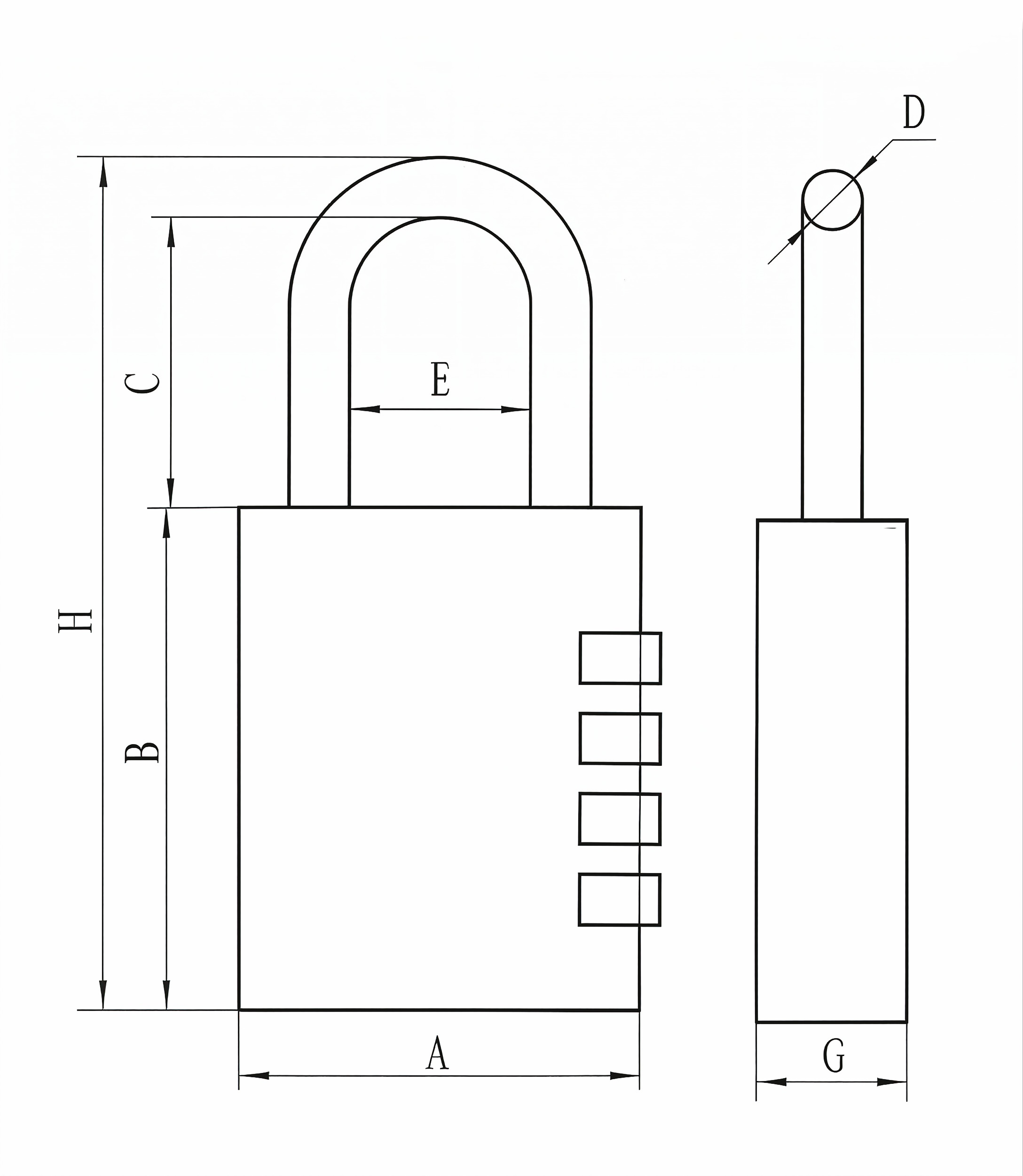

Technical Dimension Diagram
Specification Table - LM Series
Color Options - 7 Colors Available
Product Overview
Artisan antique copper finished combination padlock for heritage projects, solid brass construction, anodized lock-body, various color options, brass internal pins/wheels, resettable codes.

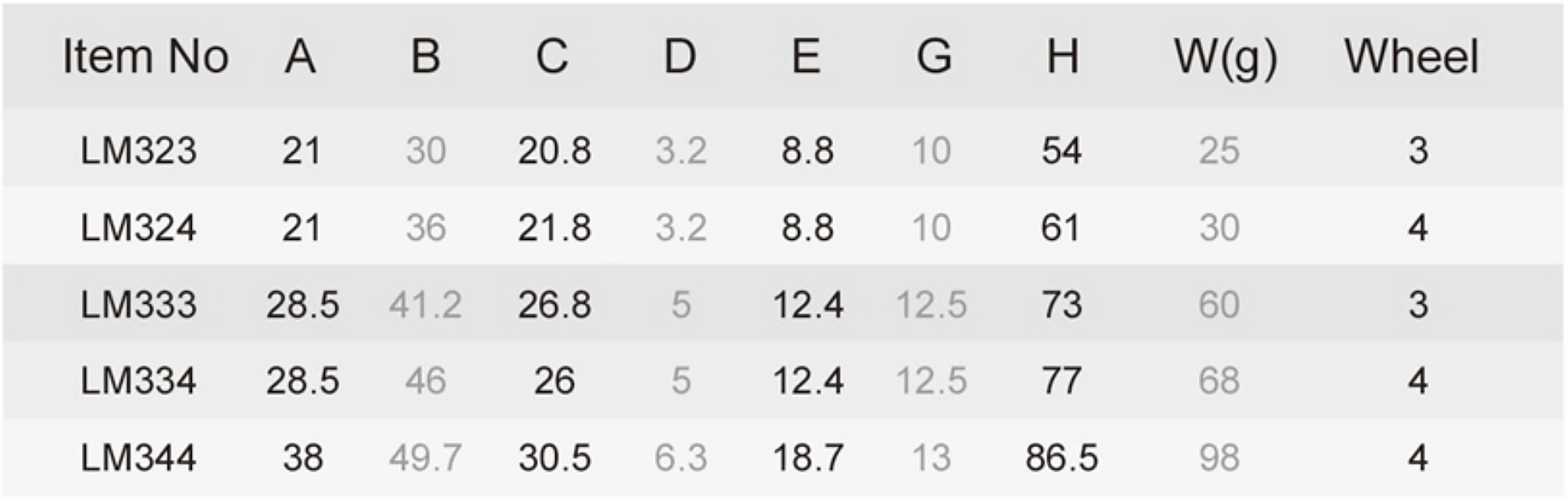

Technical Specifications
| Item No | A | B | C | D | E | G | H | W(g) |
|---|---|---|---|---|---|---|---|---|
| LM323 | 21 | 30 | 20.8 | 3.2 | 8.8 | 10 | 54 | 25 |
| LM324 | 21 | 36 | 21.8 | 3.2 | 8.8 | 10 | 61 | 30 |
| LM333 | 28.5 | 41.2 | 26.8 | 5 | 12.4 | 12.5 | 73 | 60 |
| LM334 | 28.5 | 46 | 26 | 5 | 12.4 | 12.5 | 77 | 68 |
| LM344 | 38 | 49.7 | 30.5 | 6.3 | 18.7 | 13 | 86.5 | 98 |
* All dimensions are in millimeters (mm). Weight is in grams (g).
